High Efficiency Three Cylinder Rotary Dryer
US$ 1,650 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Drum Drying Equipment
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3-200TPH Fluorspar Powder Dryer From ChinaUS$ 1,650 - 2,000MOQ: 1 Set -
Cyclone Dust Collector for Wood /dust Collector Price Yufeng BrandUS$ 40,000 - 560,000MOQ: 1 Set
-
Cyclone Dust Collector for WoodUS$ 40,000 - 560,000MOQ: 1 Set
-
Cyclone Dust Collector Used for Drying Processing PlantUS$ 40,000 - 560,000MOQ: 1 Set
-
New Industrial Cyclone Dust Collector /sawdust MachineUS$ 50,000 - 560,000MOQ: 1 Set
Condition
New
Type
Drum Drying Equipment
Place of Origin
Henan, China
Brand Name
YUFENG
Model Number
Models
Voltage
380V
Power(W)
according to different models
Dimension(L*W*H)
Variable
Weight
according to different models
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Professional silica sand rotary dryer

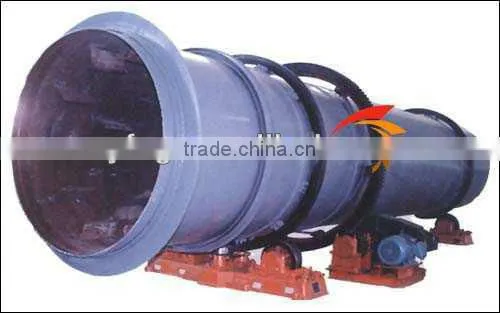

silica sand rotary dryer is mainly used in building materials, metallurgy, chemical plant, cement plant for drying of limestone slag, coal powder, slag, clay stone and so on. This dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring. The silica sand rotary dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.
The Rotary dryer has been optimized a lot, which possesses the following characteristics:
1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2. According to the characteristics of different fertilizers, we have arranged the second granulation zone reasonably so as to improve the granulation effect.
3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption.
4. Temperature induction monitor, uniform vibration and airproof setting, which improve performance and productivity efficiently.
5. The assorted combustion furnace is a type of energy-efficient and has the characteristics of smaller area, easy regulation and equipped with greenhouse.
2. According to the characteristics of different fertilizers, we have arranged the second granulation zone reasonably so as to improve the granulation effect.
3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption.
4. Temperature induction monitor, uniform vibration and airproof setting, which improve performance and productivity efficiently.
5. The assorted combustion furnace is a type of energy-efficient and has the characteristics of smaller area, easy regulation and equipped with greenhouse.
Technical Parameters:
| Type (mm) | Gradient (%) | Rotational speed (r/min) | Inlet air tempreture() | power (KW) | Pro-capacity (t/h) | weight (T) |
| Φ600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
| Φ800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
| Φ800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
| Φ1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
| Φ1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
| Φ1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
| Φ1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
| Φ1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
| Φ2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
| Φ2200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53 |
| Φ2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
| Φ2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
| Φ3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
| Φ3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 35-65 | 104.9 |
| Φ3600x29000 | 3-5 | 1.3-5 | ≤800 | 110 | 40-70 | 150 |
Complete sets of equipment supply list:
- rotary dryer: main rotary body,before roller ring,after roller ring,gear,pinion,input and output parts,reducer,motor, foundation bolt
- layout plan drawing,foundation drawing of each machine
No |
Name |
Material |
Qty |
Remark |
1 |
Cyclinder |
Q345 |
1 |
Thickness:18mm |
2 |
Rolling belt plate |
A3 |
1 |
|
3 |
Bast plate for big gear wheel |
A3 |
1 |
|
4 |
big gear wheel |
GB45 |
1 |
inblock cast, heat treatment |
5 |
Pinion |
GB45 |
1 |
inblock cast, heat treatment |
6 |
riding wheel |
GB45 |
4 |
inblock cast |
7 |
catch wheel |
GB45 |
2 |
inblock cast |
8 |
rolling ring |
GB45 |
2 |
inblock cast |
9 |
lifting blade |
10mm |
1 |
inblock cast |
10 |
Motor |
Yutong motor of Henan province |
1 |
|
11 |
Bearing |
Metallurgy bearing tile-roofed house |
1 |
|
If you have any other questions about our product or our company, you can contact Marcie through mobile: 008618236781826 or skype: driermachine.
...
