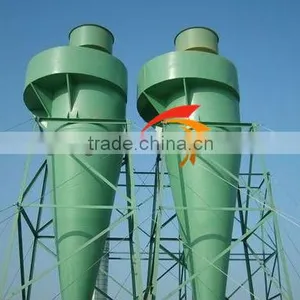

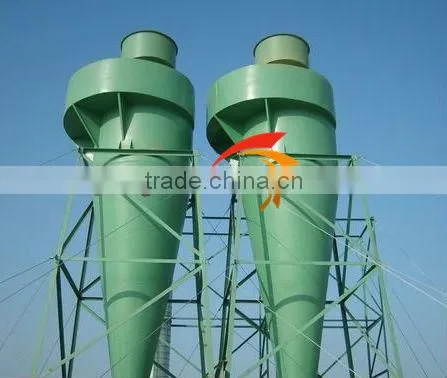

Cyclone dust collector used for drying processing plant
- 20 Set / Sets per Month
- China port
- T/T
- Best selling oil mist collection centrifugal oil mist collector for CNC machines
- Ventilation cleaning equipment, negative pressure cyclone dust collector
- LIVTER Factory High Power Wood Dust Collector Industrial Dust Sawdust Collector Engraving Machine Dust
- LIVTER Dust Collector Bag Industrial Woodworking Dust Collector Cyclone
- LIVTER Cyclone Dust Separator With Filter Bag Dust Collector Woodworking Wood Dust Collector
- LIVTER Industrial Cyclone Cartridge Dust Collector For Woodworking Machine
Product Details
Condition: | New | Type: | Other, cyclone dust collector | Efficiency: | 95% |
Place of Origin: | Henan, China | Brand Name: | YUFENG | Model Number: | 1000/1250/1500/1750/2000 |
Weight: | 1050/2050/3000/3550/4250 | Certification: | ISO9001:2008 | Warranty: | 2 years(except the easy damaged parts) |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Cyclone dust collectors
Cyclone dust collectors,applicable to dry granular non-fiber dust.The main characteristic is the tube body is a turbination,reducing the possibility of the dusty gas short circuit from tube body center.The cyclone dust collector also equipped with conical reflector screen,preventing two air from rolling up again the separated the dust,brought out by the increased flow,and improving the efficiency of dust collection .
cyclone dust collectors applicable to metallurgy,cast ,building materials,food materials,cement and so on,gathering dry ranular non-fiber dust and soot dust,can be used as recovered material equipment.
Main technical data
Spec.(mm) | Air volume (m³/h) | Inlet wind speed(m/s) | Resistance(pa) | Collection efficiency(%) | Weight(kg) |
Φ1000 | 7750-9450 | 18-22 | 890-1330 | 88-95 | 1050 |
Φ1250 | 11600-14200 | 18-22 | 960-1460 | 88-95 | 2050
|
Φ1500 | 16750-20450 | 18-22 | 980-1460 | 88-95 | 3000 |
Φ1750 | 23350-28500 | 18-22 | 980-1460 | 88-95 | 3550 |
Φ2000 | 30050-36700 | 18-22 | 980-1460 | 88-95 | 4250 |
...
