Yufeng Sand AAC Plant Advantages:
1. Applied Germany Ytong & Hess Group technology and combined with China innovation;
2. Cutting machine adopt frame shaking and cutting, which is most reliable designing;
3. Turning table realizing six-sides peeling successfully for aac block cake;
4. Fully automatic & Semi automatic designing;
5. Siemens Brand Motor & PLC Control;
6. Japan YUKEN hydraulic system, Germany Schneider switch;
7. China AAC Association Group best quality and scientific designing;
8. Equipments lifetime maintaining service.
Sand AAC Plant Introduction
Autoclaved Aerated Concrete (AAC) Block, also called Light Block, used siliceous (fly ash, sand, slag) and calcareous (lime & cement) as the main raw materials, which through the process of batching, pouring, curing, cutting, autoclaving, separating and packing to make into the final products. It is new type & environmental construction material and widely used for industry and civil building construction. AAC Block is the most mature technology of production and application in the worldwide nowadays.
Sand AAC Plant Advantages & Features
1. Light Weight: 300~800kg/m3
2. High Intensity: 3.5~10.0Mpa
3. Good Thermal Insulation Property: 0.1~0.20W/(m · k)
4. Keeping Temperature, Heat Resistant, Fireproof
5. Good Sound Insulation
6. Earthquake Proof
7. Good Machinability
8. Conveniently Mechanized Construction

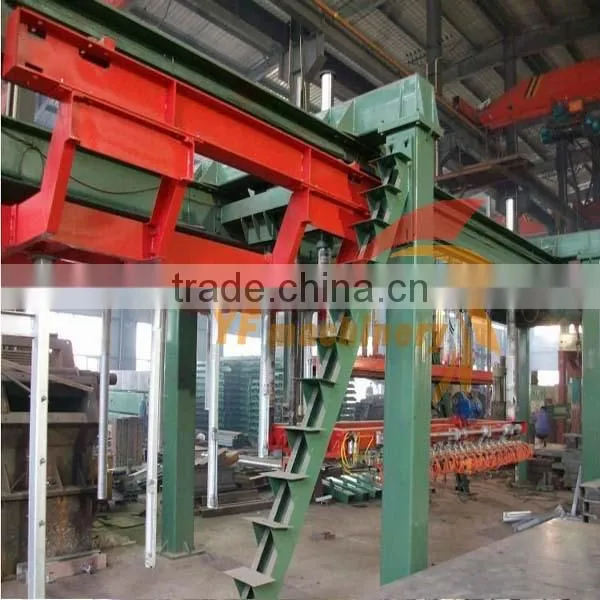

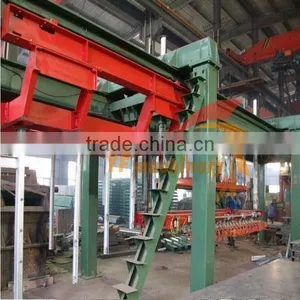

Sand AAC Plant Working Principle-CUTTING MACHINE:
Yufeng patent turning hoist bring the mould with green block body turning 90 degree in the air, then put it on cutting car, block body with side plate settled on the cutting car together, then moving controlled by electric motor, finish lengthwise cutting, groove milling, horizontal cutting through lengthwise cutting system. The cutting car continuously walking until arrival the central position of vertical cutting system, crosscut shelf vertically finish cutting from top to bottom. Cutting car then walk to the position of grouping hoist, organized into groups and hoist hang the group block body with side plate to the autoclaving car into autoclave, cutting car returning to the primitive position and ready for next cutting circulation.
AUTOCLAVED AERATED CONCRETE COMMON CONCEPTION
Common concrete density is usually 1600-2400kg/m3,but Areated concrete are 500kg/m3,600kg/m3,700kg/m3.It has not the big grain,main use silicon material (for example:coal ash,sand,stone dust and others ),through making the material small for example sand,they can be used directly if has enough degree of small (for example coal ash.Mixing calcium material lime cement water to a special slop,then add the aluminum dust and the additive.Make the aluminum dust and the special slop have a Chemical reflect.then produce Hydrogen to make the concrete slop to expanding or swell,foam.Next,put them into the curing room to concreting cutting steaming curing,last,there will bacome the light brick,the porous rate is 70-80%.
Yufeng AAC Final Product Condition
1 Product weight is according to 600kg/m3 to control.
2 annual capacity 200,000M3.
3 set raw material proportion: cement 6.5%, raw lime 23%, flyash 68%, gypsum 3%, aluminum paste powder 350g/M3.
4 water and material rate 0.631
5 one mould product 2.88M3
6 Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.
7 casting slurry temperature 38-42 degree
8 body quiet stop. Time is 1.5-2.5housr, temperature 50-90 degree, after quiet stop body strength is 0.15-0.18Mpa
9 Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa, total 6.5 hours.
10. Cement lime fly ash style aerated block raw material proportion
We Are Offering Sand AAC Plant With Following Annual Capacity:
50,000 m3 Sand AAC Plant; 60,000 m3 Sand AAC Plant
100,000 m3 Sand AAC Plant; 150,000 m3 Sand AAC Plant
200,000 m3 Sand AAC Plant; 250,000 m3 Sand AAC Plant
300,000 m3 Sand AAC Plant; 350,000 m3 Sand AAC Plant
400,000 m3 Sand AAC Plant; 450,000 m3 Sand AAC Plant

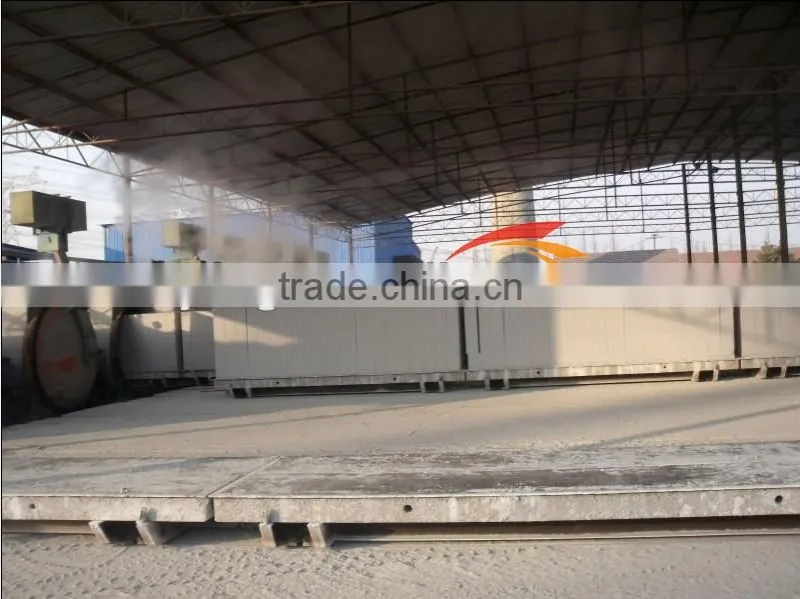

Pictures of Yufeng Sand AAC Plant
Our service:
Pre-sale
Depending on customer's requirement, we insist on "making profit at lowest investment" and gives best solution as per the customer's special demand.
During-sale
1. Manufacturing products strictly on contract while customer constructing.
2. Production progress report each week with detailed description and photos, including with raw materials tables, process and deep process record, testing data sheet, etc.
3. Testing all the equipment by witness of the customer ex-work, delivery, customer acceptance.
After-sale
1.. Regularly return visit to the customers.
2.Within 1 year warrant period, we take charge of everything if any quality problems. After the warrant period, we still focus on the plant running and services.
3.Response customer's questions within 1 working day, give effective solutions within 3 working days, go into action with 5 working day.
That's our promise, as we know quality and service both more important for long-terms development and cooperation.
Any Inquiries Of the AAC Plant / Sand AAC Plant / Flyash AAC Plant, you are welcome to contact Linda.
