Ceramic Mill /ball Mill for Sale Yufeng Brand

Ceramic Mill /ball Mill for Sale Yufeng Brand thumbnail-1
Ceramic Mill /ball Mill for Sale Yufeng Brand photo-1
US$ 10,000 - 800,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Zhengzhou Yufeng Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 5.5/11/18.5/15/22/30/37/45
Capacity(t/h) 5-50
Place of Origin Henan, China
Brand Name Yufeng
Model Number various
Dimension(L*W*H) various
Weight 3/3.8/4.5/6/7.4/8.2
Certification ISO&CE
Warranty 2 years (except the easy-damaged parts)
After-sales Service Provided Engineers available to service machinery overseas
Application

The Intermittence Ball Mill (Ceramic Ball Mill ) is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, it also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

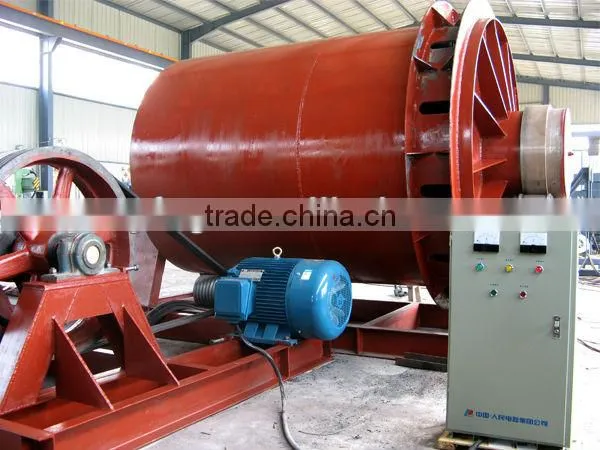

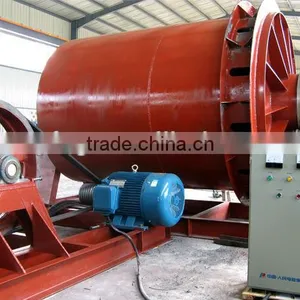

The Intermittence Ball Mill (Ceramic Ball Mill)is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.

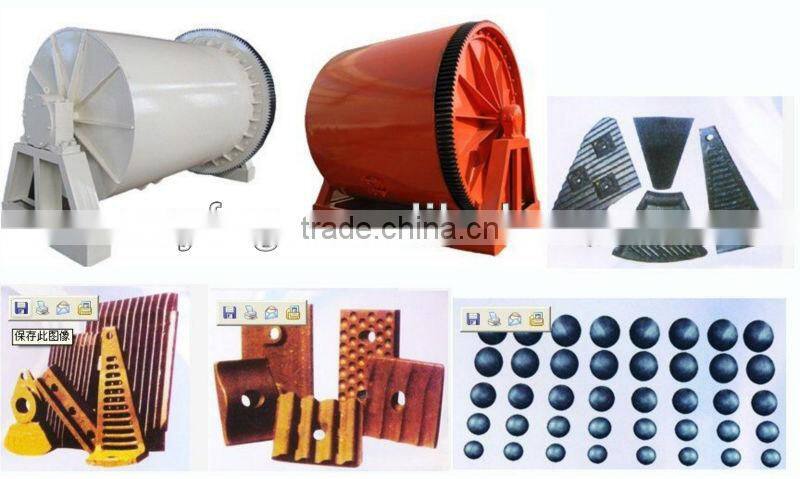

Structure of The Intermittence Ball Mill (Ceramic Ball Mill )

The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

The Intermittence Ball Mill Main Technical Parameters

Model
Capacity(t/times)
Rotation speed(r/min)
Motor power(kw)
Weight(t)
TCQ910x1120
0.2
36
5.5-11
3
TCQ1200x1400
0.5
32
11-18.5
3.8
TCQ1500x1800
1
28
15-22
4.5
TCQ1800x2100
1.5
26
18.5-30
6
TCQ2100x2100
2.5
22
22-37
7.4
TCQ2200x2400
3
20
28-45
8.2

Ceramic mill /ball mill for sale yufeng brandCeramic mill /ball mill for sale yufeng brand

...















Our Services



Pre-sale



1. Depending on customer's requirement, we insist on "making profit at lowest investment" and gives best solution as per the customer’s special demand.
2. Design the most reasonable project and maximum customers' profit.
3.Provide engineers to scene to plan work site if the customer needed.
4. Provide equipment list, design drawing, construction drawing, equipment install drawing.



During-sale



1. Depend on scene, draw design drawing , construction drawing, equipment install drawing, civil work detailed drawing for references, operating manuals, maintenance video, etc

2.Manufacturing products strictly on contract while customer constructing.

3. Production progress report each week with detailed description and photos, including raw materials tables, process and deep process record, testing data sheet, etc.
4. Testing all the equipments by witness of the customer ex-work, delivery, customer acceptance.



After-sale



1. Provide engineer to work site guiding install, debugging and commissioning.
2. Test equipment after installation, training operators for free, remind notice in operating.
3. Regularly returning visit to the customers.

4. Within warranted period, we take charge of everything if any quality problems. After the warranted period, we still focus on the plant running and services.

5. Response customer’s questions within 1 working day, give effective solutions within 3 working days, go into action with 5 working day.



That’s our promise, as we know quality and service both are important for long-term’s development and cooperation.
