Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Mill > Ceramic Ball Mill for Silica and Brittle Materials

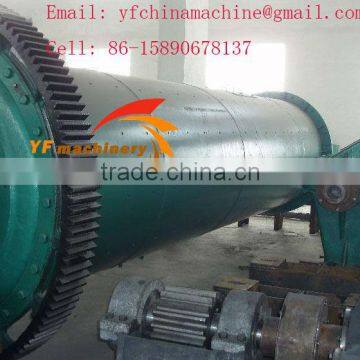

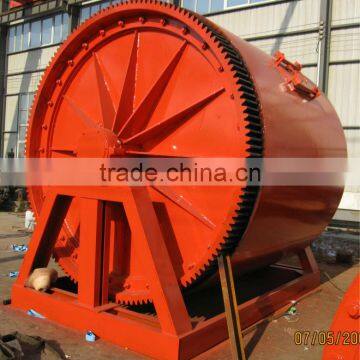

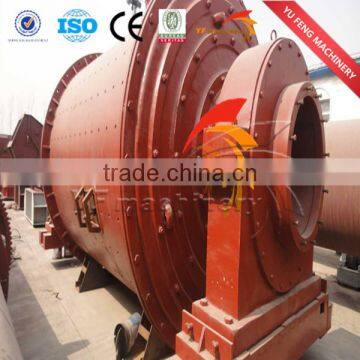

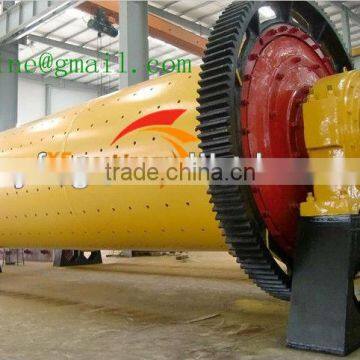

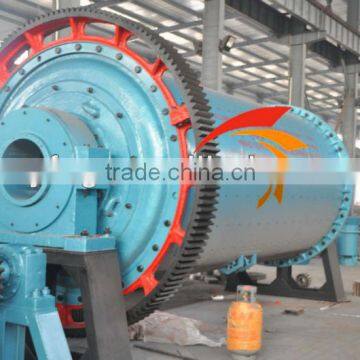

Ceramic Ball Mill for Silica and Brittle Materials
US$ 12,000 - 800,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Yufeng Brand Intermittent Calcium Carbonate Ball Mill for SaleUS$ 8,000 - 450,000MOQ: 1 Set -
Air Swept Coal Mill With Good Quality and Low PriceUS$ 10,000 - 800,000MOQ: 1 Set
-
Air Swept Coal Mill for Sale With Good QualityUS$ 8,000 - 200,000MOQ: 1 Set
-
Air Swept Coal Mill Machinery for Cement PlantUS$ 8,000 - 200,000MOQ: 1 Set
-
Air Swept Coal Mill for Drying and Grinding CoalUS$ 80,000 - 1,000,000MOQ: 1 Set
Condition
New
Type
Ball Mill
Motor Type
AC Motor
Power(W)
15/18.5/22/30/37/45
Capacity(t/h)
5-50
Place of Origin
Henan, China
Brand Name
Yufeng
Model Number
various
Dimension(L*W*H)
varied
Weight
3/3.8/4.5/7.4/8.2
Certification
ISO&CE
Warranty
2 years (except the easy-damaged parts)
After-sales Service Provided
Engineers available to service machinery overseas
Application
The Intermittence Ball Mill (Ceramic Ball Mill ) is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, it also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
The Intermittence Ball Mill (Ceramic Ball Mill)is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.
Structure of The Intermittence Ball Mill (Ceramic Ball Mill )
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
The Intermittence Ball Mill Main Technical Parameters
Model |
Capacity(t/times) |
Rotation speed(r/min) |
Motor power(kw) |
Weight(t) |
TCQ910x1120 |
0.2 |
36 |
5.5-11 |
3 |
TCQ1200x1400 |
0.5 |
32 |
11-18.5 |
3.8 |
TCQ1500x1800 |
1 |
28 |
15-22 |
4.5 |
TCQ1800x2100 |
1.5 |
26 |
18.5-30 |
6 |
TCQ2100x2100 |
2.5 |
22 |
22-37 |
7.4 |
TCQ2200x2400 |
3 |
20 |
28-45 |
8.2 |
....
