Specifications
2 ~20 million m2/yfull automatic
easy to install and operate
lower power and labor cost
manufacturer, competitive price
Full automatic drywall production line supplier
1. Capacity: 2 million m2/y~20 million m2/y ( thickness of 9.5mm gypsum boards)
2. Automation: Full automatic
3. Drying system: Using hot air or heat-transfer oil pipe line for drying
4. Fuel: Coal, natural gas, heavy oil and diesel oil
5. Main materials used for producing gypsum board:
Construction gypsum powder, modified starch, protective paper, foaming agent,
water, white latex.(we also provide these raw materials)
Fiberglass and paper pulp (adding selectively according to different raw materials and
kinds of products)
Quantity of raw material required for producing per m2 gypsum board
(referenced data) (thickness of gypsum board 9.5mm)
Gypsum powder(CaSO4·1/2H2O) |
6.8kg/m2 |
Protective paper |
0.48kg/m2 |
Modified starch |
0.035kg/m2 |
Foaming agent |
0.008kg/m2 |
White latex |
0.005kg/m2 |
Fiberglass (used selectively ) |
0.025kg/m2 |
Electricity |
0.3kwh/m2 |
Water |
4.8kg/m2 |
Heavy oil |
Heat consumption~3800kcal/m2 |
Natural gas |
Heat consumption~3800kcal/m2 |
6. Dimension of product
thickness: 8mm-22mm, width: 1200mm or 1220mm, length: 2400mm~3600mm
7. Standard of product quality
in conformity with national standard GB9775-2008

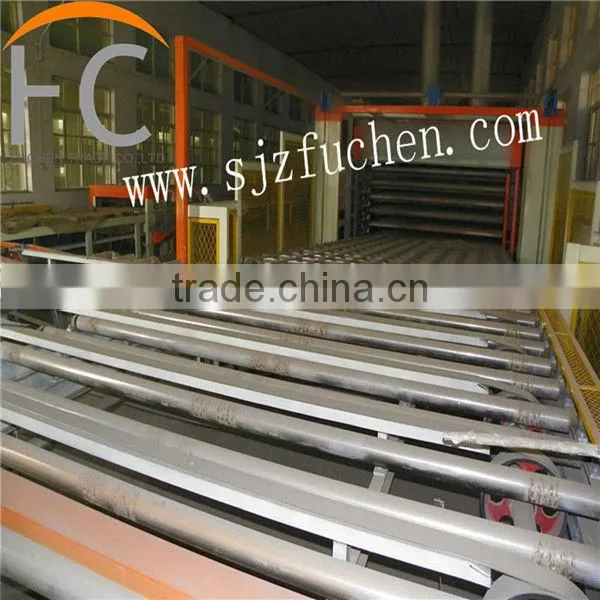

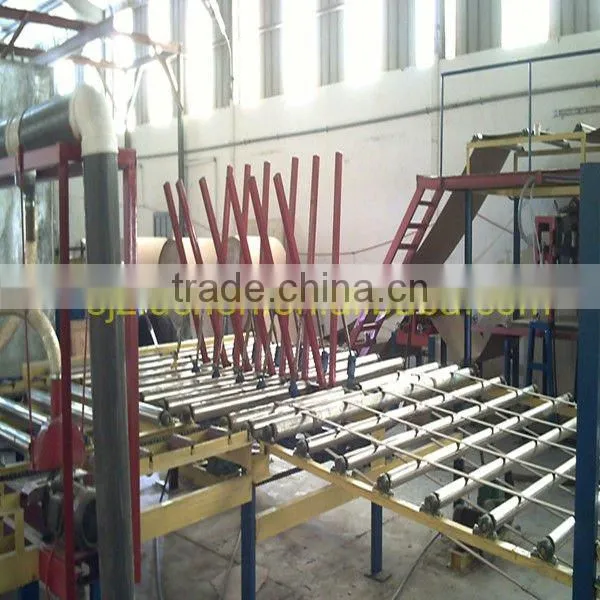

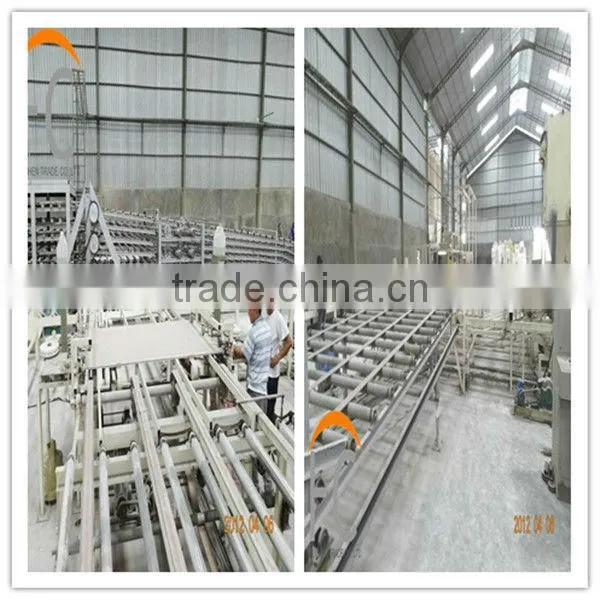

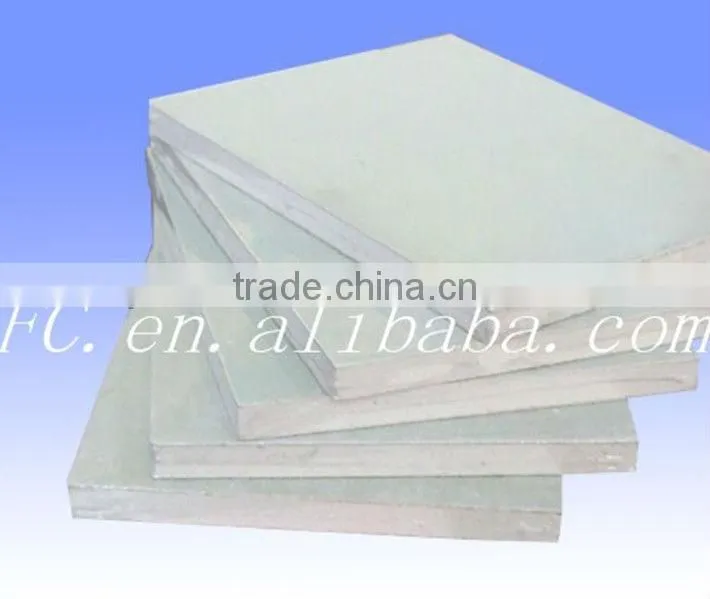

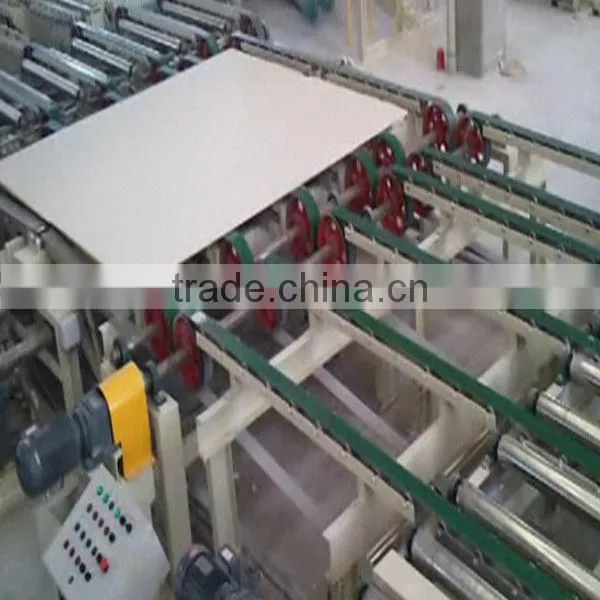

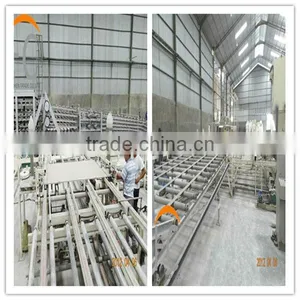

Here are some pictures of some products made by our paper surfaced gypsum board production line:
