Home > Consumer Electronics > Water Heater & Components > Solar Water Heater > How to Build a Solar Water Heater Panel

How to Build a Solar Water Heater Panel

Name: How to Build a Solar Water Heater Panel
Brand: Sky Genius
SKU: 138726065
Availability: InStock

How to Build a Solar Water Heater Panel thumbnail-1

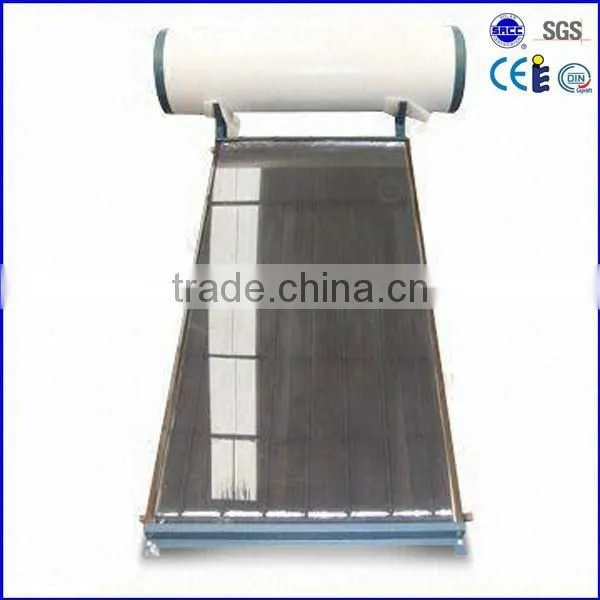

How to Build a Solar Water Heater Panel photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Flat-Plate

Pressure:

Pressurized

Circulation Type:

Indirect / Closed Loop (Active)

Contact Supplier Request Quote Chat Now

Shanghai Spreadsun International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Flat-Plate

Pressure Pressurized

Circulation Type Indirect / Closed Loop (Active)

Heating System Thermosyphon (Passive)

Connection Type Direct-Plug

Installation Freestanding

Housing Material Other, galvanized steel

Certification CE, Other, CE, ISO9001

Capacity 100

Place of Origin Shanghai, China

Brand Name Sky Genius

Model Number SGFS

how to build a solar water heater panel

1) Header pipe: copper pipe , Absorbing fin:Aluminum or copper ( Specification of flat plate pls see “BaoBei series “ flat-plate solar collector in my website )
2) Outer tank shell:coloured steel or stainless steel ,
3) Inner tank : stainless steel 3042B or 316,100L-350L
4) Insulation: by polyurethane Thickness:55-65mm
5) Rubber Seals and Rings: UV stabilized high temperature silicon rubber
6) Optimal installation angle: 20-80 degree
7) Inlet & Outlet: 1/2” or 3/4”

Detailed Product Description

Flat-plate collectors are the most common solar collectors for use in solar water-heating systems in homes and in solar space heating. A flat-plate collector consists basically of an insulated metal box with a glass or plastic cover (the glazing) and a dark-colored absorber plate. Solar radiation is absorbed by the absorber plate and transferred to a fluid that circulates through the collector in tubes. In an air-based collector the circulating fluid is air, whereas in a liquid-based collector it is usually water.
Flat-plate collectors heat the circulating fluid to a temperature considerably less than that of the boiling point of water and are best suited to applications where the demand temperature is 30-70°C (86-158°F) and/or for applications that require heat during the winter months.
Flat collectors can be mounted in a variety of ways, depending on the type of building, application, and size of collector. Options include mounting on a roof, in the roof itself, or free-standing.

Model:

Certificate: Solar Keymark, SRCC, ISO9001, CE
