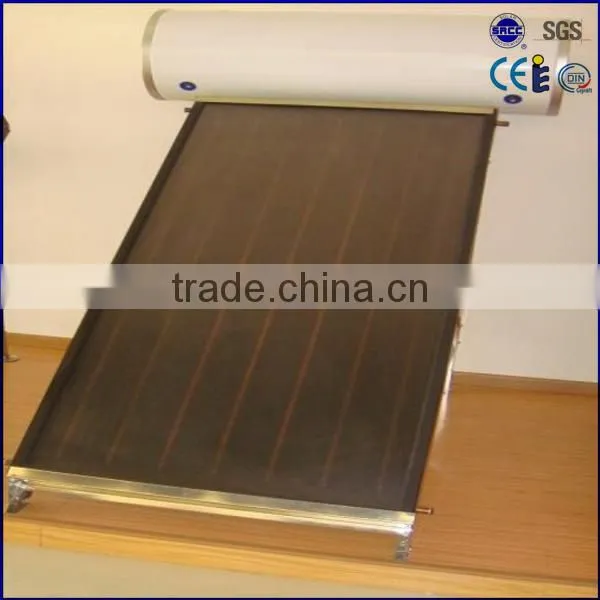

good sun solar water heater
1) Header pipe: copper pipe , Absorbing fin:Aluminum or copper ( Specification of flat plate pls see “BaoBei series “ flat-plate solar collector in my website )
2) Outer tank shell:coloured steel or stainless steel ,
3) Inner tank : stainless steel 3042B or 316,100L-350L
4) Insulation: by polyurethane Thickness:55-65mm
5) Rubber Seals and Rings: UV stabilized high temperature silicon rubber
6) Optimal installation angle: 20-80 degree
7) Inlet & Outlet: 1/2” or 3/4”
Detailed Product Description |
Flat-plate collectors are the most common solar collectors for use in solar water-heating systems in homes and in solar space heating. A flat-plate collector consists basically of an insulated metal box with a glass or plastic cover (the glazing) and a dark-colored absorber plate. Solar radiation is absorbed by the absorber plate and transferred to a fluid that circulates through the collector in tubes. In an air-based collector the circulating fluid is air, whereas in a liquid-based collector it is usually water.
Flat-plate collectors heat the circulating fluid to a temperature considerably less than that of the boiling point of water and are best suited to applications where the demand temperature is 30-70°C (86-158°F) and/or for applications that require heat during the winter months.
Flat collectors can be mounted in a variety of ways, depending on the type of building, application, and size of collector. Options include mounting on a roof, in the roof itself, or free-standing.
Model: |
Copper flat-plate solar collector with black chrome coating
Model |
SGBC-2.0 |
SGBC-2.0 |
SGBC-2.0 |
Dimensions(W×L×H) mm |
2000*1060*70 |
2000*1060*80 |
2000*1060*90 |
Cross area m2 |
2 |
2 |
2 |
Absorber area m2 |
1.8 |
1.8 |
1.8 |
Conversion facotr η % |
76.5 |
77.3 |
78.1 |
Loss coefficient a1 w/m2K |
4.11 |
3.9 |
3.55 |
Loss coefficient a2 w/m2k2 |
0.0093 |
20.0052 |
0.0022 |
Fluid content L |
2.22 |
2.22 |
2.22 |
Maximum operating pressure Mpa |
1 |
1 |
1 |
Temperature of operation ℃ |
(-)35~150 |
(-)35~150 |
(-)35~150 |
Weight empty KG |
32 |
33 |
35 |
Core |
All copper,ultrasonic welding |
||
Coating |
black chrome |
||
Absorptance |
≥95%±2% |
||
Emittance |
≤10%±2% |
||
Absorber material & thickness |
copper T2, δ=0.15mm |
||
header pipe material,dimension&quantity |
copper T2, Φ22*0.7/Φ25*0.6*1060mm, 2pcs |
||
riser pipe material,dimension&quantity |
Copper T2, Φ10*0.5mm, 8pcs |
||
material &thickness of glass |
normal glass:4mm/tempered glass:4mm |
||
Dimension of glass sheet mm |
1988×988 |
||
Transmittance of glass |
87%~91% |
||
material & thickness of |
aluminum, δ=0.8mm |
aluminum, δ=0.9mm |
aluminum, δ=1.2mm |
color of the frame |
champagne |
bronze-coloured |
white |
Insulation material |
glass wool, PE Foam/glass wool, high dense polyurethane foam |
||
Insulation thickness mm |
30 |
40 |
50 |
Material &thickness of the |
zincification plate:0.3mm/embosseo aluminum backsheet:0.3mm |
||
Cover sealing material |
metal/EPDM+metal |
||
Packing |
neutral carton |
||
packing dimension |
2020*1100*160 |
2020*1100*180 |
2020*1100*200 |
20′Container |
165pcs |
145pcs |
130pcs |
40′ Container |
340pcs |
306pcs |
276pcs |
40H′ Container |
390pcs |
346pcs |
306pcs |
Certificate: Solar Keymark, SRCC, ISO9001, CE
