do it yourself solar water heater
- 300 Unit / Units per Month
- Shanghai
Product Details
Type: | Flat-Plate | Pressure: | Pressurized | Circulation Type: | Indirect / Closed Loop (Active) |
Heating System: | Thermosyphon (Passive) | Connection Type: | Direct-Plug | Installation: | Freestanding |
Housing Material: | Other, galvanized steel | Certification: | CE, Other, CE, ISO9001 | Capacity: | 100 |
Place of Origin: | Shanghai, China | Brand Name: | Sky Genius | Model Number: | SGFS |
Product Description

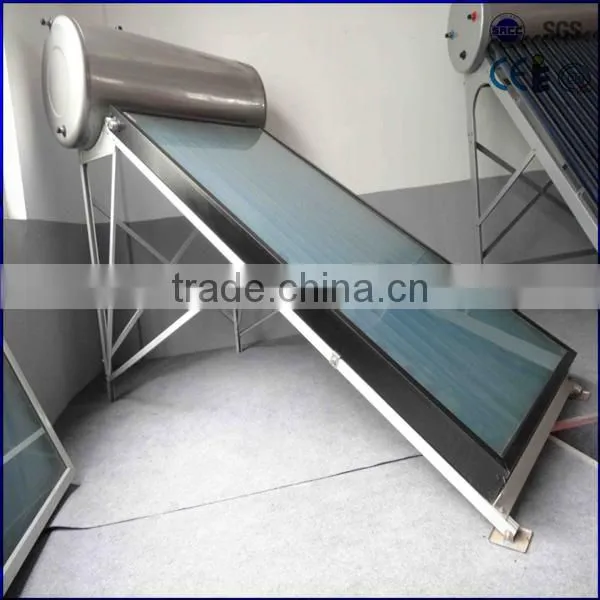

do it yourself solar water heater
1) Header pipe: copper pipe , Absorbing fin:Aluminum or copper ( Specification of flat plate pls see “BaoBei series “ flat-plate solar collector in my website )
2) Outer tank shell:coloured steel or stainless steel ,
3) Inner tank : stainless steel 3042B or 316,100L-350L
4) Insulation: by polyurethane Thickness:55-65mm
5) Rubber Seals and Rings: UV stabilized high temperature silicon rubber
6) Optimal installation angle: 20-80 degree
7) Inlet & Outlet: 1/2” or 3/4”
Detailed Product Description |
Flat-plate collectors are the most common solar collectors for use in solar water-heating systems in homes and in solar space heating. A flat-plate collector consists basically of an insulated metal box with a glass or plastic cover (the glazing) and a dark-colored absorber plate. Solar radiation is absorbed by the absorber plate and transferred to a fluid that circulates through the collector in tubes. In an air-based collector the circulating fluid is air, whereas in a liquid-based collector it is usually water.
Flat-plate collectors heat the circulating fluid to a temperature considerably less than that of the boiling point of water and are best suited to applications where the demand temperature is 30-70°C (86-158°F) and/or for applications that require heat during the winter months.
Flat collectors can be mounted in a variety of ways, depending on the type of building, application, and size of collector. Options include mounting on a roof, in the roof itself, or free-standing.
Model: |
Certificate: Solar Keymark, SRCC, ISO9001, CE
