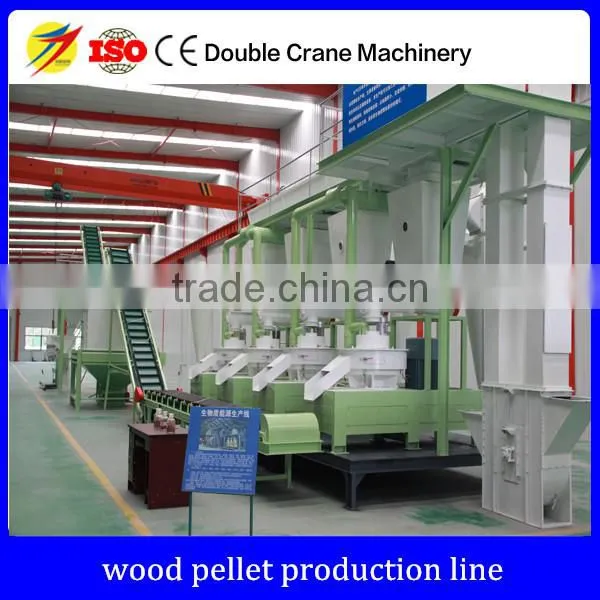

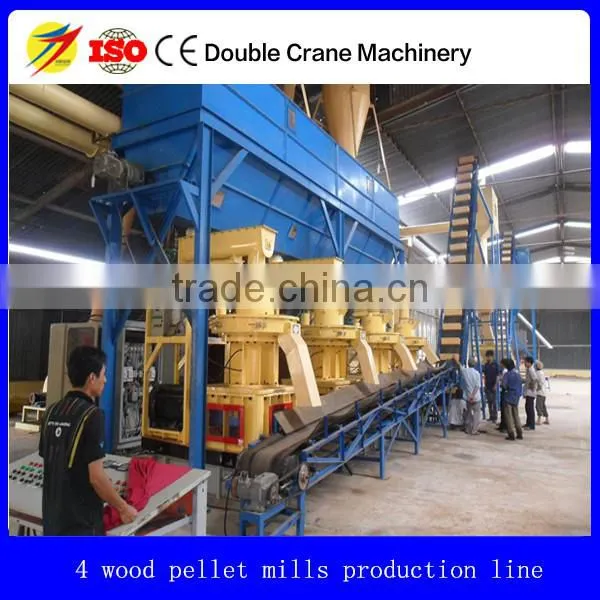

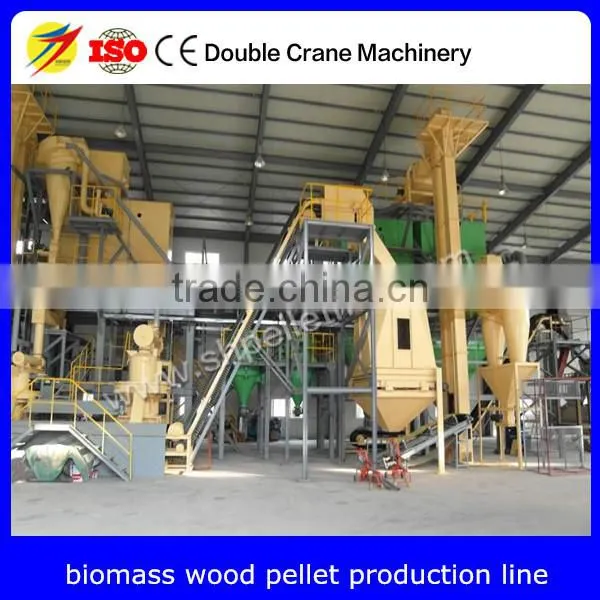

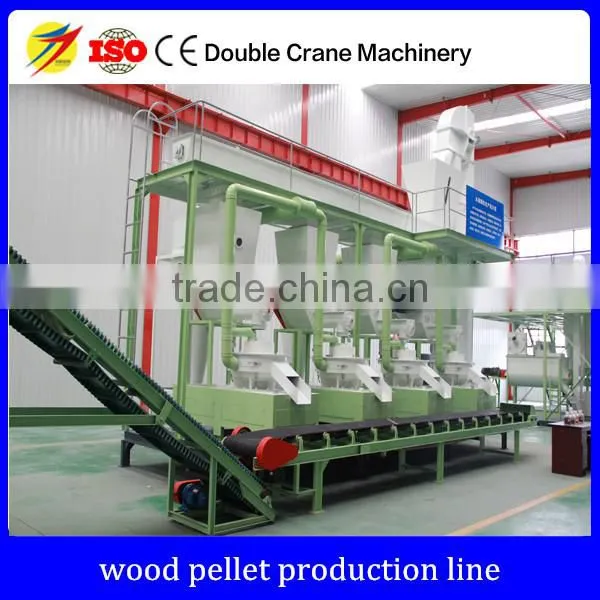

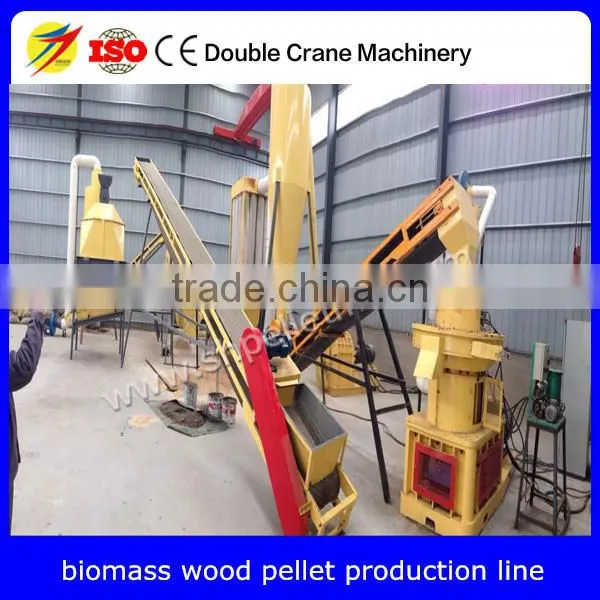

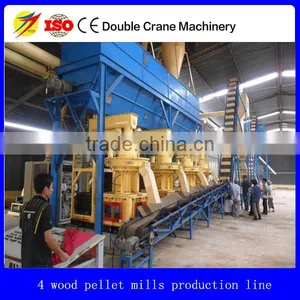

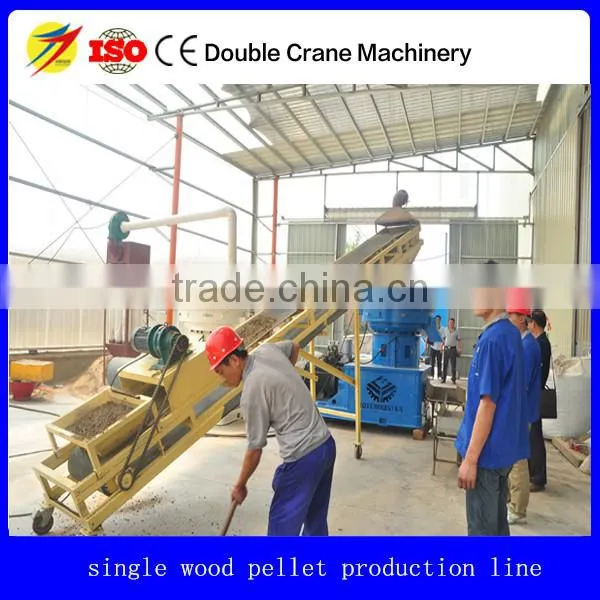

complete wood pellet line made in china
Overview for complete wood pellet line made in china
1. Complete wood pellet line made in chinacan make the pellets with wood fiber
crops and forest waste just like sawdust, rice husk, corn straw, peanut shell, sugar bagasse,
cotton stalk, mustard stem, bamboo, wheat-straw, palm shell, coconut shell, empty fruit bunch.
2. The technological process is rational in succession. Every unit's performance is good.The aricrew
cooperation is compact. The whole line take small area and has small energy consumption.
3. It mainly contains wood crusher machine, drying machine, conditioner, pellet mills, cooling separator,
packing machine and pulsed dust collector,hoitsting machine and storage bin,etc.
4. The diameter of the pellets can be 2mm to 8mm. and the usual pellets is 6mm or 8mm. the length
can be adjusted according to the requirement of the client.
Advantage for complete wood pellet line made in china
1. Static model, Pinch roller rotation, Material centrifugal, uniformly distributed around
2. 2 layers grinding tool, Up and down dual-use, Reduce cost, Increase benefit.
3. Circular mould, Vertical structure, Conducive to granulating chamber radiator cooling
4. Independent frequency conversion discharge device, to ensure the particles forming rate.
5. Independent lubrication, High pressure filter, Clean and unobstructed.
6. High density granulating molding equipment.
7. Reasonable price
Main structure for complete wood pellet line made in china

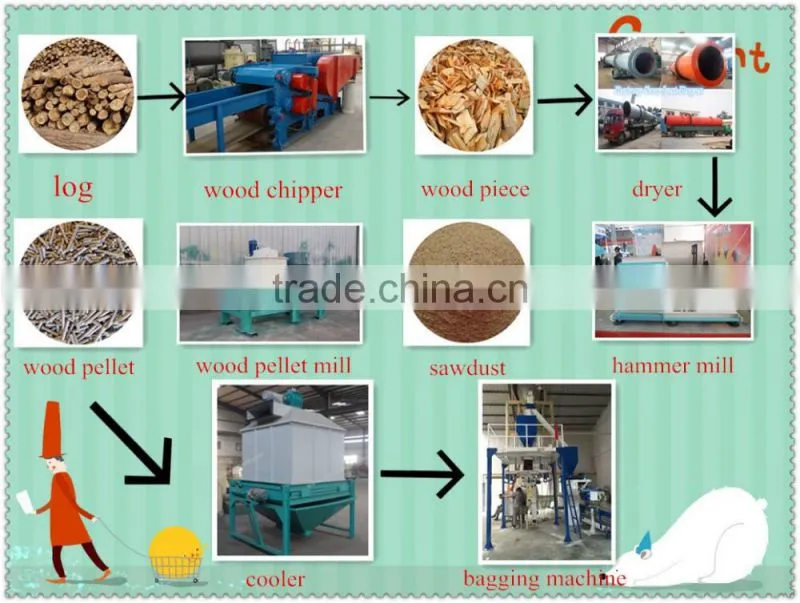

Wood chipping ⇒ drying ⇒wood crushing ⇒wood pelleting ⇒wood cooling ⇒bagging
Main machines and pareameters for complete wood pellet line made in china

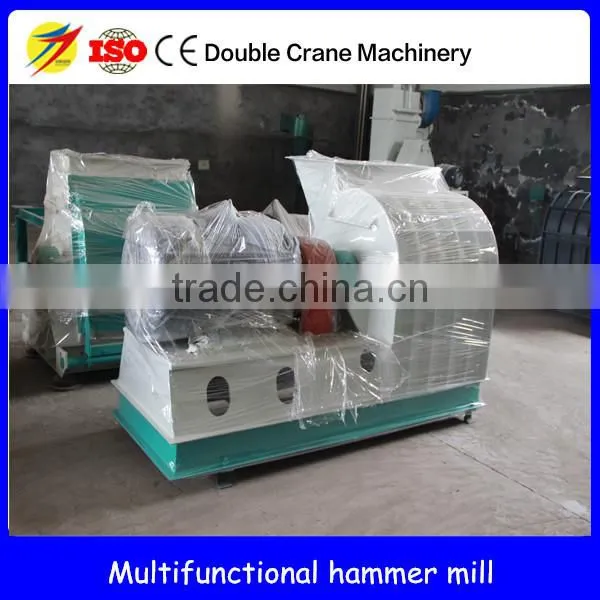

1. hammer mill
Item No. |
Power(kw) |
Capacity (T/h) |
Screen Size |
Hammer Mill Application |
DG -65*27 |
22 |
0.6-0.8 |
Screen size Φ2-Φ12mm, thinkness 3mm, Made by alloy steel |
Hammer mill for wood sawdust, Crush wood chips, Furniture waste, branches, bark, straw,corn cob, organic fertilizer,etc,Crushed sawdust used for making wood pellet |
DG -65*55 |
37 |
1-3 |
||
DG -65*75 |
55 |
2-3.5 |
||
DG -65*85 |
90 |
3-5 |
||
DG-65*100 |
110 |
3.5-6 |

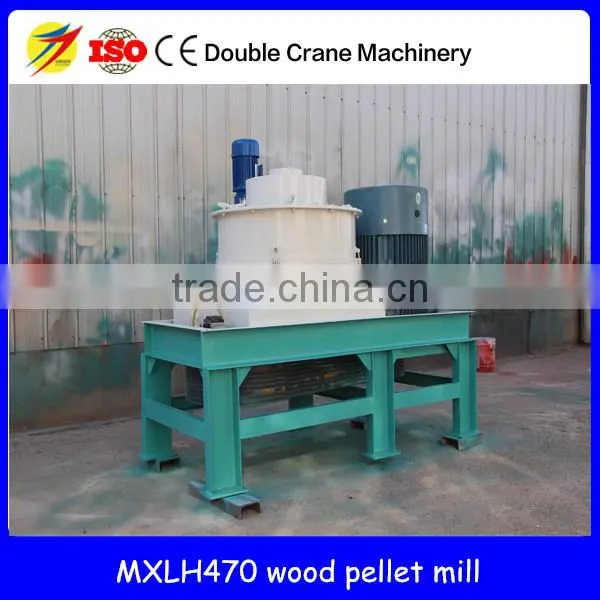

2. wood pellet mill
| Type |
Main Power |
Feeder Motor |
Dial-out Motor |
Oil Pump Motor |
Production Capacity |
Noise | Dimension | Weight |
|
MXLH 470-A |
45kw | 2.2kw | 1.5kw | 0.37kw |
0.6-1t/h 6-10mm |
≤80dB (A) |
2.46*1.2*2.2m Including feeder: 2.46*1.2*3m |
1.7ton |
|
MXLH 470-B |
55kw | 2.2kw | 1.5kw | 0.37kw |
1-1.5t/h 6-10mm |
≤80dB (A) |
1.9ton
|

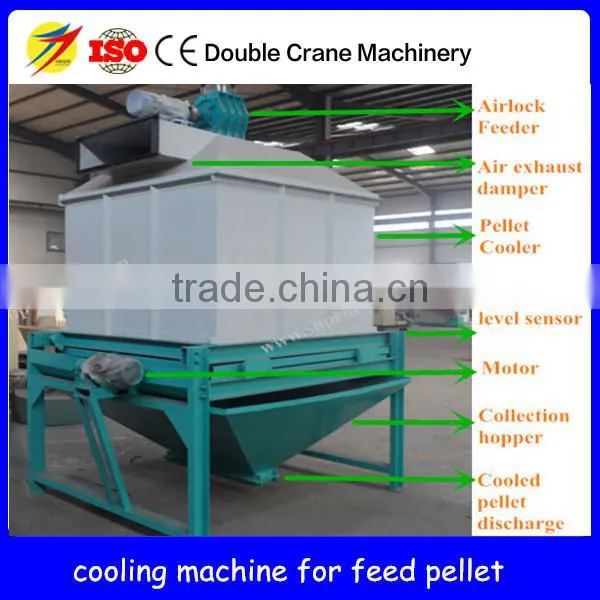

3. cooling machine
Type |
Power (kw) |
Cooler Capacity (Ton/h) |
Size(mm)/Weight |
|
|
Feed Pellet |
Wood Pellet |
|||
SKLN11x11 |
0.75 |
1-2t |
1m3 |
L:1900,W:1300,H:2200, Weight:960kg |
SKLN14x14 |
0.75 |
2-5t |
2.5m3 |
L:2200,W:1600,H:1400, Weight:1230kg |
SKLN17×17 |
1.5 |
3-8t |
4m3 |
L:25800,W:1900,H:2750, Weight:1650kg |
SKLN19x19 |
1.5 |
4-10t |
6m3 |
L:3000,W:2200,H:3100, Weight:1860kg |
SKLN22×22 |
2.2 |
8-15t |
8m3 |
L:3360,W:2550,H:3300, Weight:2250kg |
SKLN24x24 |
2.2 |
10-20t |
10m3 |
L:3670,W:2800,H:3500, Weight:2430kg |
Application for complete wood pellet line made in china
The pellet machine is widely used in biomass-energy fuels plant, power plant, wood processing plant,
fertilizer plant, chemical plant etc.

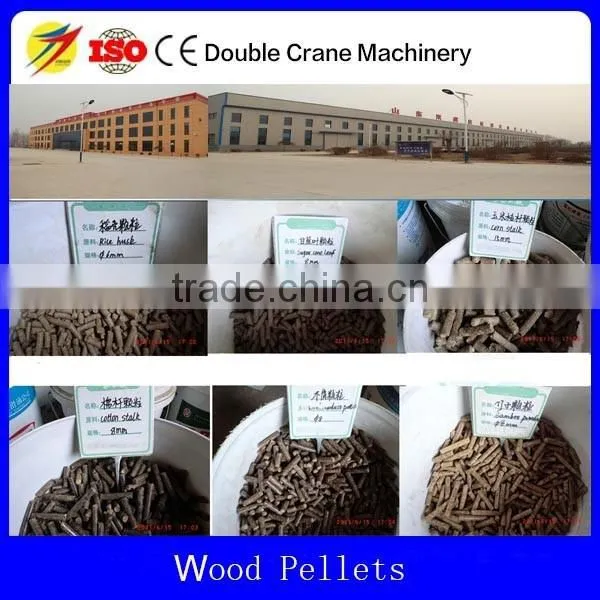

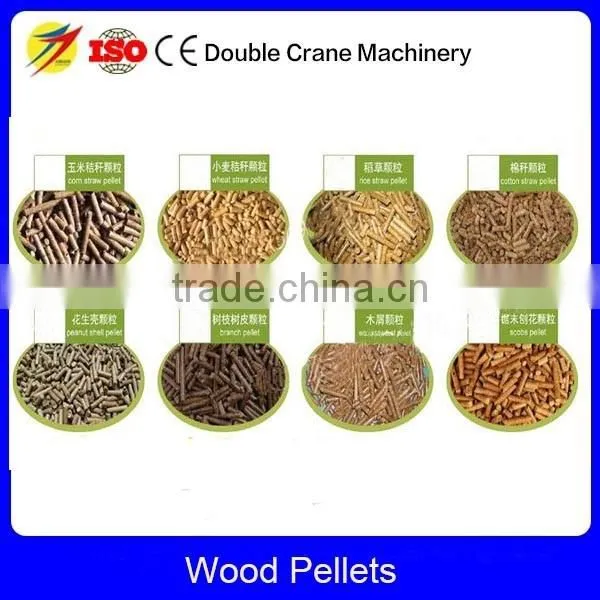

Raw material and wood pellet forcomplete wood pellet line made in china
wood log, wood waste,wood shavings, wood branch, sawdust ,straw,rice husk ....
CE Certificate for complete wood pellet line made in china
Wooden case packing into container

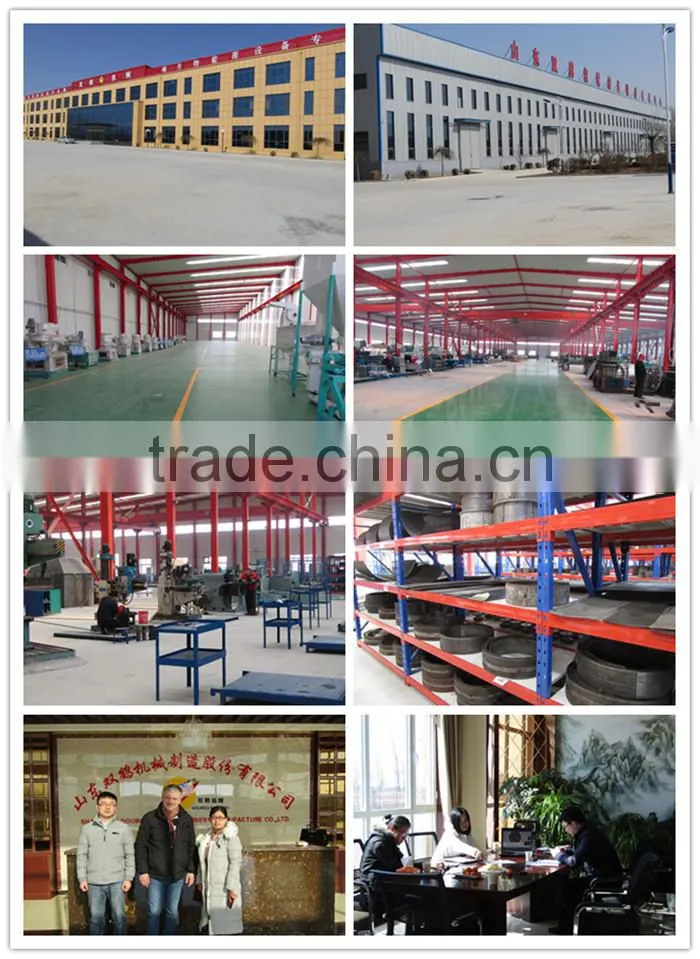

Shandong Double Crane Machinery Manufacture Co,ltd.is located in Leling High-tec Industrical Park,
Dezhou City,Shandong Provience,China.It very close to the expressway from Beijing to Shanghai,
and is the professional pellet machine manufacturer dedicated in manufacturing and supplying feed
pellet and biomass pellet production line to worldwide customers.
Sticking on the product developing ideas of simpleness,perfecting,quality and innovation,we have
been always focused on designing and manufacturing biomass pellet machines since the foundation in 2005.
Cooperated with domestic famous Universities like Shandong University,Jinan University and
Shandong Agricultural University in biomass pellet production line research and development since
2008,we had obtained more than 30 patents and successfully developed 8 series,60 different kinds
of product.we had been taking advantages in man-machine design,functional performance design,
user experience and reliable quality in pellet production industry.and become the leading professional
pellet mill manufacturer in china.We have strong competitive advantages in feed production line
under 30t/h and biomass pellet plant under 50t/h.There were more than 1200 sets of pellet mills
running around the world.
In recent years,we were continuously investing in technology and manufacturing.We had invested
up to 60 million RMB to build 19200 square meters manufacturing base,and 10 million in
technological innovation,automatic and integrative technology development.So the new generation
products were manufactured to provide best solutions for feed and biomass equipment customers.
Double Crane machinery is willing to become your partners with our high cost-performance
products,excellent quality and perferct after-sale service.
Join in Double Crane,Win-win Our Future.
Pre-sale services:
1.Selecting equipment type;
2.Designing and fabricating the products in accordance with the special requirements of the clients;
3.Training technical personnel for our clients;
4.Providing construction and technology consultations or working out proper construction schemes
for those new, special or difficult projects.
Services provided during the sale:
Respect our clients; present clients with ease, relaxation and surprises;devote ourselves to improve
the total value of our clients.
1.Checking products acceptance ahead of delivery;
2.Introducing the service system to our clients.
After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1.Assisting the clients preparing for the first construction scheme;
2.Installing and testing the equipments;
3.Training the first-line operators on site;
4.Examining the equipment regularly;
5.Taking the initiatives to eliminate the failure rapidly at site;
If you're interested in our wood pellet machines, Please kindly reply us the
following question:
1. What's the wood pellet machine production capacity you want?
R:we can supply wood pellet mill or production line from 0.1-10t/h.
2. What's your raw material and size and moisture content?
R:All kinds of wood is workable for us,tell us we can design the suitable production line for
you,make final sawdust ideal moisture about 15%.
3. What's the final wood pellet diameter you want?
R:We can do wood pellet 6-10mm or more,general customer need 6mm or 8mm.
4. What's your country industrial electricity voltage?
R:General 380/415V,50/60Hz,3Phase,if not match,tell us we can modify motor.
