2016 Complete wood pellet production line equipment 5 ton/h
Wood pellet production line

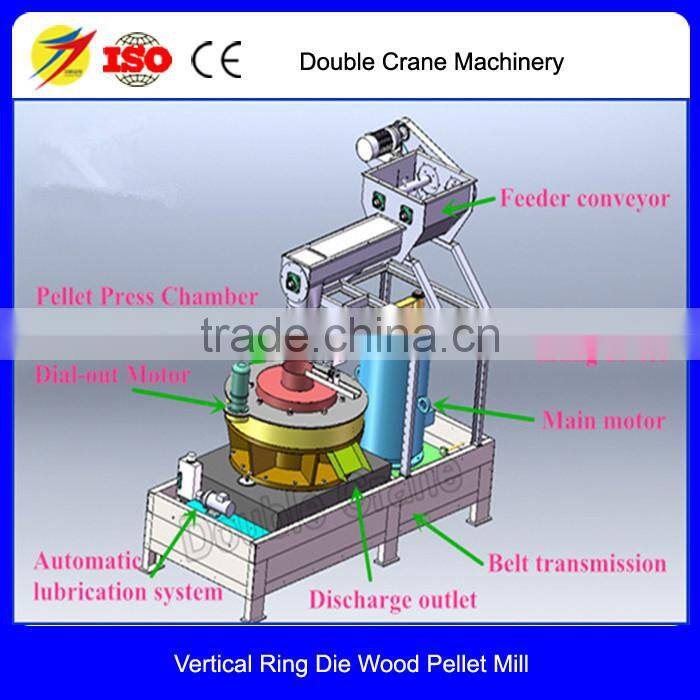

1.Mold upward,vertical feed:This unique design can avoid sawdust be stuck in granulating room,conducive to heat dissipation. Ring die fixed,roller assembly roating,sawdust material centrifugal,enenly distributed around.
2.Belt transmission: Super high efficiency motor drive belt pulley, have large inertia to drive roller roating,stable operation, nearly not vibration,easy to maintain,compare with gear drive, low invest and long useful life.
3.Independent automatic lubrication system:Lubricate the bearing and rollers,increase bearing service life and improve production efficiency,reduce energy consumption.ensure work continuous 24 hours.
4.Siemens frequency conversion motor or domestic brand:International warranty, long service life.
5.SKF bearing or domestic brand:High precision, high speed, low noise, long life.
6.Granulating room cooling system: As the pelletizing process will generate high temperature, it will reduce the service life of die and bearing.By add blower and cyclone,this cooling system can avoid it happened.
7.Energy saving,high yield:The biggest advantage is this type pellet mill only need very low power consumption,Such as MXLH-750 only need 90KW motor,can achieve a high wood pellet production capacity,customer test production capacity 1.5-2t/h,this design will help user save production cost.
8.Ring die lifting device:Including lifting device,so very convient to change new ring die and roller assembly by lifting device,save labor and maintance time.
The Raw material of Wood pellet production line
Sawdust,wheat straw,rice straw,corn stalk,rice husk,coconut shell,palm fiber and palm shell, sunflower stalk,forestry wastes,wood chips and other very hard wood ect,also can press fertilizer pellets from animal manure,plant waste,chemical waste ect .
The Tecnical parameters of MXLH series wood pellets machine
Type |
Main Power |
Feeder Motor |
Dial-out Motor |
Oil Pump Motor |
Production Capacity |
Noise |
Ring Die Diameter |
Roller |
Dimension(mm) Weight(kg) |
|
MXLH 350 |
30kw |
2.2kw |
1.5kw |
0.37kw |
0.3-1t/h 6-30mm |
≤80dB (A) |
350mm |
2pcs |
2400*860*1360 2000kg |
|
MXLH 470-A |
45kw |
2.2kw |
1.5kw |
0.37kw |
0.6-1t/h 6-30mm |
≤80dB (A) |
470mm |
2pcs |
2460*1200*3000 2800kg |
|
MXLH 470-B |
55kw |
2.2kw |
1.5kw |
0.37kw |
1.0-1.5t/h 6-30mm |
≤80dB (A) |
470mm |
2pcs |
2460*1200*2800 2900kg |
|
MXLH 500 |
75kw |
2.2kw |
1.5kw |
0.37kw |
1.0-2.0t/h 6-30mm |
≤80dB (A) |
500mm |
3pcs |
2600*1500*2830 3500kg |
|
MXLH 750 |
90KW |
2.2kw |
1.5kw |
0.37kw |
1.5-3t/h 6-30mm |
≤80dB (A) |
750mm |
3pcs |
3410*1680*3000 6800kg |
MXLH 1200 |
200kw |
2.2kw |
2.2kw |
0.37kw |
3-5t/h 6-30mm |
≤80dB (A) |
1200mm |
4pcs |
4300*2100*4000 15400kg(15.4Ton) |

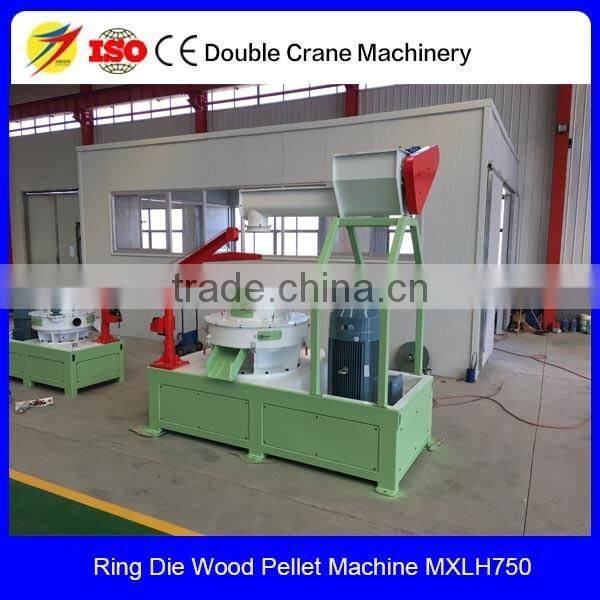

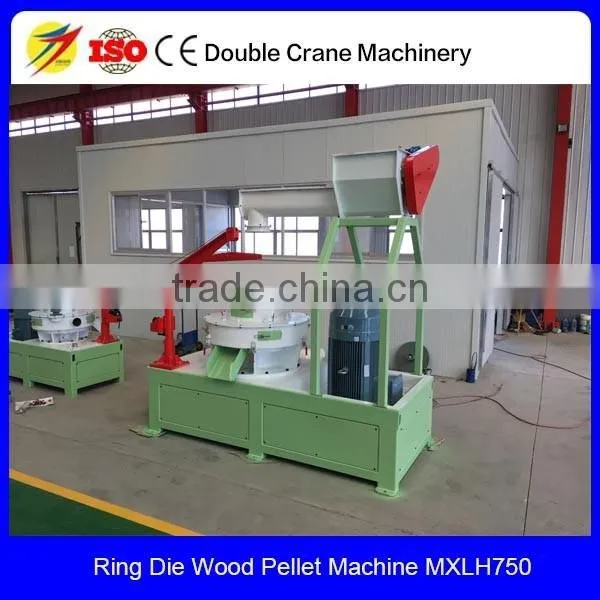

The Pictures of MXLH series wood pellets machine

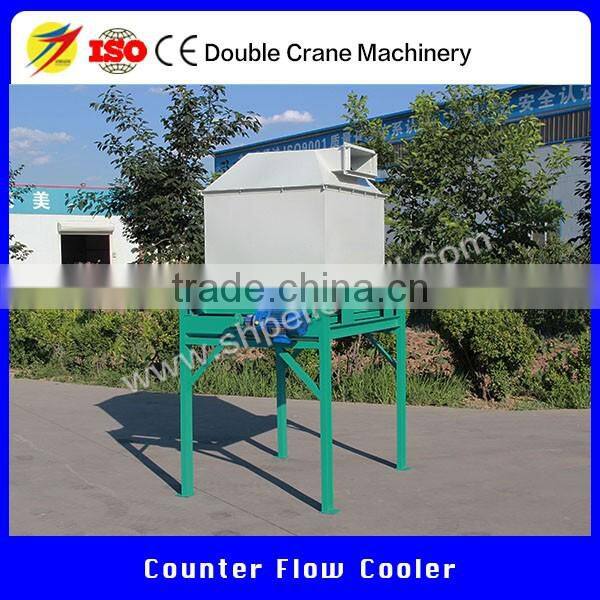

The Wood Pellets Cooler in the Whole Wood Pellet Production Line:

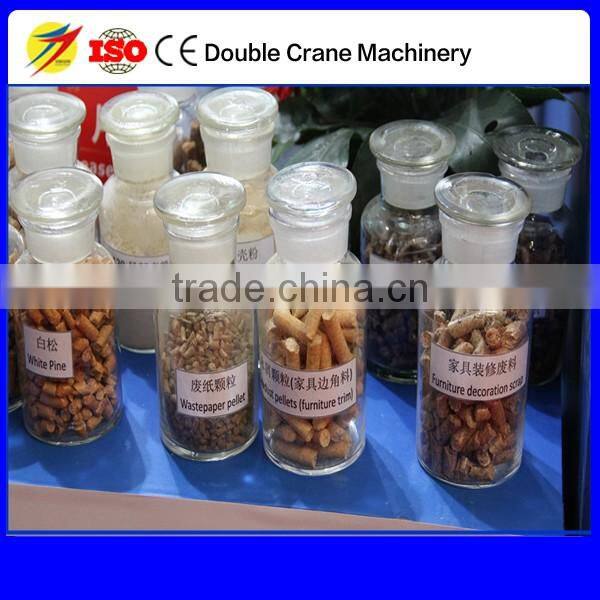

♣ End Products---Biomass pellets

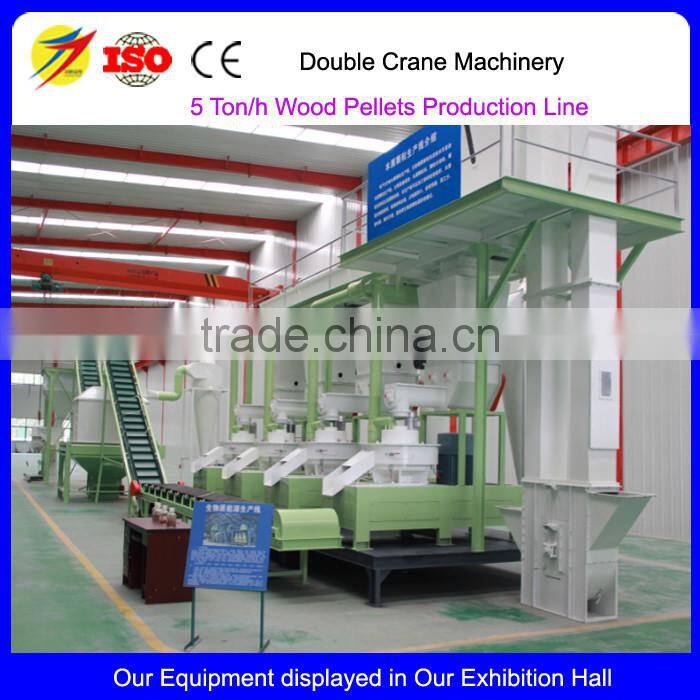

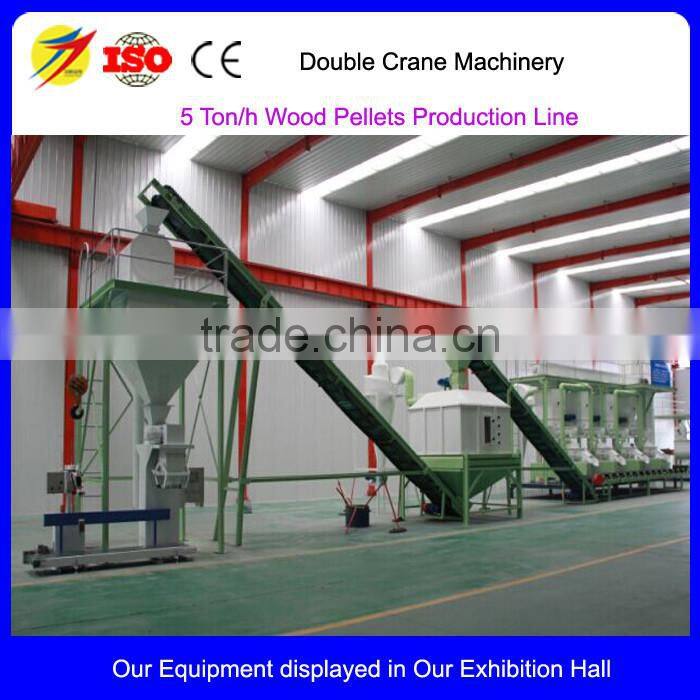

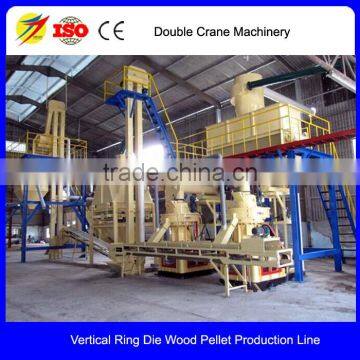

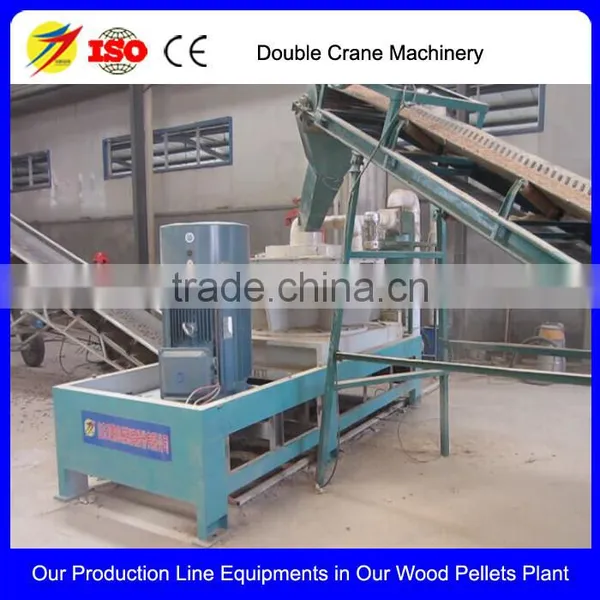

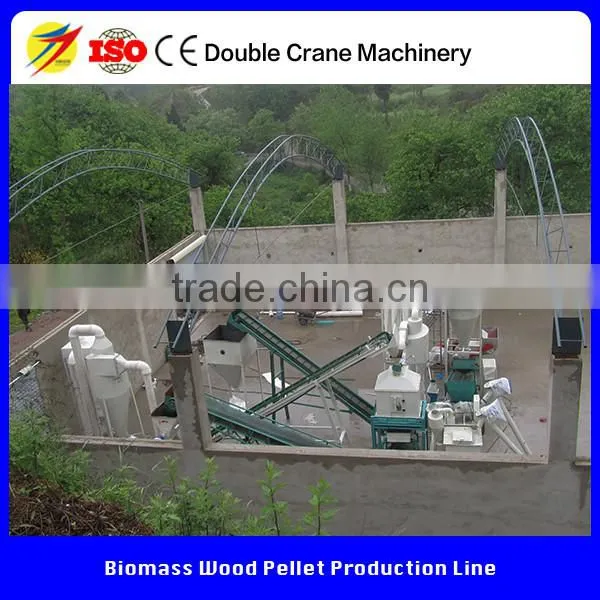

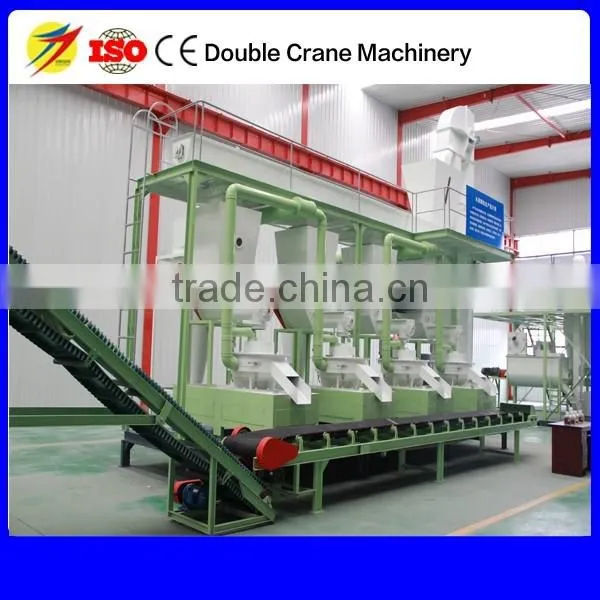

♣ The whole Wood biomass pellet production line equipment

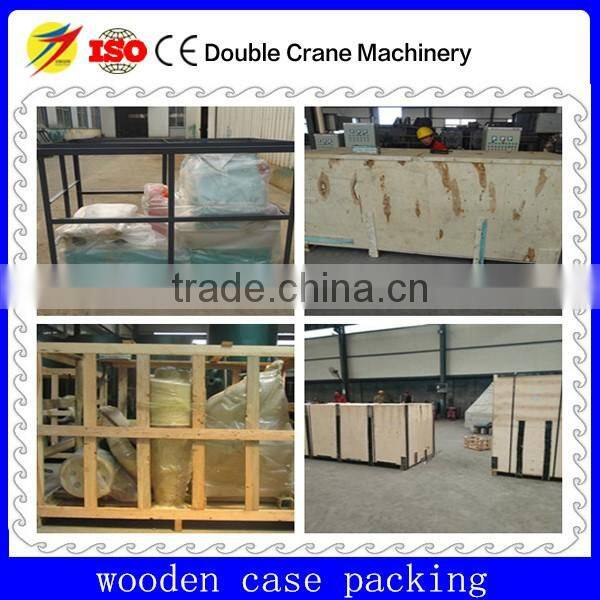

Single Machine will be packaged in wooden cases and the whole production line equipment will be loaded in the whole container;

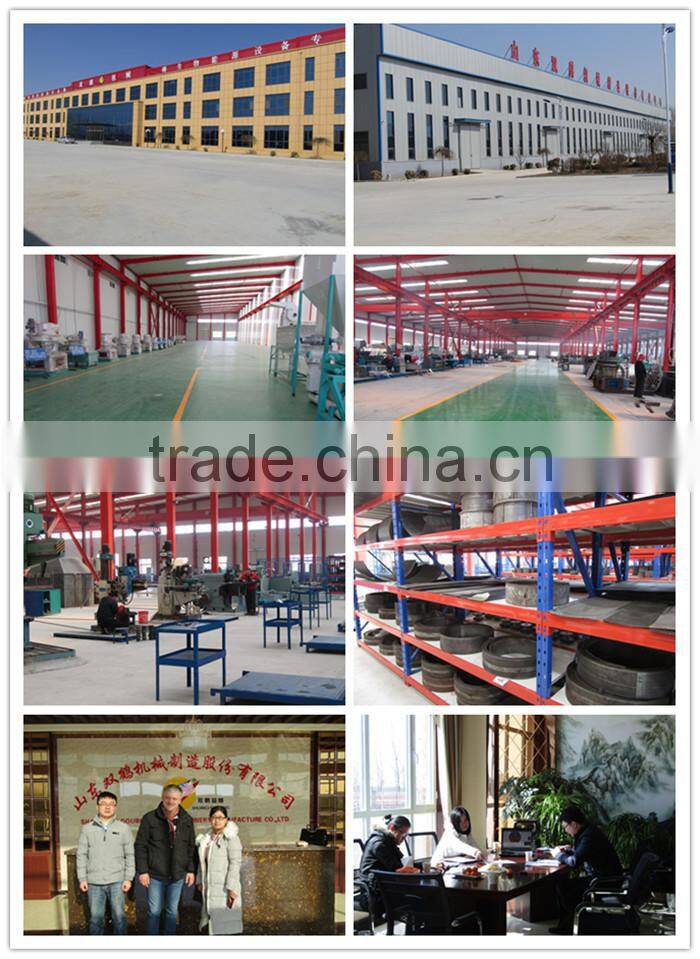

♣ Found in 2005, Shandong Shuanghe Machine Manufacture Co.,Ltd. located in Leling High-tech Industrial Park,Dezhou City, Shandong Province,China. Distance from the Dezhou East Railway Station only one hour,Distance from the Jinan International Airport two hours.
♣Shandong Shuanghe Machine Manufacture Co.,Ltd. is a modernized and experienced enterprise which is specialized in research, manufacturing, and sale of wood pellet equipment,vertical ring die wood pellet machine, ring die wood pellet machine ,small wood pellet machine,flat die wood pellet machine,biomass pellets &briquetting equipment,Stove use wood pellet machine,wood pellet production line etc.
♣Nowadays, most of the countries are developing low-carbon recycling economy with energy conservation and emission reduction, straw &forestry waste comprehensive utilization. with this growth strategy,our company concentrate on biomass solutions for thermal use and power generation, such as wood chips, pellets etc.
1. Our professional service includes: free training, guidance, installation,and debugging.
2. After selling, we provide the warranty of 3 years.
3. If you have any problems, we will help to solve on line or live in time.
4. We are manufacturer of complete feed pellet production machinery line,including pre-cleaning,feed crushing, mixing,pelleting,conditioning,cooling,crumbling,sifting, packing and other procedures.The productivity of which ranges from 1 ton to 20 tons.
5. With well-trained and experienced technicians,professional R&D and manufacturing team,we are capable of designing and customizing special equipment according to requirements of our customers.In recent years, we have absorbed worldwide advanced technology and kept launching new products and improving the quality.
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer having specialized in this business for almost 10 years and we are capable of offering you the most favorable prices and the finest quality.
2. Q: How can I get to your company?
A: You can get a flight to Jinan Airport and We are just about 1hours away from Jinan Airport. Or you can flight to Beijing and take the highspeed from the Beijing South Railwany Station to Dezhou East Raiway Station.We will pick you up.
3. Q: How long is your warranty period?
A: One Year (Calculated from the equipment arrives the customer’s side).
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Have you sold your products to Europe?
A: Yes, We have designed and installed more than 1000 turnkey pellet lines. Many of our customers are from Europe, including Latvia, France, Grezece, Romania, Lithuania, etc.
If any of our machine interests you,please do not hesitate to let us know.I am Shirley and we will help to solve on line or live in time.
Please rest assured that we are capable of supplying the finest quality and the most favorabnle prices for you.
Contact person: Shirley
WhatsApp/MP: 0086- 185 5346 7667
Skype: shirley.wong5767
Wechat: 185 5346 7667
You are welcome to visit our company for further information about our cooperation.
