SKJ550 CE Standard 500kg/h Wood Pellet Making Machine
Video On YouTube http://youtu.be/2BVnLAkMewg

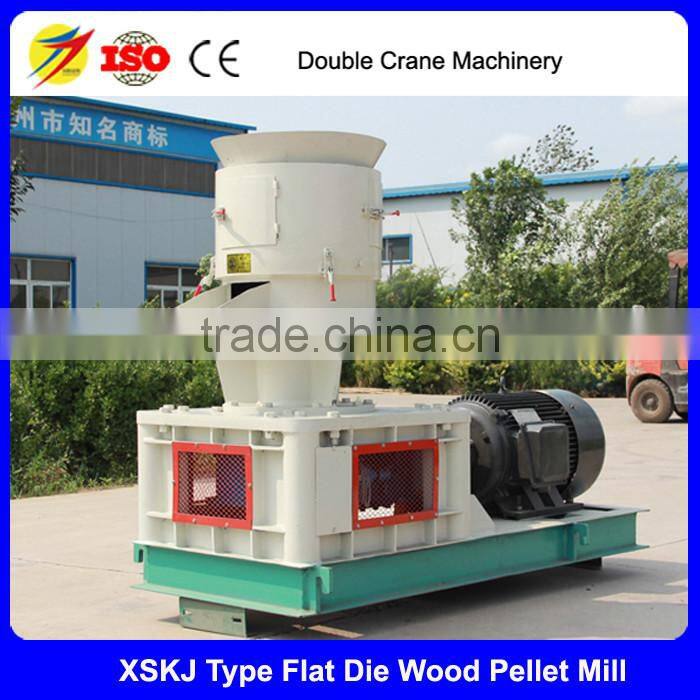

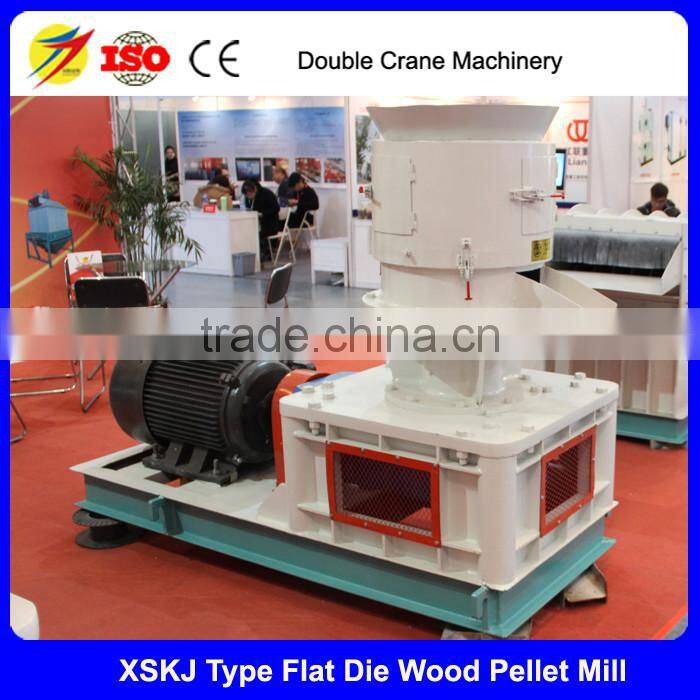

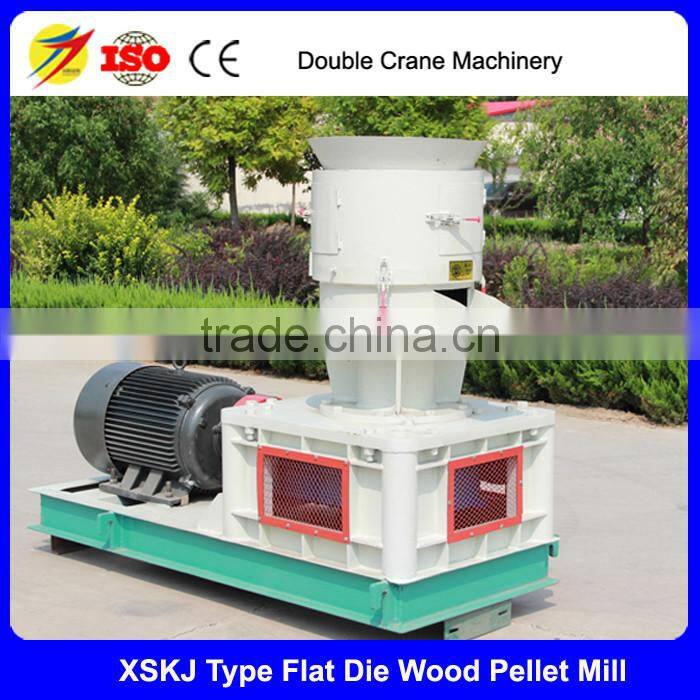

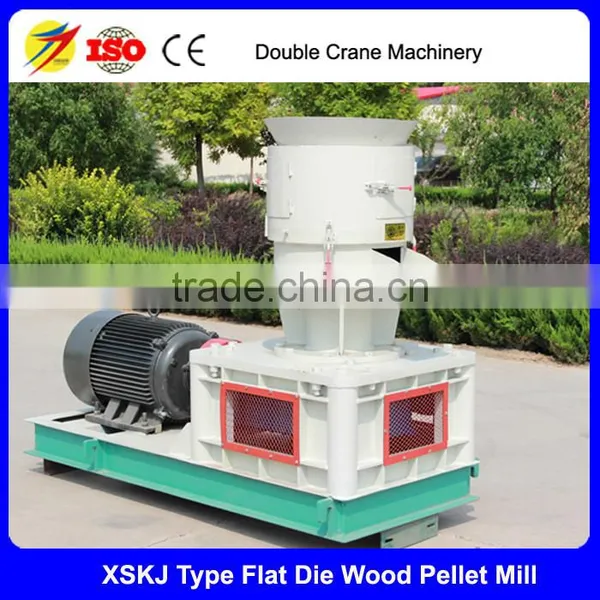

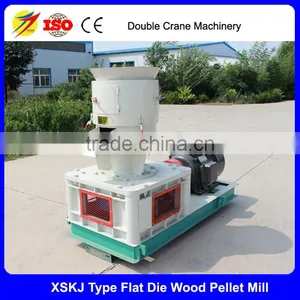

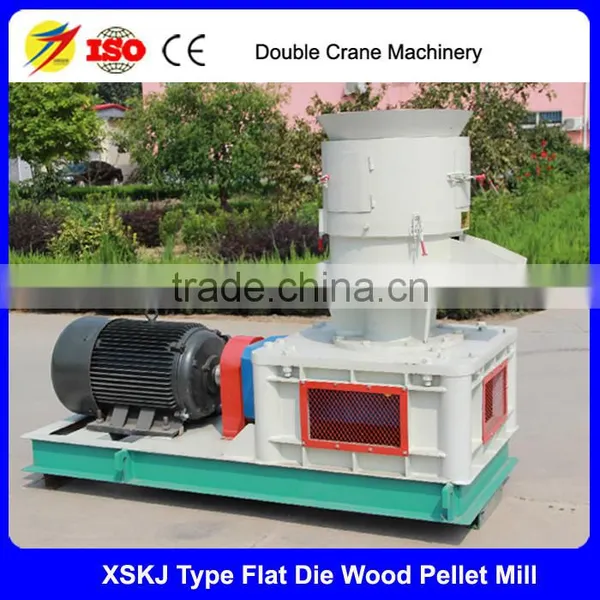

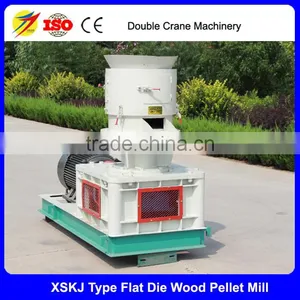

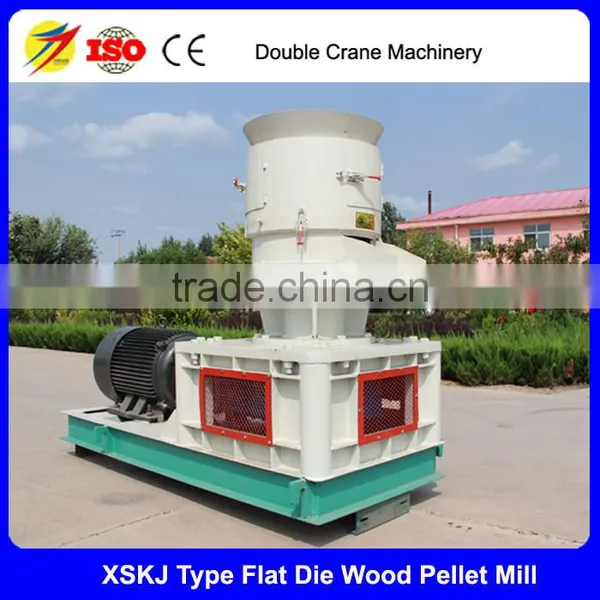

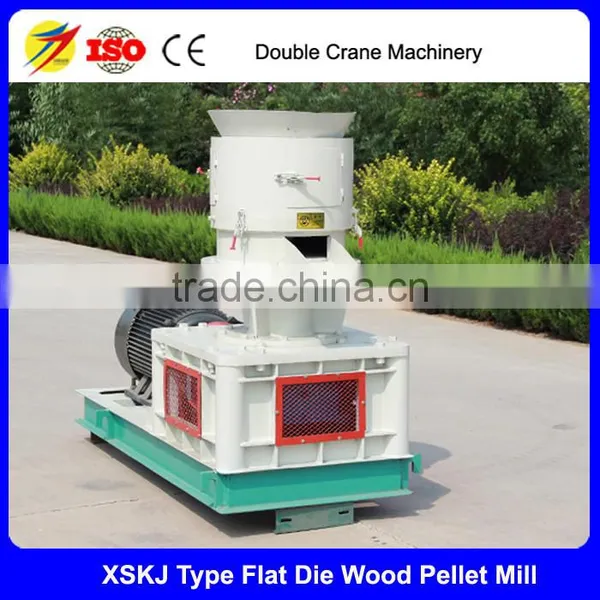

Double Crane Brand XSKJ-Series Flat Die Type Wood Pellet Mill Brief Introduction:
XSKJ-Series Flat Die Wood Pellet Mill is a Multi-function wood pellet mill machine,it can press the material (wood waste,sawdust,corn stalks, peanut shells, straw, cotton, wood stalk, branches,feed material and other raw crushed material) to high-quality and high-density pellets.
1.The pellet machine roller shape is cone shape. Make its mold outside speed is consistent, Don't appear dislocation of the pressure wheel and the mould friction, reduce the resistance and reduce kinetic energy loss, prolong the service life of the mould.
2.With compact structure, beautiful appearance, high output, low power consumption, easy maintenance and operation, reliable work, etc.The wearing parts cover parts very easy to replace wearing parts.
3.This biomass pellet machine can produce wood pellet diameter from Φ6 or Φ8mm.
4.Adopt international advanced manufacturing equipment processes of steel flat die and roller assembly,
long use life, the brand reducer make sure pellet mill work smooth to produce high quality wood pellet.
XSKJ-Series Wood Pellet Mill Main Model:
| Type | Power (kw) |
Output (kg/h) |
Pellet Diameter (mm) |
Equipment Dimension (m) Weight (kg) |
| SKJ-200 | 7.5 | 30-80 | 6 |
Size:1.13*0.44*0.87m Weight:280kg |
| SKJ-250 | 18.5 | 80-180 | 6 |
Size:1.4*0.6*0.6m Weight:340kg |
| SKJ-300 | 22 | 100-300 | 6 |
Size:1.6*0.7*1.3m Weight:460kg |
| XSKJ-350 | 22 | 300-400 | 6 or 8 |
Size:1.5*0.65*1.3m Weight:700kg |
| XSKJ-400 | 30 | 350-450 | 6 or 8 |
Size:1.4*0.7*1.6m Weight:810kg |
| XSKJ-450 | 45 | 500-700 | 6 or 8 |
Size:1.7*0.85*1.6m Weight:2100kg |
| XSKJ-550 | 55 | 700-1000 | 6 or 8 |
Size:1.7*0.85*1.6m Weight:2000kg |
Produced Wood Pellet Picture Show:Pellet Diameter Can Select 6mm or 8mm
Related MXLH-Series High Grade Vertical Ring Die Pellet Mill,Including Lifting Device:

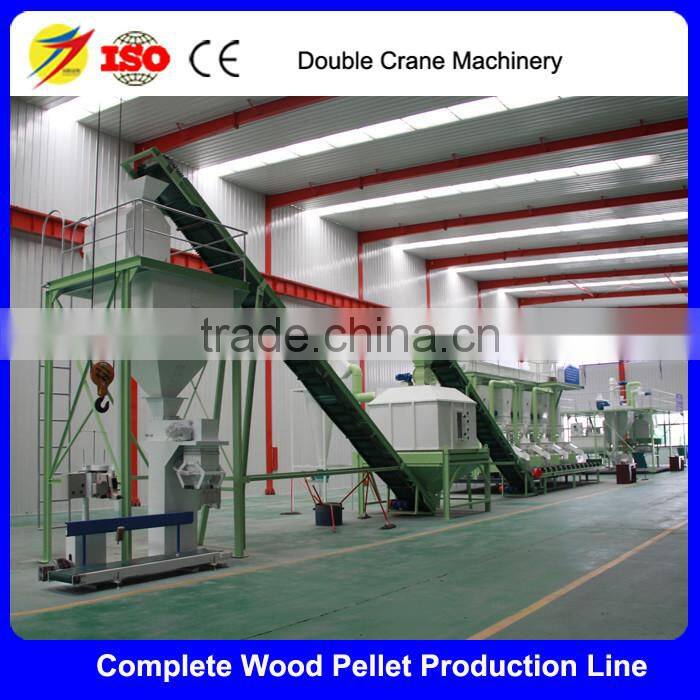

MXLH-Type Wood Pellet Production Line Located in Our Company Exhibtion Hall:
Full Container or Wooden Box Packaging & Shipping Picture:
About Professional Service:
1.We devote to all-round service of all the products from inquiry,production,shipment to maintenance.
2.Our professional service include:free design,offer,provide training,guidance,onsite installation,and debugging.
3.After selling, we provide the warranty of one year and free technical guidance and spares parts supply.
4.If your equipments have any problems, we will help you to solve online or onsite in time.
5.Welcome oversea agents to join us expand internation market. Join Double,Win Our Future!
6.Welcome to contact us for further cooperation information!
XSKJ Series Biomass Energy Pellet Machine Pass CE Certificate:
Double Crane Machinery Area 67000m² Office Building And Workshop Pictures Show:
Shandong Double Crane Machinery Manufacture Co.,Ltd. is located in economical and technological development zone,
Leling city,Shandong province,very close to the expressway from Beijing to Shanghai.Our company is the high and new technological enterprise dedicated to manufacture feed pellet machines and biomass pellet machines to worldwide users.
Sticking to the product developing ideas of simplicity,perfection,quality and innovation,we have been always focused on designing and manufacturing feed pellet machines and biomass pellet machines since the foundation in 2005.We had cooperated with domestic famous universities like Shandong University,Jinan University and Shandong Agricultural University in feed pellet production line and biomass pellet production line research and development since 2008.We had obtained more than 30 patents and successfully developed 8 series of products,including 60 different kinds of machines.
In the feed pellet industry ,we had achieved advanced level in man-machine design,functional design,automatic control
and user experience and became the professional pellet mill manufacturer in China.We have strong competitive advantages in feed production line with the capacity of 1-30 tph and biomass pellet complete line with capacity of 1-50tph.Until now,we had installed more than 1200 sets of machines worldwide.
In recent years,our company continuously increase investment.We had invested up to 60 million Yuan to build 19,200 square meters manufacturing base and 10 million Yuan for technological innovation,in-depth automatic and integrative technology development.These investments have greatly promoted the upgrading of the machines,offering best quality solutions for feed industry and biomass pellet industry.Double Crane Machinery is willing to become your partner with our high price-performance products,excellent quality and perfect after-sales service.
Join our company and win our future.
Double Crane Machinery Workshop Show:
If you're interested in our equipment, please kindly reply us the following question:
1. What's the wood pellet mill production capacity do you want?
R:We can supply wood pellet mill or pellet mill production line with output from 0.2-20t/h.
2. What's your wood raw material situation? Size and Moisture.
R:Our wood chipper and hammer mill can crush all kinds of material into wood sawdusts,advise wood moisture <60%,by drum dry can control it moisture around 15-18%,it will suitable to press wood pellet.
3. What's the final wood pellet diameter do you want?
R:Our company wood pellet mill can produce wood pellet with diameter 6mm or 8mm,it also can design according
to customer actual demand.
4. What's your country industrial electricity voltage?
R:General standard motor in China work under 380V,50Hz,3Phase,if not match,tell us we can modify motor.
Welcome to contact Jack to inquire detailed design and offer sheet:
