Factory price wood pellet machine to make wood pellets
Wood pellet machine
♣ Product Feature of MZLH series of Wood pellet machine
1.Main transmission is gear transmission with high precision and the ring die adopt the
technology of quick release and hoop type.So the efficiency is higher 20% than the belt transmission.
2.The transmission parts of the machine include bearing and oil seal,they are imported and high
quality so as to ensure the transmission efficiency, stable, low noise.
3. Using the compensation type snake-like spring coupling with high quality. It have the advantages of novel structure, compact,safe,low fault etc..
4. The machine have special feeding mechanism,it can make the feeding evenly.It is special
designed for pressing various lightweight materials of 0.3-0.6g/cm3.
5. The machine is equipped with overload protection device and can protect the main machine
in the working process.
6. The rotating speed of the feed auger is adjustable to meet various output.
7. The ring die is manufactured by advanced machine with high technology and the material is
alloy steel,so the life time is very long and the wood pellet produced by this ring die have high
quality and smooth apperance.
8. The machine have mould lifting device,it is convenient to replace the new mould for our
customer.
♣ Technology Parameter of MZLH series of Wood pellet machine
Type | Main Power | Feeder Motor | Forced Feeding Motor | Ring Die Diameter | Production Capacity | Noise | Dimension |
MZLH 420 | 90kw | 2.2kw | 0.75kw | 420mm | 1-1.5t/h 6-8mm | ≤80dB (A) | 2.9*1.3*2.3m |
MZLH 508-1 | 110kw | 2.2kw | 1.5kw | 508mm | 1.2-1.5t/h 6-8mm | ≤80dB (A) | 3.05*1.35*2.45m |
MZLH 508-2 | 132 | 2.2kw | 1.5kw | 508mm | 1.4-1.8t/h 6-8mm | ≤80dB (A) | 3.05*1.35*2.45m |
MZLH 508-3 | 160 | 2.2kw | 1.5kw | 508mm | 1.5-2t/h 6-8mm | ≤80dB (A) | 3.05*1.35*2.45m |
♣ Working process of MZLH series of Wood pellet machine
A. Preparing raw materials: All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher.
B. Drying process: Before going to the pellet machine, the moisture of sawdust must be controlled in 10-15%. This process can be realized by a drum dryer.
C. Feeding process: The dry sawdust is delivered by a conveyer into the stock bin which is installed over the feed hopper.
D. Pressing process: After the sawdust delivered into the ring die of wood pellet machine, we can start the wood pellet machine. The sawdust will be pressed through rollers. The resulting pressure compresses the sawdust and extrudes it through the holes in the die

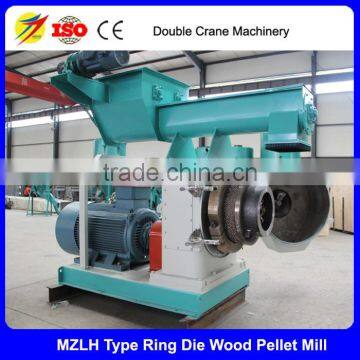

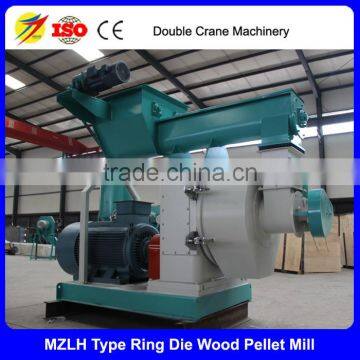

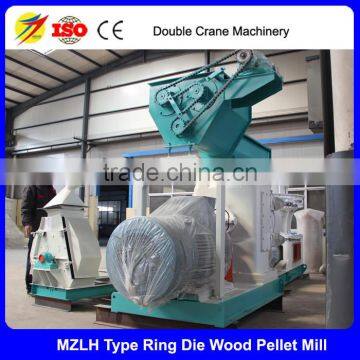

♣ Pictures of MZLH series of Wood pellet machine
♣ MZLH series of Wood pellet machine is used in the whole production line
♣ End Products---Biomass pellets
Single Machine will be packaged in wooden cases and the whole production line equipment will be loaded in the whole container;
♣ Found in 2005, Shandong Shuanghe Machine Manufacture Co.,Ltd. located in Leling High-tech Industrial Park,Dezhou City, Shandong Province,China. Distance from the Dezhou East Railway Station only one hour,Distance from the Jinan International Airport two hours.
♣Shandong Shuanghe Machine Manufacture Co.,Ltd. is a modernized and experienced enterprise which is specialized in research, manufacturing, and sale of wood pellet equipment,vertical ring die wood pellet machine, ring die wood pellet machine ,small wood pellet machine,flat die wood pellet machine,biomass pellets &briquetting equipment,Stove use wood pellet machine,wood pellet production line etc.
♣Nowadays, most of the countries are developing low-carbon recycling economy with energy conservation and emission reduction, straw &forestry waste comprehensive utilization. with this growth strategy,our company concentrate on biomass solutions for thermal use and power generation, such as wood chips, pellets etc.
1. Our professional service includes: free training, guidance, installation,and debugging.
2. After selling, we provide the warranty of 3 years.
3. If you have any problems, we will help to solve on line or live in time.
4. We are manufacturer of complete feed pellet production machinery line,including pre-cleaning,feed crushing, mixing,pelleting,conditioning,cooling,crumbling,sifting, packing and other procedures.The productivity of which ranges from 1 ton to 20 tons.
5. With well-trained and experienced technicians,professional R&D and manufacturing team,we are capable of designing and customizing special equipment according to requirements of our customers.In recent years, we have absorbed worldwide advanced technology and kept launching new products and improving the quality.
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer having specialized in this business for almost 10 years and we are capable of offering you the most favorable prices and the finest quality.
2. Q: How can I get to your company?
A: You can get a flight to Jinan Airport and We are just about 1hours away from Jinan Airport. Or you can flight to Beijing and take the highspeed from the Beijing South Railwany Station to Dezhou East Raiway Station.We will pick you up.
3. Q: How long is your warranty period?
A: One Year (Calculated from the equipment arrives the customer’s side).
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Have you sold your products to Europe?
A: Yes, We have designed and installed more than 1000 turnkey pellet lines. Many of our customers are from Europe, including Latvia, France, Grezece, Romania, Lithuania, etc.
If any of our machine interests you,please do not hesitate to let us know.I am Shirley and we will help to solve on line or live in time.
Please rest assured that we are capable of supplying the finest quality and the most favorabnle prices for you.
