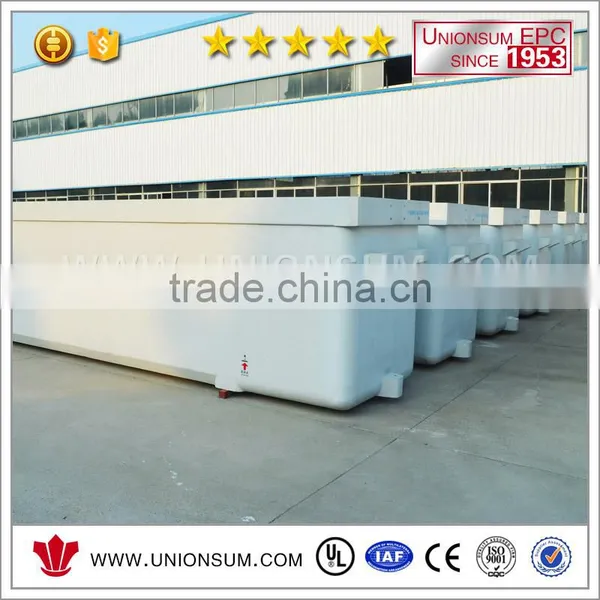

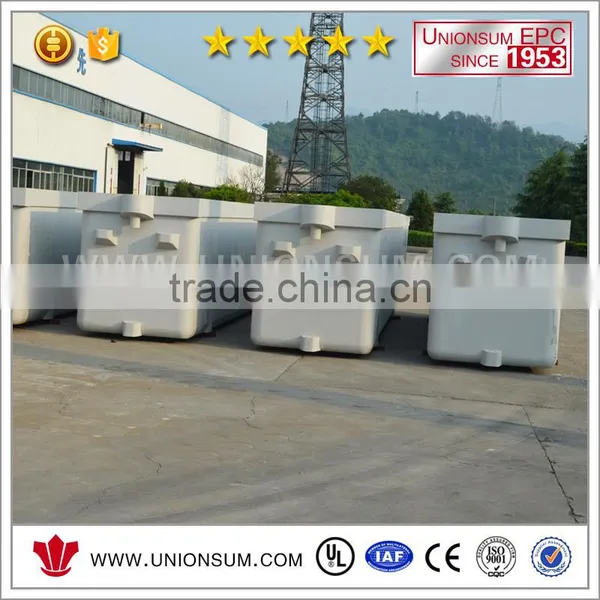

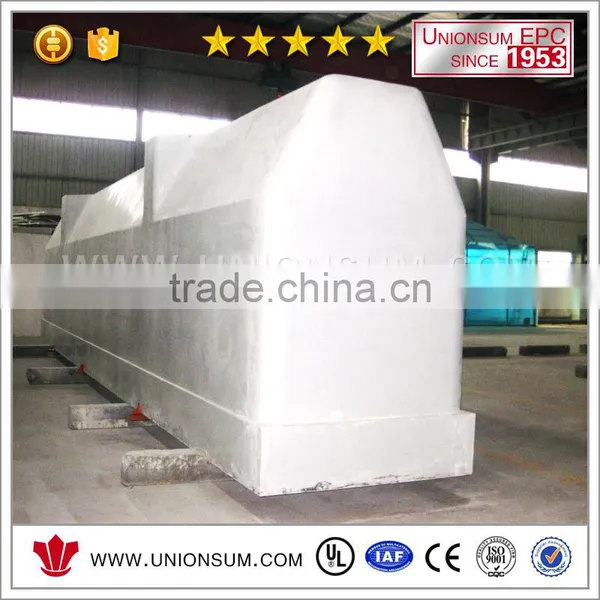

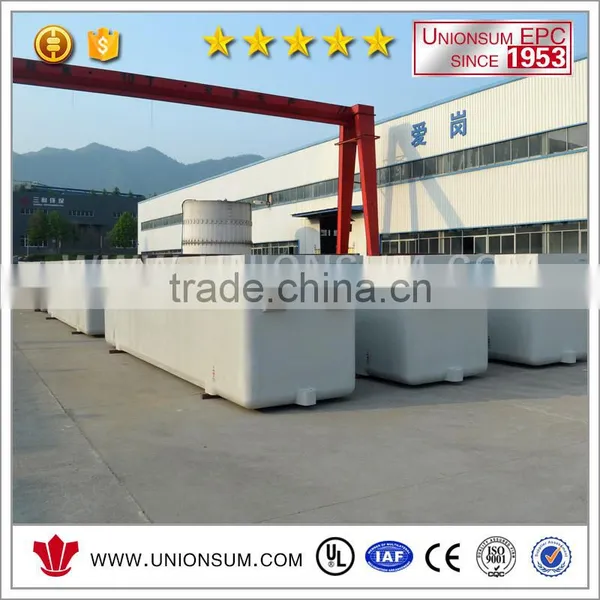

Polymer Concrete Electrolytic Cell for Zinc metallurgical plant

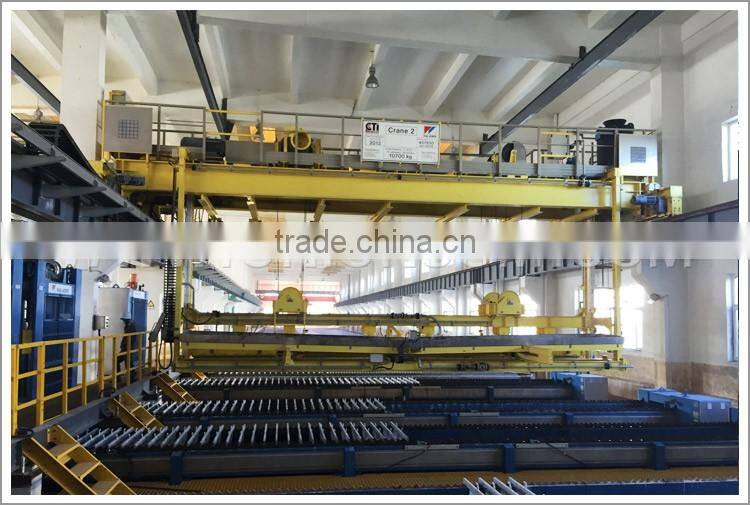

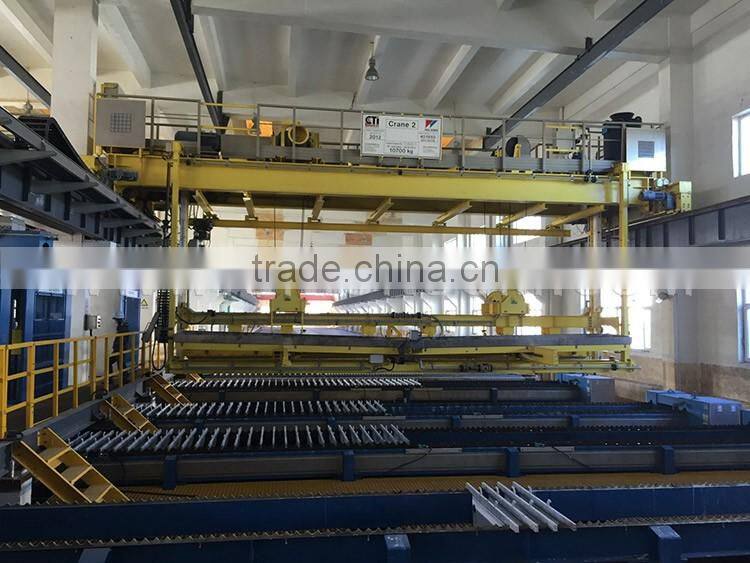

Unionsum provides tailor-made, environmentally sound and optimized solutions for Zinc electro-refining / electro-winning plants. Crane positioning pin, acid mist pipelines, and anode mortise are embedded with cells.
1. Lifetime And Operating Cost
Under normal working operation, the lifetime of the cell body is equal or greater than 20 years. There is not parking lost and maintenance cost unless the man-made or an accident. The operating cost is almost zero.
2. Warranty Period
We supplies goods with a warranty period of 18 months from delivery to customer or 12 months from the equipment on site installation and commissioning. In the warranty period, if the equipment or the parts emerge quality problems for our reasons, we offer repairing or exchanging service for free, and the warranty will be extended for another 12 months.
3. Technical parameters
Performance parameters |
Index |
Compressive strength |
130.5MPa |
Bending strength |
23.55MPa |
Flexural Modulus |
3.36×104MPa |
Density |
2.25×103Kg/m3 |
Thermal conductivity |
6.63KJ/(m•h•k) |
Specific heat |
0.741 KJ/(Kg•°c)(20.1°c—30.5°c) 0.800 KJ/(Kg•°c)(30.5°c—40.8°c) 0.890 KJ/(Kg•°c)(40.8°c—50.7°c) |
Coefficient of thermal expansion |
16×10-6/K |
Mass resistivity |
3.56×1012Ω•cm |
Sheet resistivity |
5.95×1011Ω |
4. Application
we can provide electrolyte cell with length over 13m or other dimension as customer required.
Prospecting Mining Metallurgy Processing Trading EPC service
Unionsum, a subsidiary of CRIMM, provides sustainable system solution for mining and
metallurgy industry, including engineering, procurement and construction, and offers a widerange of
scientific research and consultingservices.
Clients Visiting
Global Market
Vacuum distillation project at Bulgaria Rotary Furnace at Thailand
