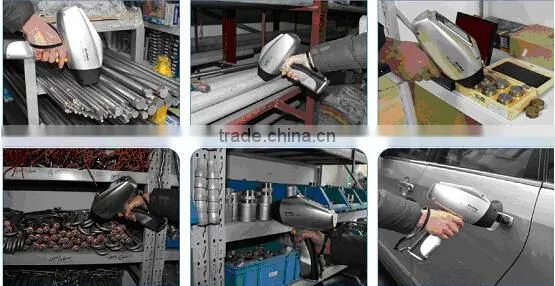

Beethor X3G800 Alloys and Metals Handheld XRF Analyzer
The Beethor X3G is a reliable and rugged analyzer that maximizes both speed and accuracy. The need to determine whether an ID is incorrect or if longer testing is required needs to be balanced with maximum testing speed without increasing the risk of mistaken IDs or erroneous readings. Lanscientific Beethor X3G’ SmartReal solution automates all these decisions, enabling even inexperienced operators to maximize both speed and inspection accuracy. This powerful feature yields optimized throughput and accuracy, making the Beethor X3G an extremely productive XRF tool for alloy inspection.
Configured with a standard package of more than 25 elements, the Beethor X3G generates alloy chemistry and grade ID in seconds. From simple sorting to challenging grade separations, the Beethor X3G provides highly specific material chemistry to rapidly and accurately identify Pure metals and alloy grades including, but not limited to:
• Chrome-moly steels • Nickel-cobalt alloys
• Stainless steels• Cobalt alloys
• Zinc alloys• Zirconium alloys
• Titanium alloys• Tool steels
• Copper alloys• Exotic alloys• Nickel alloys
Specifications
Model: Beethor X3G800
Weight: 1.5 kg with batteries
Dimensions: 30cm(L)*23.5cm(W)*9.8cm(H)
Excitation Source: X-ray tube with Ag target; max voltage 50KV
Filters Five (5) available automatic filter positions
Detector: Peltier cooled 10 mm2 Silicon Drift Detector
Power: 2 rechargeable Li-Ion batteries; 6 hours operation per battery; Operating Range: -10°C to 50°C
Computer/Display: with 65,536 colors; back lit; touch screen
Testing Modes Assay and Pass/Fail
Universal (automatically selects proper calibration); Polyethylene plastics; PVC
plastics; Mid-density (glass, ceramics); Alloys; Solders
Data Storage: 16GB standard memory.
Radiation Safety Password protected, No sample (backscatter) shutoff, five minute inactive log-in
Languages Supported: English, Chinese and other 5 languages
Warranty: One year
The Beethor X3G Knows Metal and Alloys
Standard Accessories
Waterproof Carrying Case
Two (2) Li-ion Batteries
User Interface Guide
Mini USB Cable
316 Stainless Steel Calibration Check Reference Coin
Integrated Wrist Strap
Analyzer Software
Factory Authorized Training and Support
