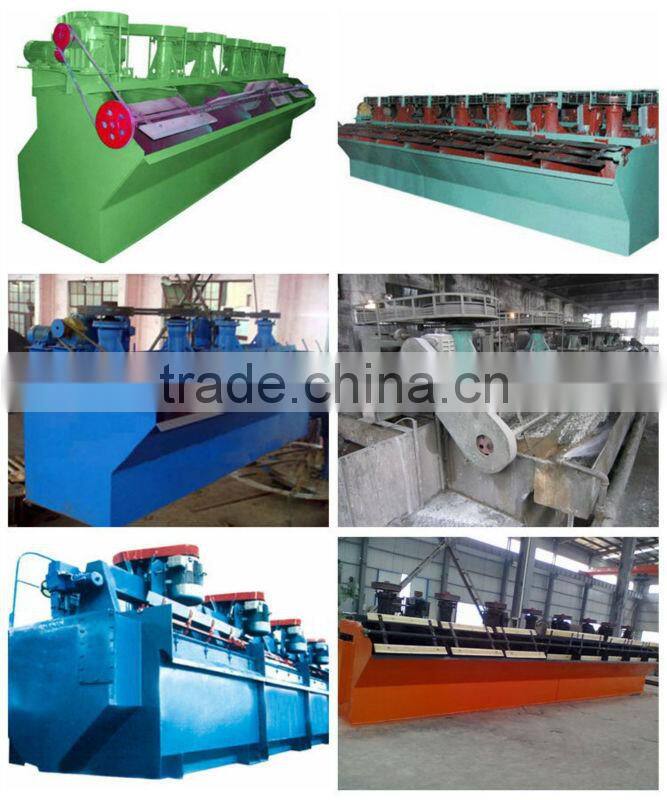

High efficiency flotation machine for mineral processing
Application:
The flotation is widely used for separating and concentrating the non-ferrous metal, black metal and nonmetal mine.
The works principle and the structure of machinery:
1. This is mechanical mixing flotation machine by the impeller.
2. The machine is mainly made up by filling slurry chute, mixing device, inflatable device, the device of discharging mineralized bladder, motor etc.
(1)The filling slurry chute: It has the feeding mouth and strobe device for adjusting the surface of mine slurry .It is made up by chute of jointing by armor plate and strobe of jointing by round steel.
(2)The mixing device :It is used for mixing mine slurry to prevent the mine sand deposits at the bottom of chute .It is made up by strap wheel ,impeller ,upright axis etc, impeller is made of wearable rubber.
(3)The inflatable device: It is made up by pipe and inflatable pipe .When impeller is turning, impeller cavity brings negative pressure ,which makes the air suck into by the empty pump and distributes in mineslurry to form the bladder .The mine slurry with bladder is thrown to stator by the turn force of impeller and makes bladder that in the mine slurry fine further and avoids the turn movement of mine slurry stream that in the chute ,produces lots of raising upright micro bladder and provides the necessity condition for flotation .
(4)The device of discharging mineralized bladder: it scrapes the bladder that floats on the surface of the chute and is mainly made up by reducer, scrape board.
3. Working principles:
When the mine is grinding or after grinding, add water and necessary medicine produces the mine slurry after mixing, feed into the chute that begin to mix, add air into mine slurry to produce lots of bladder .The mine that not easily wet by water attaches the bladder and float to the surface of mine slurry together to produce the mineralized bladder floor .And the rest leaves in the mine slurry and discharges themineralize bladder to reach the concentrating purpose.
Energy saving copper flotation separator machine is popular for applications amongst the separation of ferrous and non ferrous metal for example fluorite and talc. It has an impeller which will create centrifugal forces in the form of negative pressure.
Energy saving copper flotation separator machine is widely used in chemical, construct, metallurgy, machine making, food, food processing, feed processing, environmental protection and ceramics.
Technical parameters of Energy saving copper flotation separator machine
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
SF8 |
|
Trough capacity(m3) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
8 |
|
Blade diameter(mm) |
300 |
350 |
450 |
550 |
650 |
T60 |
|
Production capacity(m3/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
4-8 |
|
Impeller rotation speed(m3/min) |
352 |
400 |
312 |
268 |
238 |
191 |
|
Motor |
Model |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
Y250M-8 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
Y100L-6 |
||
Power(kw) |
1.5 |
3 |
5.5 |
11 |
15 |
30 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
1.5 |
||
Dimensions(mm) |
700*700*750 |
900*820*950 |
1100*1100*1100 |
1700*1600*1150 |
1850*2050*1200 |
2200*2900*1400 |
|
Single trough weight(kg) |
468 |
600 |
1373 |
2338 |
2660 |
4486 |
|
