Specifications
Pellet Machine:1.1.5t/h pellet machine;
2.Easy to operate;
3.Simens motor for pellet machine;
4.CE,ISO ,SGS ,BV
CE Approved Oak Firewood Pellet Machine/Wood Pellet Machine Price

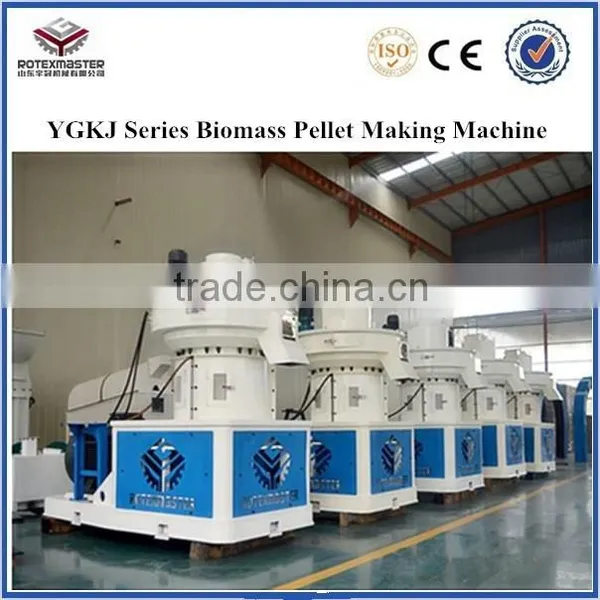

YGKJ Series Wood Pellet Machine 560,680,850
Tel: 0086-18615687600 Skype: pelletindustry03 Wechat:18615687600
>Products Introduction of Wood Pellet Machine
♦ YGKJ series vertical ring die pellet machine absorbed the essence of pellet mill in oversea market,after our engineers improved,it had reached the international advanced level.
♦ The heart parts “double layer die” has unique structural assembly and “rollers” are made of high quality wear resistant alloy steel.These two parts have the following characters: particular design, reasonable structure, low energy, high efficiency, long service life and so on.
♦ YGKJ series verticaol ring die pellet machine is mainly applicable for difficult molding materials with low adhesion rate, for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, rind and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials. It can be used in feed mill, wood processing plants, fuel plants, fertilizer plants, chemical plants etc.
♦ Less investment,Fast return,No risk.

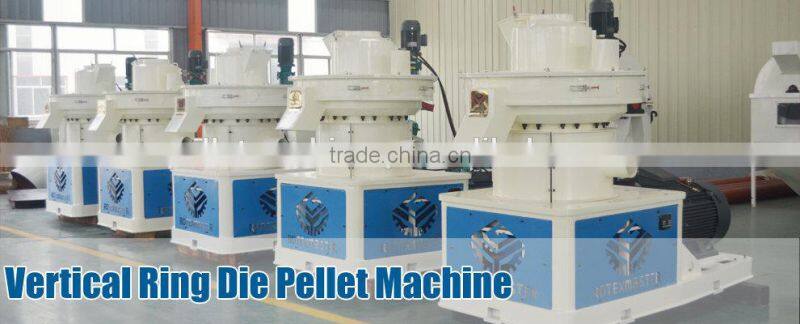

YGKJ series efficient vertical ring die pellet machine is an ideal dense
>Advantages of Wood Pellet Machine
Vertical hopper: This design can avoid the raw material be stuck in granulating room
Cooling system: As the pelletizing process will generate high temperature, it will lower the service life of die and bearing. Cooling system are considering this situation and avoid it happened
Double-layer dies: This design increase the efficiency of pellet making, reduce clients cost
Siemens frequency conversion motor: Sweden famous brand.
SKF bearing: Sweden famous brand, High precision, high speed, low noise, long life
Unique automatic lubricating system: Which lubricate the bearing, dies and rollers, increase the produce efficiency and reduce energy consumption. It can work continuous 20 hours.
>Technical Parameters of Wood Pellet Machine
Wood Pellet Machine | ||||||
Model |
Power (kw) |
Pellet Diameter (mm) |
Die Diameter (mm) |
Output Capacity (t/h) |
Dimension (mm) |
Weight (t) |
YGKJ560 |
90 |
4-12 |
560 |
1.2-1.5 |
2600*1300*2300 |
5.5 |
YGKJ680 |
160 |
4-12 |
680 |
1.5-2 |
2900*1300*2400 |
6.5 |
YGKJ850 |
220 |
4-12 |
850 |
2-3 |
3750*1650*3250 |
15 |
> More Picture Show of Wood Pellet Machine

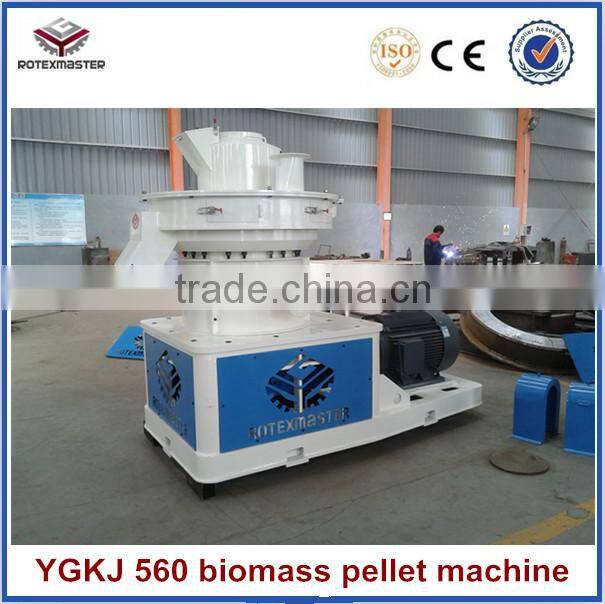

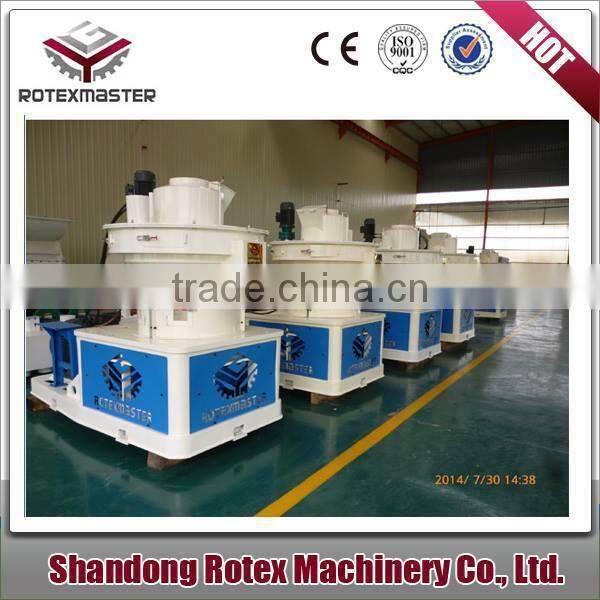

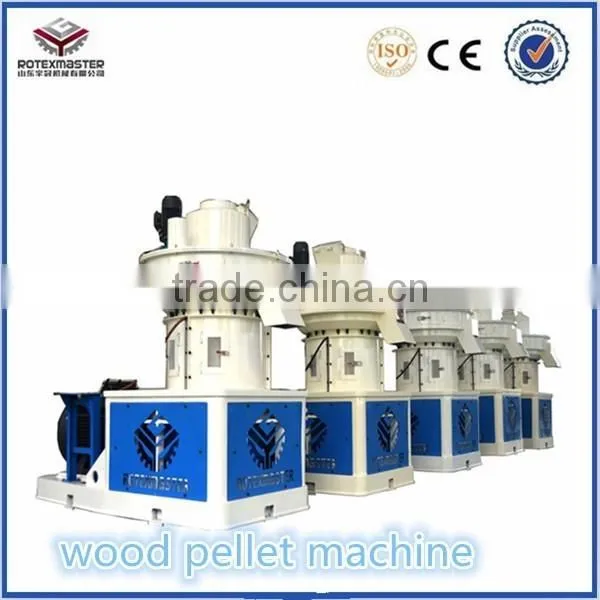

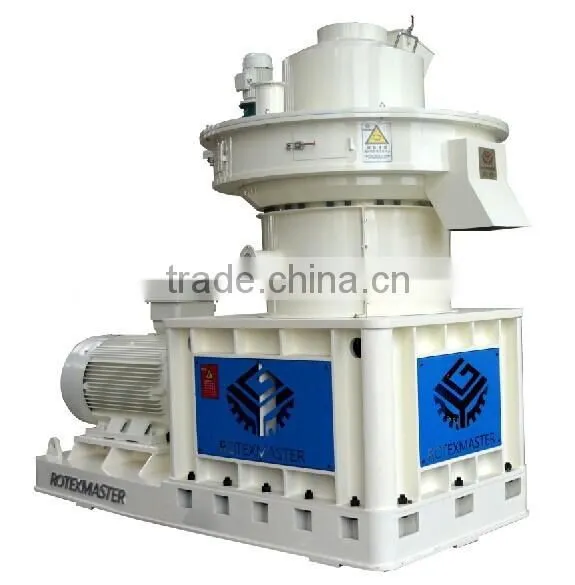

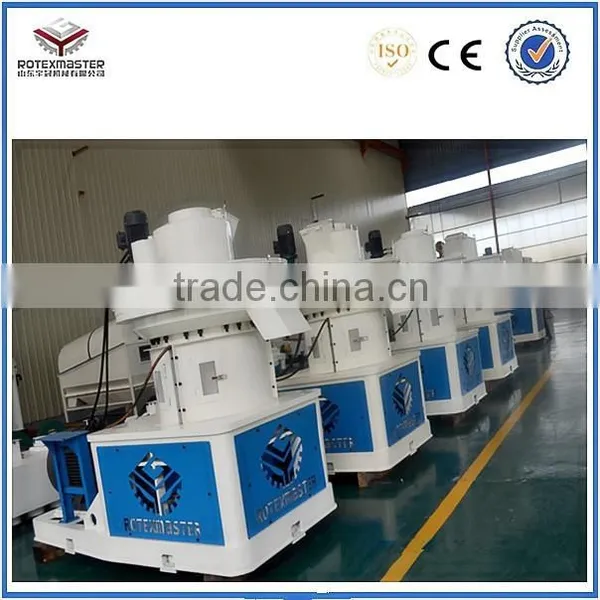

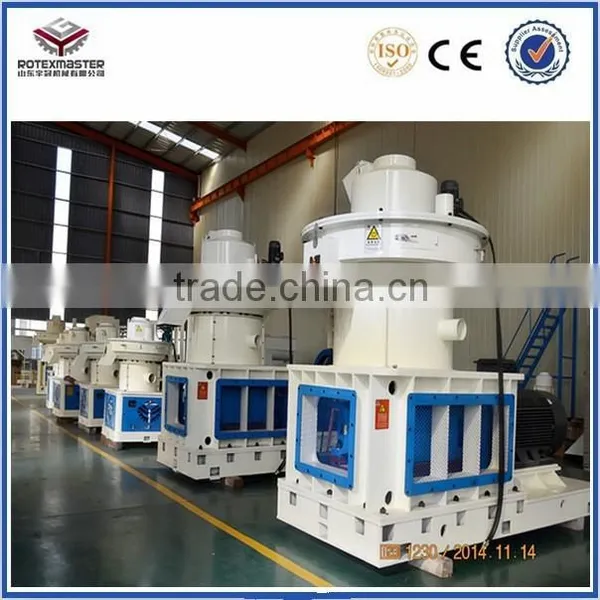

>1.5 ton/h Biomass Wood Pellet Machine

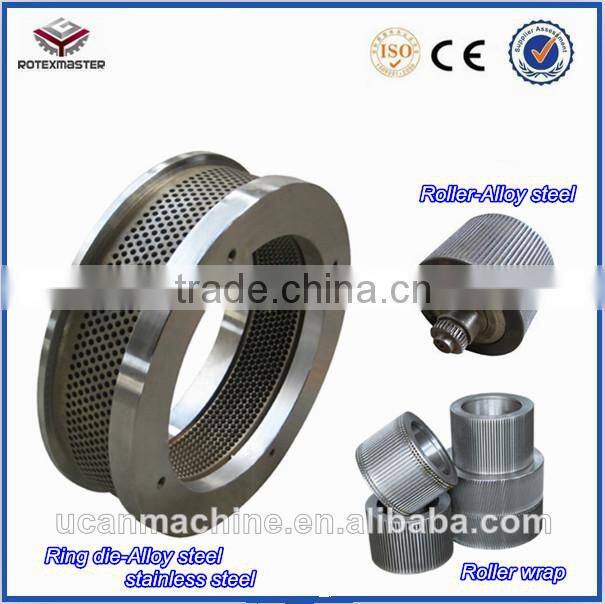

>Double-layer Die of Wood Pellet Machine

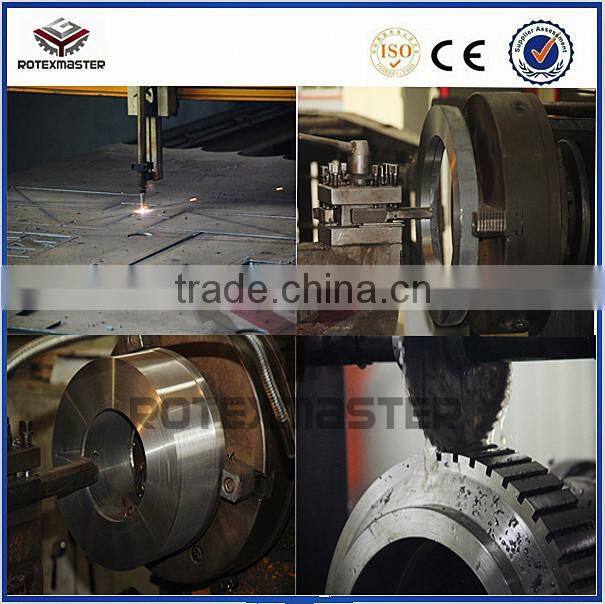

>Wear Resistant Alloy Steel Roller Made by High Precision CNC

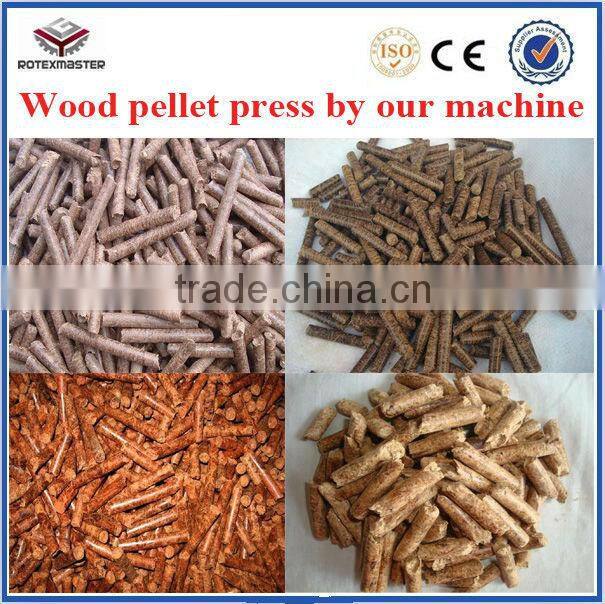

>Finished Wood Pellets Made by Wood Pellet Machine

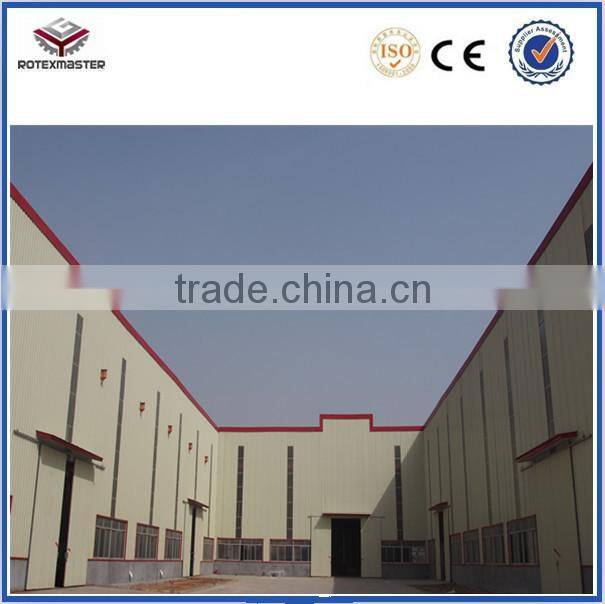

>Our Factory of Shandong Rotex Machinery Co.,Ltd
>Company Workers in Thailand Exhibition
>Certificate of Wood Pellet Machine
>After-sales Service
Caring service, carefully manufacture and desirable price make customers at ease.
"Customer-oriented": providing customers with whole considerate services;
"Service as core": providing the most suitable products to customers;
"Quality-centered": All-round services to every customers!
"Technical support": on-site technical training and technical advice available.
>Contact Info
Thanks for reading my products information. If you have any questions, please don’t hesitate to contact me, and then I will provide you the best and professional service.
