Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Master |
Model Number: | YGKJ560 | Voltage: | 380V | Power(W): | 90Kw |
Dimension(L*W*H): | 2600mm*1300mm*2300mm | Weight: | 5900Kg | Certification: | CE&iSO9001&BV |
Warranty: | one year except wearing parts | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

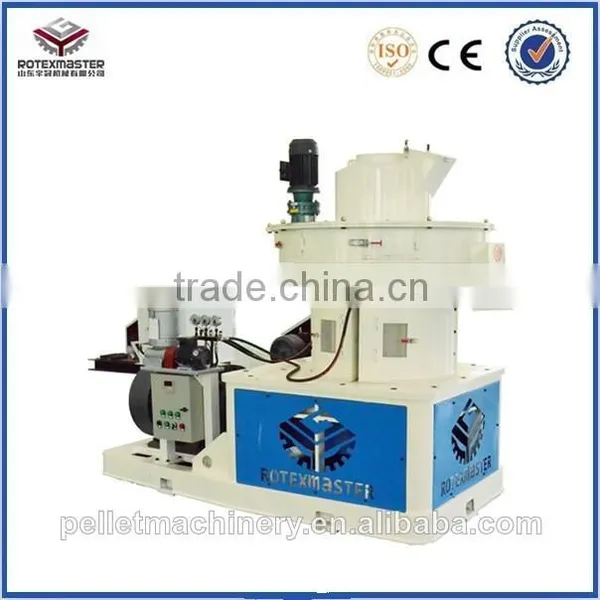

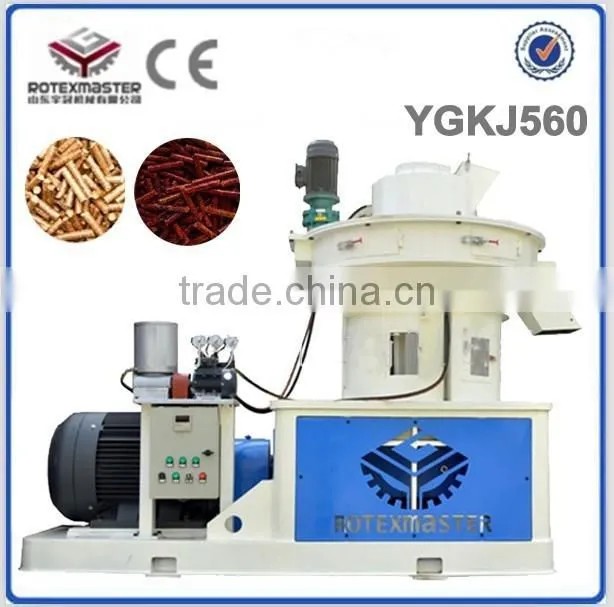

YGKJ560 series 1-1.5t/h capacity ring die sawdust wood pellet machine
YGKJ series550,560,580,850 types as your optional
Brief introduction of new design sawdust wood pellet machine:
YGKJ560 series vertical ring die wood pellet machine absorbed the essence of pellet mill in oversea market, after our engineers improved; it had reached the international advanced level.
The heart parts “double layer die” has unique structural assembly and “rollers” are made of high quality wear resistant alloy steel. These two parts have the following characters: particular design, reasonable structure, low energy, high efficiency, long service life and so on.
YGKJ560 series is mainly applicable for difficult molding materials with low adhesion rate, for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, rind and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials. It can be used in feed mill, wood processing plants, fuel plants, fertilizer plants, chemical plants etc.
Application of sawdust wood pellet machine:
Widely used for crude fiber granulator, such as sawdust, rice husk, cotton stalks, cottonseed skins, weeds,other crops straw and plant waste,widely used in large-scale complete pellet production lines.
Feature of sawdust wood pellets machine:
1. Vertical laying -flat dies, feed directly, idly range of application, good heat dispassion.
2. Vertical and double, dies, improve efficiency, reduce cost, the highest performance.
3. Die materials is Alloy steel, have a long life.
4. Machine weight is heavy, extend use life of machine.
5.24 hours working without stopping, automatic intermittent lubration, extend life of machine part.
Advantages of new design sawdust wood pellet machine:
Double-layer dies:This design increase the efficiency of pellet making, reduce clients cost.
Three rollers: This design increases the efficiency.
Unique automatic lubricating system: Which lubricate the bearing, dies and rollers?
Technical parameter of new design special sawdust wood pellet machine
YGKJ series vertical ring die sawdust wood pellet machine | ||||||
Type | Power(kw) | Pellets(mm) | Modelφ(mm) | Output(t/h | Dimension(mm) | Weight(t) |
YGKJ550 | 75+1.5+0.38+1.5 | φ4-12 | φ550 | 0.8-1.2 | 2300×1000×1780 | 4.8 |
YGKJ560 | 90+1.5+0.38+1.5
| φ4-12 | φ560 | 1.2-1.5 | 2600×1300×2300 | 5.8 |
YGKJ580 | 160+1.5+0.38+1.5 | φ4-12 | φ850 | 1.5-2.2 | 2900×1300×2400 | 6.5 |
YGKJ880 | 220+1.5+0.38+1.5
| φ4-12 | φ880 | 2-3 | 3750×1650×3250 | 12.6 |
Standard accessories of sawdust wood pellet machine
Work live-action of sawdust wood pellet machine
The product samples of new design sawdust wood pellet machine
Please kindly supply more informations about your need:
1.Q:what are your raw materials?
A:sawdust, straw, wood chipper, pine, palm, corn stalks, peanut shells, cotton,
branches, mushroom waster and so on.
2.Q:most suitable moisture of raw materials?
A: 13%~30%.
3.Q: the size of raw materials?
A:Φ4~Φ12mm or as your demand
4. Q: output capacity per hour?
A: 0.7-3t/h
5. Q: service voltage?
A: 380V, 220V or as your requirement
We'll quote our best price as your need details,so please kindly check and contact us.
After sales of sawdust wood pellet machine
Caring service, carefully manufacture and desirable price make customers at ease.
"Customer-oriented", providing customers with whole considerate services;
"Service as core," providing the most suitable products to customers;
"Quality-centered," All-round services to every customers!
Technical support: on-site technical training and technical advice available.
