[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine

[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine thumbnail-1
[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine thumbnail-2
[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine thumbnail-3
[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine thumbnail-4
[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine thumbnail-5
[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine thumbnail-6
[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine photo-1
[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine photo-2
[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine photo-3
[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine photo-4
[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine photo-5
[ROTEX MASTER] Discounting Efb Fiber/oil Palm Fiber Pellet Machine/palm Fiber Pellet Making Machine photo-6
US$ 20,000 - 34,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Rotex Machine
Contact Supplier Request Quote Chat Now
Shandong Rotex Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name Rotex Machine
Model Number YGKJ560
Voltage 380V
Power(W) 90kw+1.5kw+0.37kw+1.5kw
Dimension(L*W*H) 2600mm x1300mm x2300mm
Weight 5.8t
Certification CE&ISO9001
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas

Wood Pellet Machine

1.Brief introduction of YGKJ560 series EFB pellet machine

Suitable raw material:  rice husk, wood sawdust, agricultural straw, sunflower shell, coconut husk, palm fiber, oil palm trunk,, EFB,  bamboo, alfalfa, grass, hay or other biomass.

Machine application: biomass-energy fuels plant, power plant, wood processing plant etc.

Pellet application:It is especially suitable for low-bonding and unformed materials.

Pellet size: Generally speaking,it is 6mm or 8mm in line with the western standared.



 2. Features of YGKJ series EFB pellet mill

  • Wide applicable scope: it can press various materials,such as sawdust, rice husk cotton stalk, cotton seed hull, weeds and all kinds of crop straw, home wastage, waste plastics and the factory waste, the material of low adhesion rate, difficult to forming.

  • Vertical feeding easily for pressing pellet;
  • Oil pump with auto lubracation, protecting the machine bearing;
  • Large output with low energy consumption;
  • Double-layer die ,up and down use,  low price but good effect;
  • Our motor is imported from Siemens in Germany;
  • After-sale guarantee: one year warranty after sale service.

 3.Technical parameter



Model

Main electric motor(kw)

Steam fan blower motor(kw)

Electrical dry oil pump(kw)

Outlet motor

(kw)

Capacity

(t/h)

YGKJ450

55

1.5

0.37

1.5

0.8-1

YGKJ560

90

1.5

0.37

1.5

1-1.5

YGKJ580

160

1.5

0.37

1.5

1.5-2

YGKJ850

220

2.2

0.37

3

2-3





[ROTEX MASTER] discounting efb fiber/oil palm fiber pellet machine/palm fiber pellet making machine[ROTEX MASTER] discounting efb fiber/oil palm fiber pellet machine/palm fiber pellet making machine

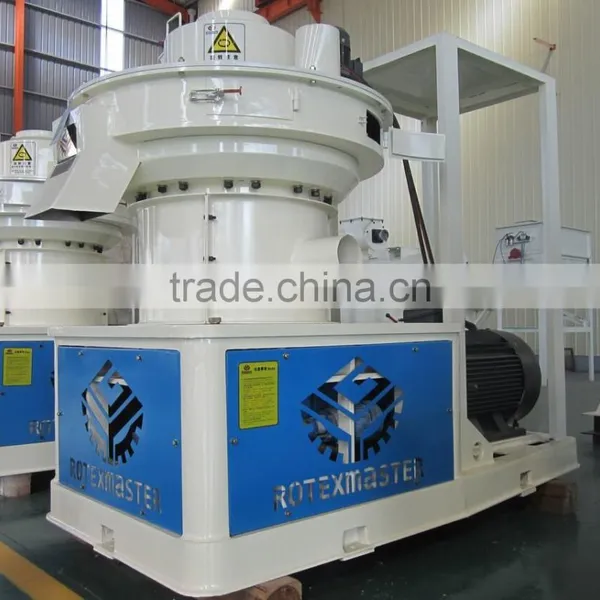

 Main Part of Wood Pellet Machine

[ROTEX MASTER] discounting efb fiber/oil palm fiber pellet machine/palm fiber pellet making machine[ROTEX MASTER] discounting efb fiber/oil palm fiber pellet machine/palm fiber pellet making machine[ROTEX MASTER] discounting efb fiber/oil palm fiber pellet machine/palm fiber pellet making machine

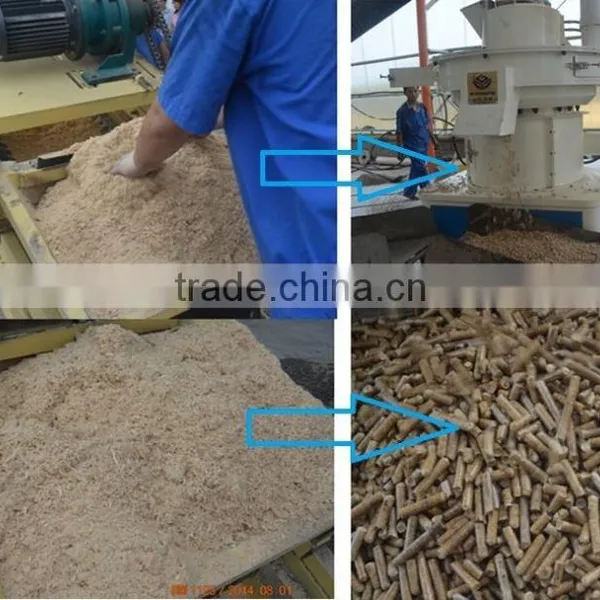

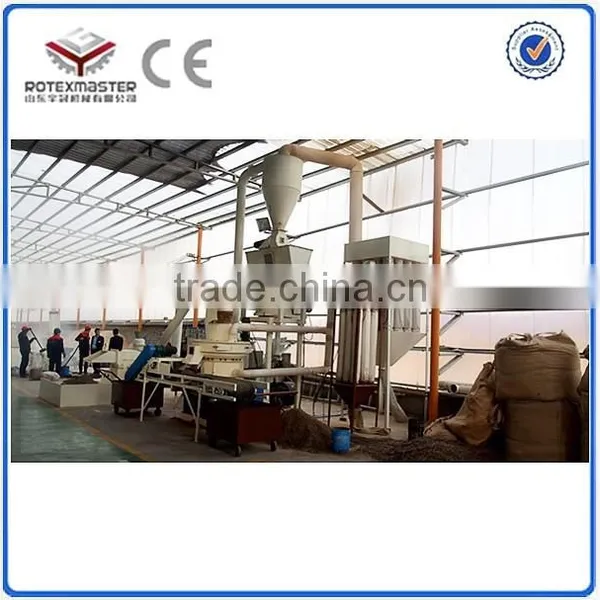

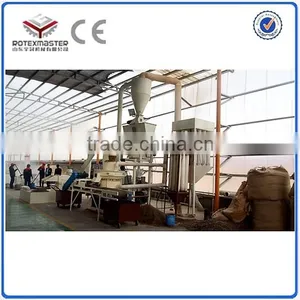

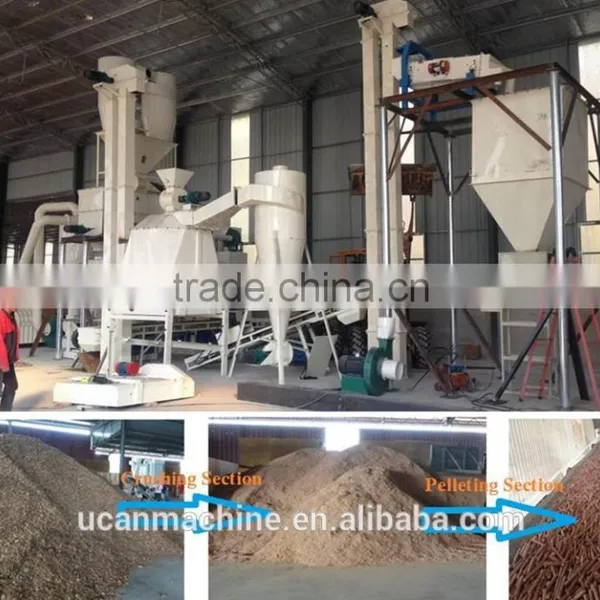

The Wood Pellet Machine Production Line

[ROTEX MASTER] discounting efb fiber/oil palm fiber pellet machine/palm fiber pellet making machine

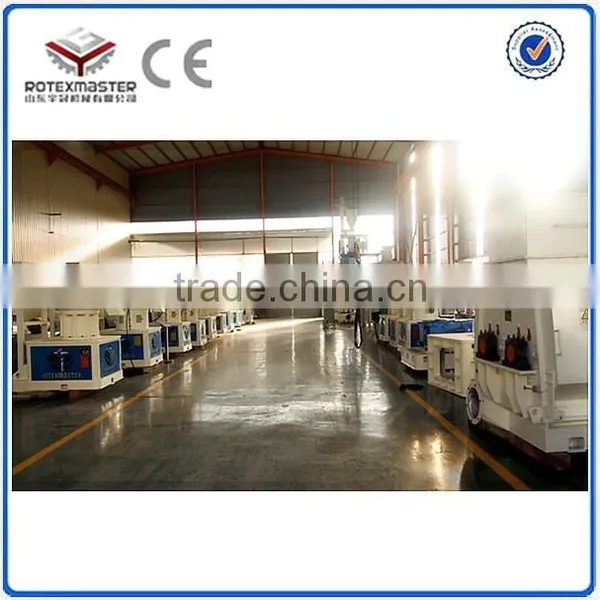

The Process of Making Parts of Wood Pellet Machine

[ROTEX MASTER] discounting efb fiber/oil palm fiber pellet machine/palm fiber pellet making machine[ROTEX MASTER] discounting efb fiber/oil palm fiber pellet machine/palm fiber pellet making machine


 Our company and trade team with customers from oversea countries

[ROTEX MASTER] discounting efb fiber/oil palm fiber pellet machine/palm fiber pellet making machine
