Specifications
wood pellet machinehigh quality high output
produce wood pellets
Huali or Siemens
CE ISO BV
new condition rice hull husk wood pellet machine , machine for make wood pellets vietnam
Product description of wood pellet machine
YGKJ series vertical ring die wood pellet machine absorbed the essence of pellet mill in oversea market,after our engineers improved,it had reached the international advanced level.
1.pellet diameter is adjustable,through the distance betwwen knife and die .
2.YGKJ series efficient vertical ring die pellet machine is an ideal dense compression molding equipment,high quality, the die and roller are stainless steel, heat -resisting and wear-resisting.
3. Vertical feeding, directly in pelletizing room.
4.Die is static, rollers rotate; materials are evenly distributed around pelletizing room because of centrifugal force, so the materail is even.
5. Double-layer die. Two layers both can be used for reduce the cost. High efficiency and save energy.
6. Ring die and vertical structure are good for cooling the pelletizing room.
7.Independent and frequency conversion discharge device can ensure the rate of pellet formation.
Apply to
wood pellet machine YGKJ850 is mainly applicable for difficult molding materials with low adhesion rate, for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, rind and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials. It can be used in feed mill, wood processing plants, power plants, fertilizer plants, chemical plants etc.
Technical parameters of wood pellet machines:
Model |
Main electric motor(kw) |
Steam fan blower motor(kw) |
Electrical dry oil pump(kw) |
Outlet motor (kw) |
Capacity (t/h) |
YGKJ560 |
90 |
1.5 |
0.37 |
1.5 |
1-1.5 |
YGKJ580 |
160 |
1.5 |
0.37 |
1.5 |
1.5-2 |
YGKJ850 |
220 |
2.2 |
0.37 |
3 |
2-3 |

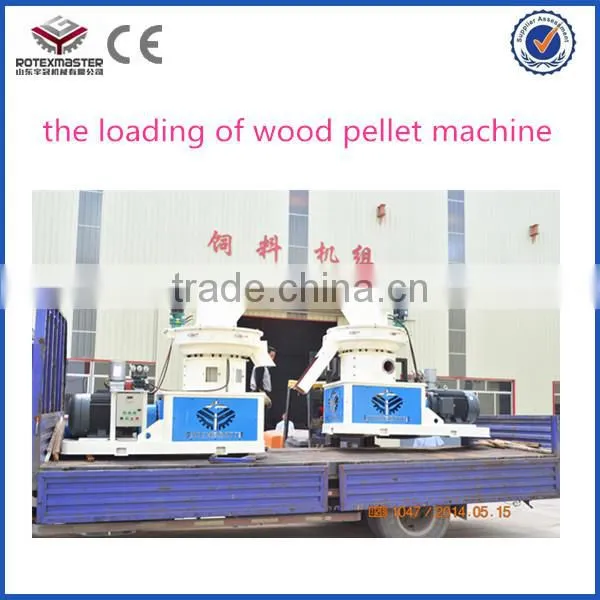

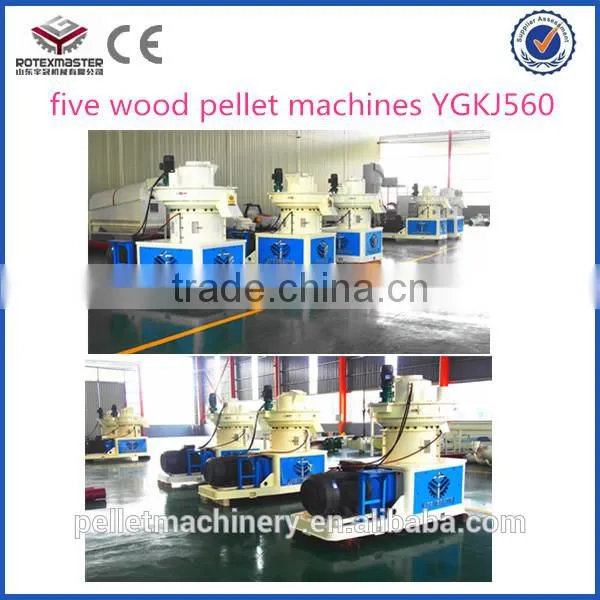

Wood pellet machine display

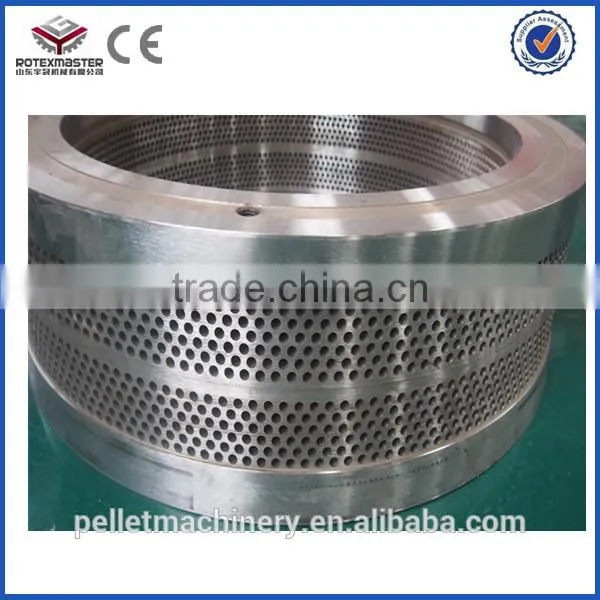

The main parts of wood pellet machine -Die
Wood pellets
nical guidance, according to your capacity and raw material ,recommend a suitable model
2.visit to our factory and have an investigation and performance test
s avialable to service machinery overseas.
4.warranty 1 year,quality gurantee, except wear parts and wrong operation
CE ISO BV
What are our advantages
1.in addition to CE ISO BV, quality gurantee, motor ,roller,every parts material from famous big factory
2.the machine base steel is bought from Jigang ,Laigang, famous factory in China, the small motor ,Huali, also famous in China, and the reducer Boneng, longest warranty:18 months.
3.the skilled workers and experienced R&D enginners, the advanced facilities are quality guarantee.
Photos display
