Specifications
wood pellet machinecapacity 1-1.5t/h
high efficiency
warranty 1 year
CE ISO BV
widely used wood pellet machine for corn stalk wood sawdust peanut cocoa shell rice husk
The well used wood sawdust pellet production line includs Machine 1 wood chipper ,machine 2 wood hammer mill,machine 3 dryer machine 4 wood pellet machine, machine5 cooler, machine 6 vibrating screener, packing machine
♦Machine 1 wood chipper: chip the wood log into small wood chips
♦ Machine 2 wood hammer mill:grind the wood chips or straw stalk into wood power.
♦ Machine 3 wood pellet machine:pelletize the wood pellet
♦ Machine 4 cooler; lower the temperature of wood pellet
♦ Machine 5 vibrating screener:screener the satisfied wood pellet
♦ machine 6 packing machine: pack the wood pellet in samll bags.
Advantages of wood pellet machine :
♦ Strong heat dispersion, stable and efficient, long life :die lay vertically ,with double –layer pressing room and die, die and roller is made of stainless steel
♦ Automatic oil pump, lubricate machine without stop, increase the working time and output
♦ Equilateral triangle roller to ensure conveying accuracy
♦ Main shaft designed to make sure the concentricity and reduce problems
Material of wood pellet machine:
rice husk, shell of sunflower seed, peanut shells and other various shells material; tree branches, wood sawdust, all kinds of wood scraps; Corn stalk, cotton stalk, all kinds of crops straw;
Applicant of wood pellet : The product is widely used in biomass fuel plant, power plant, household and factory.

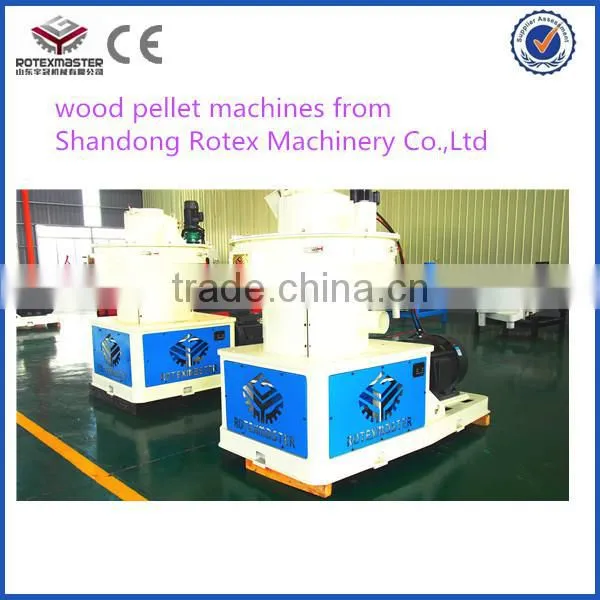

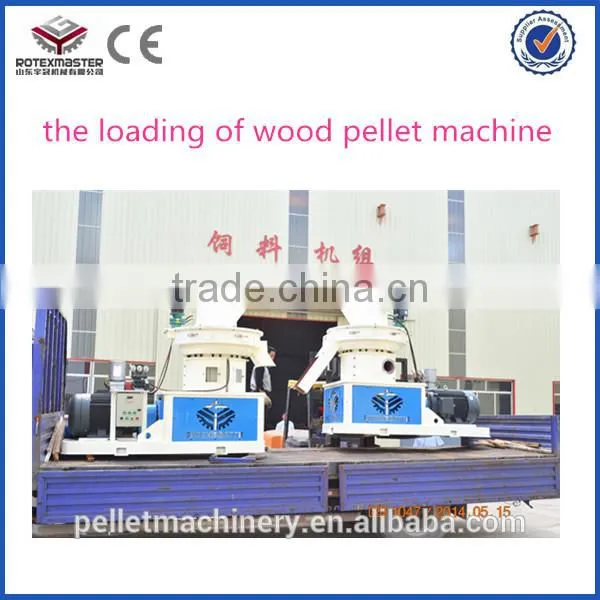

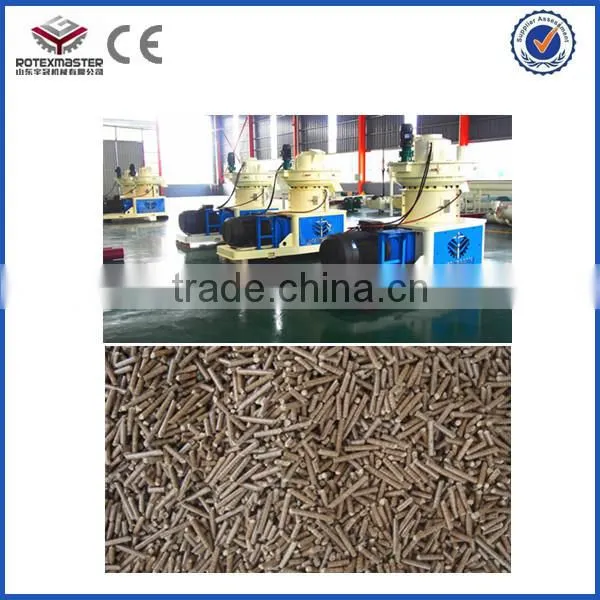

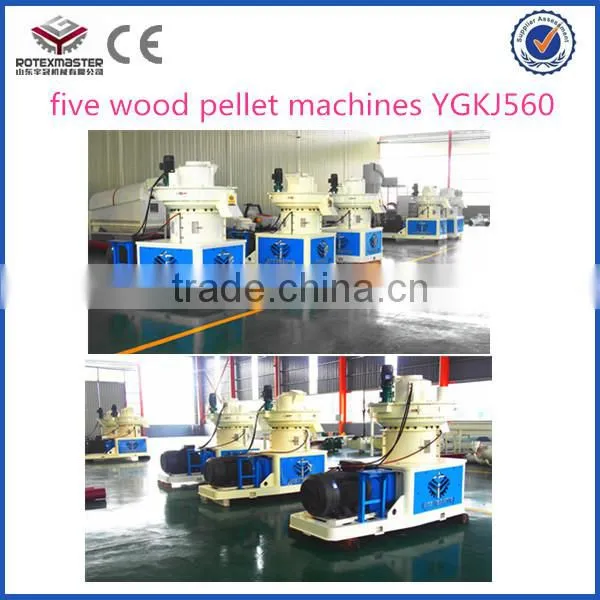

Photos Display
The roller and die
Technical parameter of wood pellet machine
Model |
Power KW |
Pellet Diameter mm |
Output kg/h |
Dimension mm |
YGKJ560 |
90+1.5+0.37+1.5 |
4-12 |
1-1.5 |
2600*1300*2300 |
YGKJ580 |
160+1.5+0.37+1.5 |
4-12 |
1.5-2 |
2900*1300*2400 |
YGKJ850 |
220+3+0.37+2.2 |
4-12 |
2-3 |
3750*1650*3250 |
♦ technology consultion, various models for choice, according to customers, needs design pellet machine
♦ visit to our factory, have an investigation and have a performance test.
♦ engineers available to service machinery overseas, provide install guidance
♦ warranty1 year, quality gurantee,except wear parts and wrong operation.
Rotex Master:YGKJ560 can press sawdust,cotton stalk powder,corn stalk powder,palm,etc to biomass fuel pellets.
The ideal humidity is 15%.
♦ Pellet diameter?
Rotex Master:YGKJ560 can prodcuce 4-12mm diameter,can adjustable.
♦ If you have any questions,please feel free to contact us
