Specifications
1.large specific surface,high porosity and light weight2.Small dip of air passageway
3.ISO9001
4.Ontime delivery
plastic structure packing as liquid's discharge
Plastic structured packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), polyvinylchloride (PVC) and chloridized polyvinyl chloride (CPVC).
plastic structure packing Advantage:
The plastic plate same metal corrugated plate packing as structure which can beperforated to increase the transfer efficiency. The honeycomb sloping pipe and the honeycomb straight pipe are existed as packings of water treatment,chemical tower and cooling tower etc.
Application:
mainly apply in the process of counter current absorption of low quantity of liquid’s discharge. Such as purification of tail gas
Plastic Structure Packing Technical Data:
Size |
Specifific surface area m²/m3 |
Void volumme % |
Wave height mm |
Bulk desity kg/m3 |
Packing factor m-1 |
125Y |
125 |
98.5 |
25.4 |
65 |
3 |
250Y |
250 |
97 |
12.5 |
85 |
2.6 |
350Y |
350 |
95 |
9 |
120 |
2.0 |
500Y |
500 |
93 |
6.3 |
150 |
1.8 |

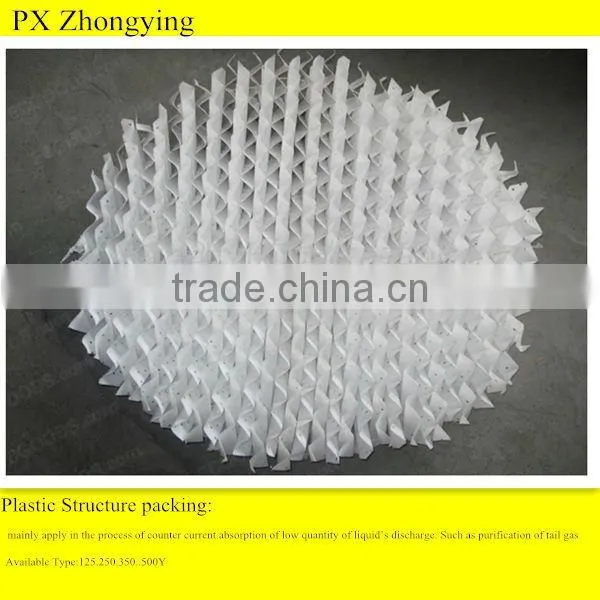

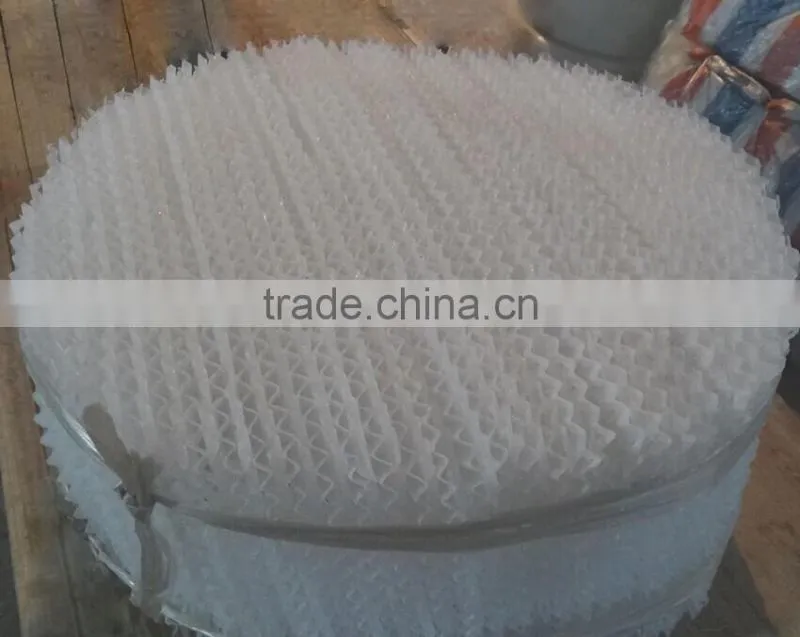

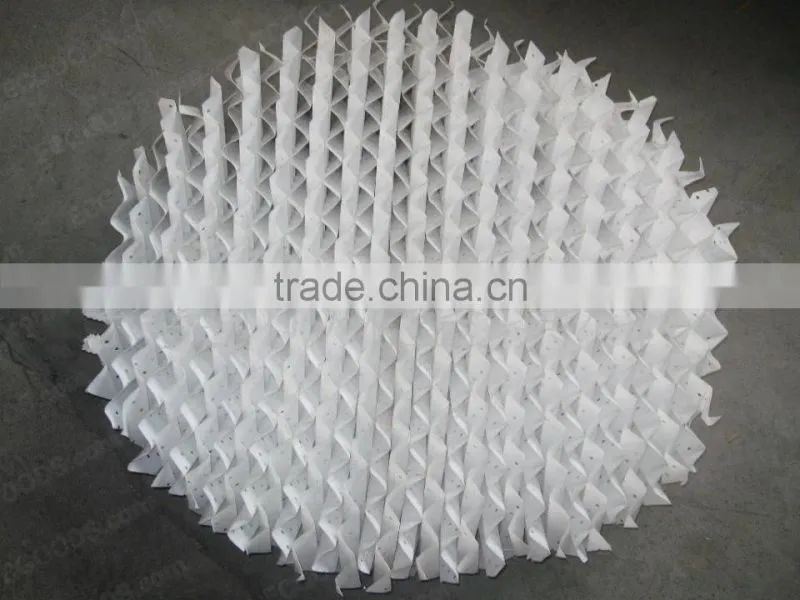

PRODUCT PHOTO:

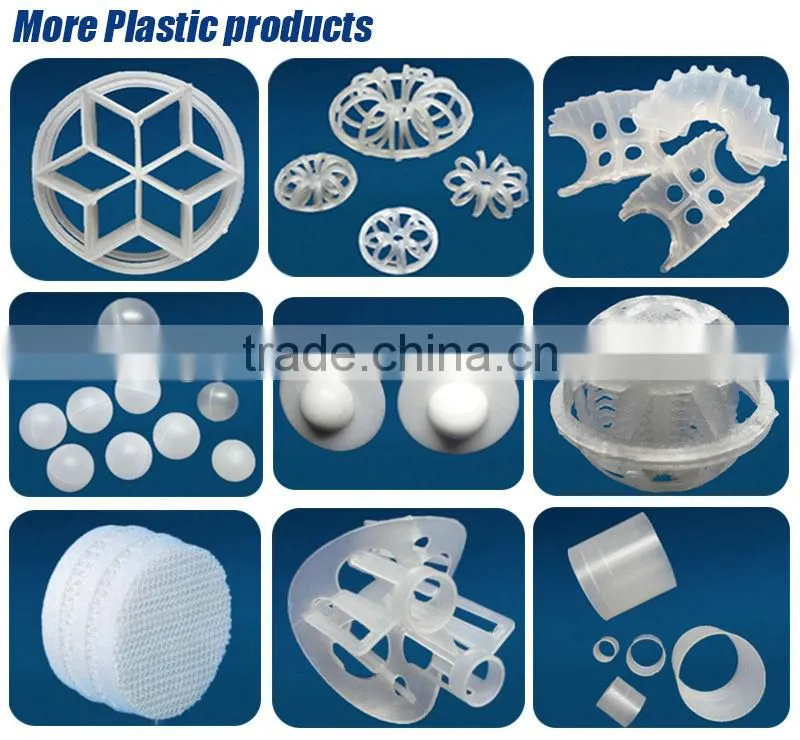

More Products for You to Choose
| Company Show |
1. About us
Pingxiang Zhongying Packing Co., Ltd., which is located in Pingxiang City, Jiangxi Province, the hometown of packings, is a manufacturer of petrochemical and environmental protection packing and catalyst, such as molecular sieves, activated aluminum, inert alumina ceramic ball, ceramic packing, plastic packing, metallic packing, honeycomb ceramics, catalyst bed support media, activated carbon, petrochemical additives, ceramic filter, water treatment filter etc.
Our factory is situated in Xiangdong Industrial Park in Pingxiang City,and it covers an area of 70000 square meters, with a construction area of 30000 square meters and fixed assets worth RMB17.5 million.For better development and international standards, our company has passed ISO9001-2008 quality system certification. Our product has been widely used in petroleum, chemical industry, metallurgy, electric power, environmental, pharmaceutical, aerospace, aviation and other industries. Our product sells well at home and abroad.
2. Why Choose us
ü Complete production line, quick delivery
ü Advanced equipments, good quality
ü Professional skills, all-related services
Factory Tour

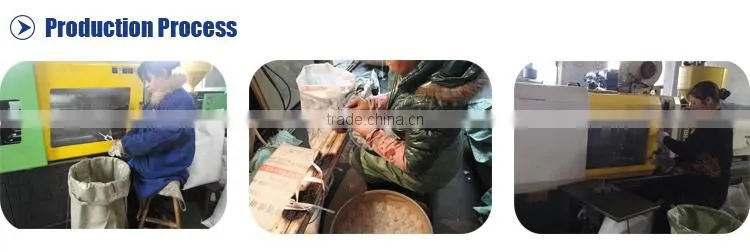

Production Process
3. Certifications
4. Our Markets
| Main Markets | 20.00% North America |
| 20.00% South America | |
| 15.00% Eastern Europe | |
| 10.00% Southeast Asia | |
| 10.00% Africa | |
| 5.00% Oceania | |
| 5.00% Northern Europe | |
| 5.00% Southern Europe | |
| Total Annual Sales Volume | US$2.5 Million - US$5 Million |
| Export Percentage | 51% - 60% |
5. General Question
1.a. Are you Trading Company or Factory:
b. We have more than 20 experience year production in this line .
2.a. What's your production ability for one month?
b. We can product 2000 cubic meters for one month .
3.a. What's your MOQ?
b. 1 Cubic meter is available .
4.a. What's your shipping port?
b. Shenzhen, Shanghai ,China
5.a. What's your Payment Terms?
b, Generally Speaking. 50% T/T in advance, 50% T/T after got the copy of B/L
6. Contact
Try order is acceptable. Sample is available.
Welcome to inquire, we will feedback within 24 hours.
