Specifications
1)20 years professional manufacture2)PP Plastic honeycomb pipe
3)Ontime delivery
4)One-stop service
5)ISO9001:2000
Plastic honeycomb Packing
include inclined pipe and straight pipe.
Plastic Straight pipe packing i.s mainly used for the bio-filter high load bio-filter, tower bio-filter, submerged type bio-filter (also called contact oxidation pool) and biological somewhere in the microbial carriers, and the industrial organic wastewater biochemical treatment of sewage and city.
Plastic honeycomb Packing Features :
1, large watted perimeter, small hydraulic radius.
2,good laminar flow, particles falling free from flocculent flow interference.
3,as long as inclined tube is 1meter, effective loadis designed by 3-5 tons/m 2 .VO in 2.5-3.0 mm/sec range and best water quality.
4, adopting honeycomb inclined pipe in water inlet with tube 2.0 to 3.0 meters ensure safe operation processing in high turbidity of 50-100 kg/m3 clay sand content.
5, processing power of inclined pipe sedimentation tank is horizontal-flow settling tank 3-5 times, accelerating water clarification and pulse water clarification of 2-3 times.
Hexagonal Plastic honeycomb Honeycomb inclined pipe
PP Plastic honeycomb Technical date:
Specification(Diam) |
Thickness m/m |
Pcs /m2 |
weight |
m3/mt |
specific surface area n2/m3 |
30mm |
0.4 |
68 |
32 |
31.25 |
116 |
0.45 |
68 |
36 |
27.7 |
116 |
|
0.50 |
68 |
40 |
25 |
116 |
|
35mm |
0.40 |
56 |
26 |
38.5 |
109 |
0.45 |
56 |
29 |
34.5 |
109 |
|
0.50 |
56 |
32.5 |
30.7 |
109 |
|
50mm |
0.45 |
40 |
21 |
47.6 |
97 |
0.50 |
40 |
23 |
43.5 |
97 |
|
0.55 |
40 |
25.5 |
39.2 |
97 |
|
60mm |
0.55 |
33 |
21 |
47.6 |
75 |
0.60 |
33 |
23 |
43.5 |
75 |
|
0.65 |
33 |
25 |
40 |
75 |
|
80mm |
0.70 |
25 |
22 |
47.6 |
50 |
0.80 |
25 |
25 |
43.5 |
50 |
|
0.85 |
25 |
27 |
40 |
50 |
wholesale Plastic honeycomb, Plastic honeycomb filter Plastic hexagon honeycomb packing
PP Plastic honeycomb pipe
It applys to construction sand, general industrial and in addition to drinking water, sewage precipitation, precipitation every oil and tail concentrate processing, which is suitable for newly-built project, and also applies to the transformation of the existing old pool. All can obtain good economic benefit.
They are both used well in the new construction projects and for the rebuilding of the old pools.

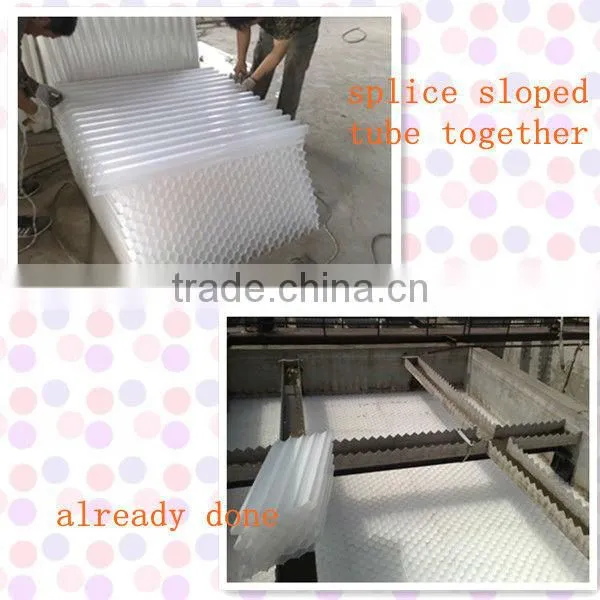

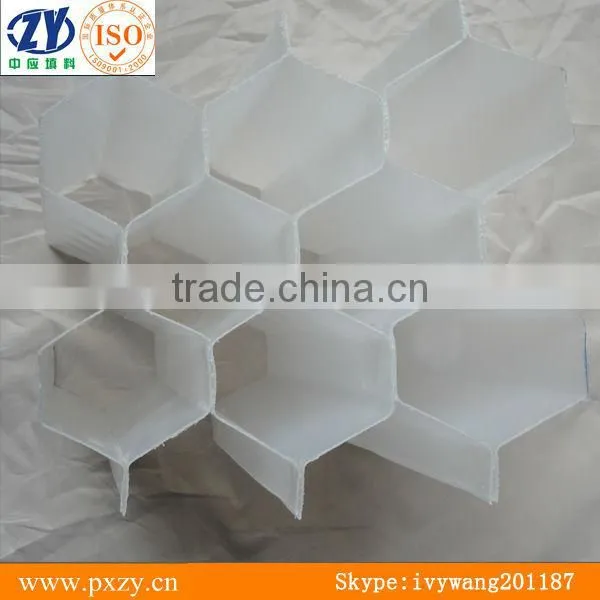

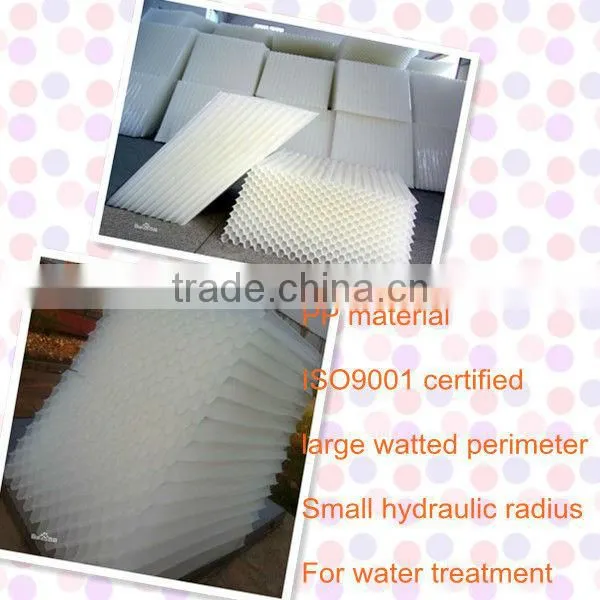

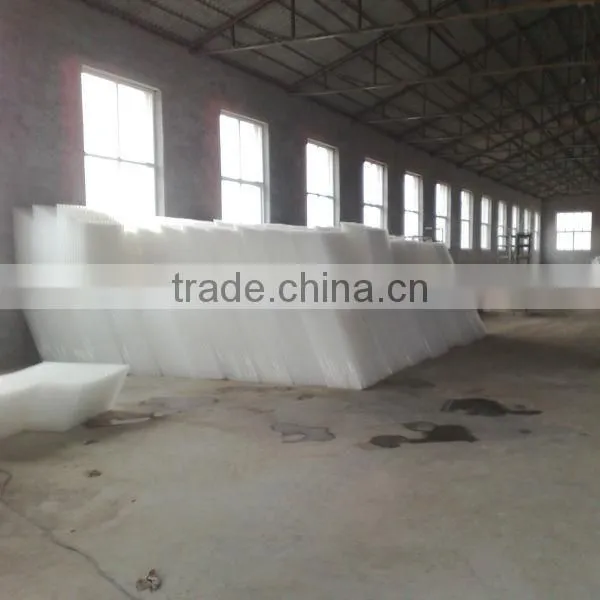

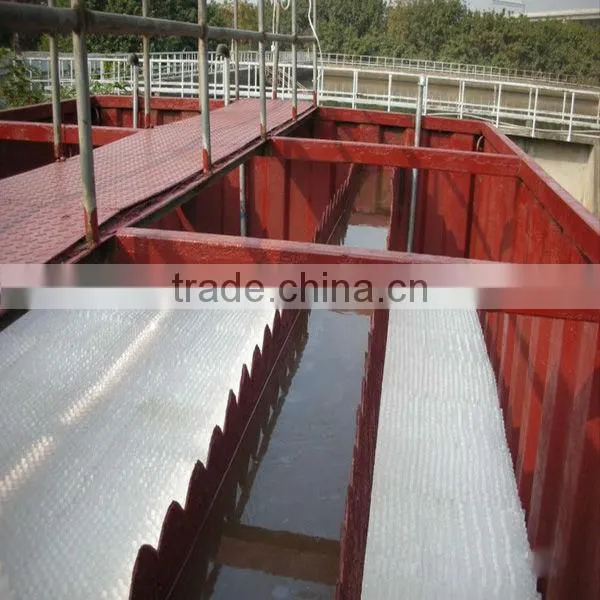

Porduct pictures:

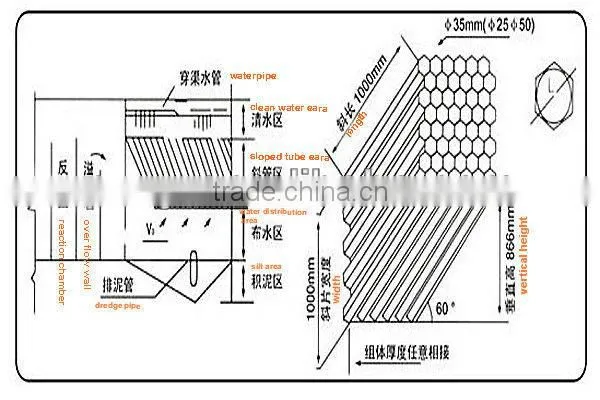

Structure picture:
:
Welcome to inquriy!
