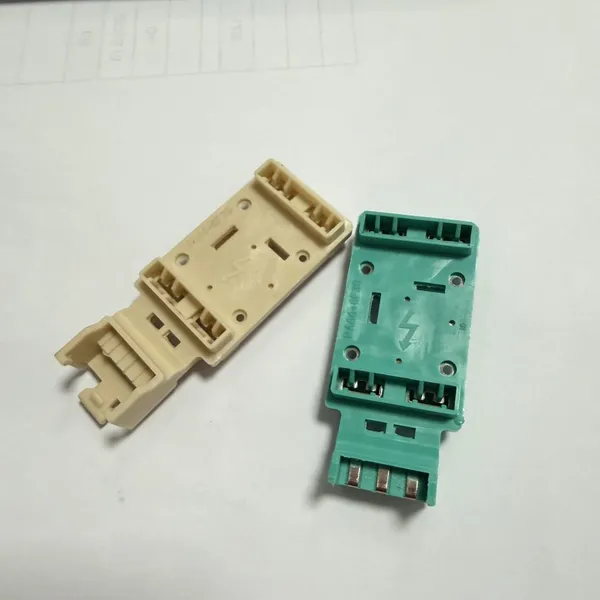

At Changzhou Hongxinyutai Precision Mold Co., Ltd., we specialize in delivering high-precision components for the electric vehicle industry. Our IATF 16949 Certified PA66 GF30 Connector Base is engineered specifically for EV battery pack signal connectors, featuring an advanced anti-vibration insert molding service. Backed by over 7 years of manufacturing expertise and a dedicated team of 51-100 professionals, we ensure every product meets the rigorous demands of modern electric mobility. This connector base combines robust material performance with precision molding to provide reliable signal transmission even under harsh operating conditions.
Our facility in Changzhou, Jiangsu, spans 1,000-3,000 square meters and is equipped with state-of-the-art injection molding machines. We serve global markets including North America, Europe, and Asia, and our quality management system is certified under IATF 16949, reflecting our commitment to automotive-grade excellence. Below, we detail the key features, technical specifications, and benefits of this product.
Key Features
- Material Excellence: PA66 reinforced with 30% glass fiber offers exceptional mechanical strength, thermal stability, and dimensional precision, ideal for battery pack environments.
- Anti-Vibration Design: Specially engineered geometry and insert molding technique minimize micro-movements, ensuring stable signal connection even under constant vibration from vehicle operation.
- IATF 16949 Certified: Our manufacturing process adheres to the stringent automotive quality standard, guaranteeing consistent product quality and traceability.
- Customizable Insert Molding: We integrate metal terminals, pins, or other inserts directly into the plastic base, reducing assembly steps and enhancing reliability.
- Wide Operating Temperature Range: PA66 GF30 maintains performance from -40°C to +150°C, suitable for extreme EV battery thermal cycles.
- Precision Tolerance: Achieved through advanced mold design and injection control, with tolerances as tight as ±0.05 mm.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | PA66 + 30% Glass Fiber |
| Tensile Strength | ≥ 150 MPa (typical) |
| Flexural Modulus | ≥ 8,000 MPa |
| Operating Temperature Range | -40°C to +150°C |
| Flammability Rating | UL94 V-0 (optional) |
| Insert Material | Copper alloy, brass, or as specified |
| Dimensional Tolerance | ±0.05 mm (critical dimensions) |
| Certification | IATF 16949 |
Advantages for Your Application
- Enhanced Signal Integrity: The anti-vibration design reduces contact resistance variation, ensuring reliable data transmission between battery modules and control units.
- Reduced Assembly Complexity: Insert molding eliminates the need for separate soldering or mechanical fastening of terminals, saving time and cost in your production line.
- Proven Durability: PA66 GF30 resists moisture, chemicals, and thermal shock, making it ideal for the demanding environment inside an EV battery pack.
- Global Supply Confidence: With our factory located in Changzhou, we offer competitive lead times and flexible shipping options via Jiangsu, Shanghai, or Shenzhen ports.
- Customization Support: We work closely with your engineering team to develop custom designs, from prototype to mass production, with rapid mold development.
Trust & Reliability
Since 2017, Changzhou Hongxinyutai Precision Mold Co., Ltd. has been a trusted partner for automotive and industrial clients worldwide. Our 51-100 skilled employees operate a modern facility of 1,000-3,000 square meters, focusing on precision mold design and injection molding services. We are proud to be IATF 16949 certified, which ensures that every connector base we produce undergoes strict process control and quality checks. Our main markets span North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East, reflecting our ability to meet diverse international requirements.
We understand that in the EV industry, component reliability is non-negotiable. That's why we invest in continuous improvement and advanced testing methods. Whether you need a standard PA66 GF30 connector base or a fully customized insert-molded solution, our team is ready to support you from concept to delivery. Contact us today to discuss your specific requirements and receive a competitive quotation.
Frequently Asked Questions
Q1: Why is PA66 GF30 chosen for EV battery connector bases?
A: PA66 with 30% glass fiber offers excellent mechanical strength, thermal stability (up to 150°C), and dimensional stability. It withstands the high vibration and thermal cycling in EV battery packs while maintaining electrical insulation properties.
Q2: What does IATF 16949 certification mean for this product?
A: IATF 16949 is the international quality management standard for automotive suppliers. It ensures that our processes are robust, traceable, and focused on defect prevention, resulting in consistent, high-quality connector bases suitable for safety-critical applications.
Q3: How does the anti-vibration feature work?
A: Our insert molding process creates a strong mechanical bond between the plastic base and metal inserts, while the base geometry incorporates stress-relief features and locking mechanisms. This design minimizes relative movement under vibration, maintaining stable contact resistance.
Q4: Can you customize the connector base for my specific signal connector?
A: Yes, we offer full customization. You provide the 2D/3D drawing or sample, and we can design the mold, select the appropriate insert materials, and produce prototypes for validation before mass production.
Q5: What is the typical lead time for samples and mass production?
A: Sample lead time is typically 15-20 working days after mold design approval. Mass production lead time depends on order quantity, but usually 25-35 working days. We can arrange expedited service for urgent projects.
Q6: What is the minimum order quantity (MOQ)?
A: For standard designs, MOQ is 1,000 pieces. For customized products, MOQ may be negotiable depending on mold investment and complexity. We are flexible for trial orders.
Q7: How do you ensure the quality of the insert molding?
A: We perform 100% visual inspection and dimensional checks on critical features. Additionally, pull-out force tests and electrical continuity tests are conducted on a sample basis per IATF 16949 requirements.
Q8: What packaging options are available for export?
A: We use anti-static trays, vacuum-sealed bags, and sturdy cartons with foam inserts to protect the connector bases during transit. Custom packaging per customer request is also available.
