5A Dessicant& Purifcation hydrogen molecular sieve

Specifications

1.ISO9001:2008 Approved, Good quality
2.Delivery fastly, Exported package, No broken during transportation
3.High efficiency







Molecular Sieves 5a Availbale size: 5A - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6, 3.2.

Molecular Sieve 5A is an alkali alumino silicate; it is the calcium form of the Type A crystal structure. Type 5A has an effective pore opening of  5 angstroms (0.5 nm). It will adsorb molecules with a kinetic diameter of less than 5 Angstrom and exclude those larger.
It is especially suitable for PSA adsorber applications where it may be used for the separation of normal- and iso- paraffins (C4 to C6 species), in PSA hydrogen purification and in oxygen concentrators.

Typical Chemical Formula
0.7 CaO . 0.3 Na₂O . Al₂O3 . 2 SiO₂ . 4.5H₂O

SiO₂ : Al₂O₃ ≈2



Application of 5A molecular sieves

(1) The strong ionic forces of the divalent calcium ion makes it an excellent adsorbent to remove water, CO2, H2S from sour natural gas streams, while minimising COS formation.

(2) Light mercaptans are also adsorbed.
(3) It is also used for the separation of normal- and iso paraffins.
(4) Production of high purity N₂, O₂, H₂ and inert gases from mixed gas streams.





Technical Parameter of 5A Dessicant



Item	Unit	Technical data
Shape		Pellet		Sphere
Diameter	mm	1.5-1.7	3.0-3.3	1.7-2.5	3.0-5.0
Size ratio up to grade	%	≥98	≥98	≥96	≥96
Bulk density	g/ml	≥0.68	≥0.68	≥0.68	≥0.68
Wear ratio	%	≤0.20	≤0.40	≤0.20	≤0.20
Crushing strength	N	≥30/cm	≥45/cm	≥30/piece	≥60/piece
Static water adsorption	%	≥21.5	≥21.5	≥21.5	≥21.5
Water content, as shipped	%	≤1.5	≤1.5	≤1.5	≤1.5

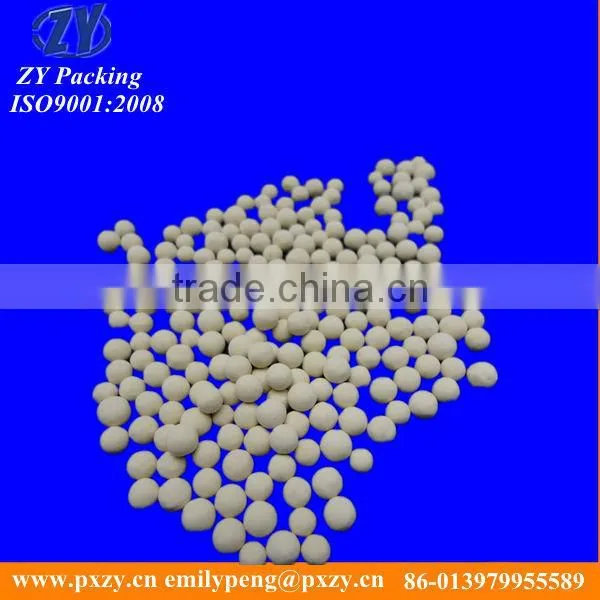

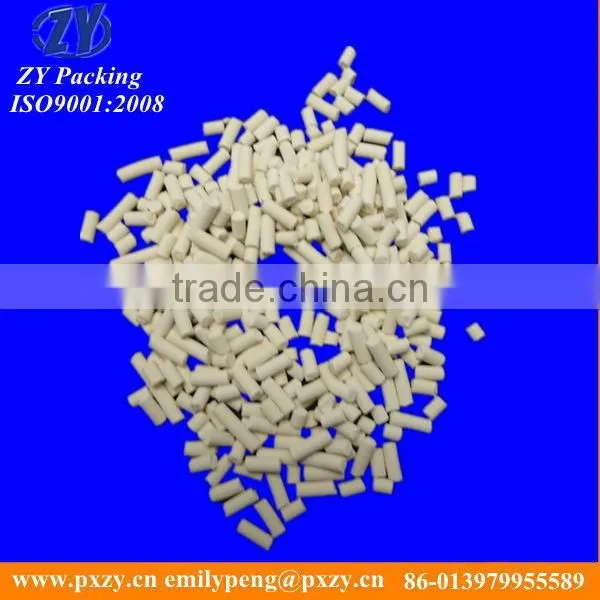

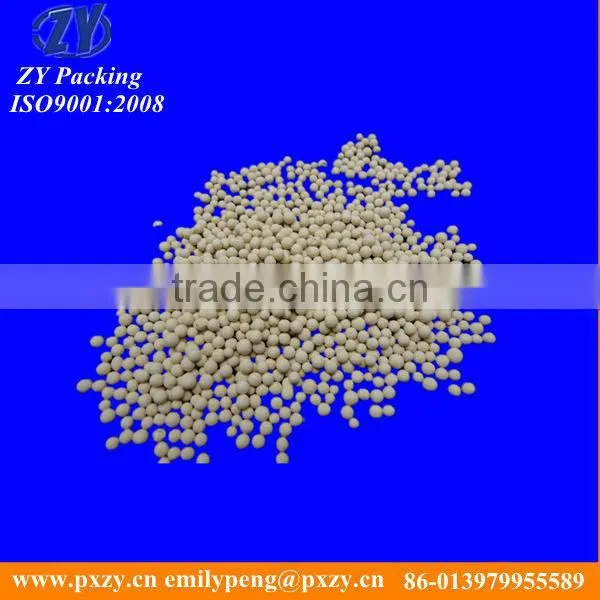

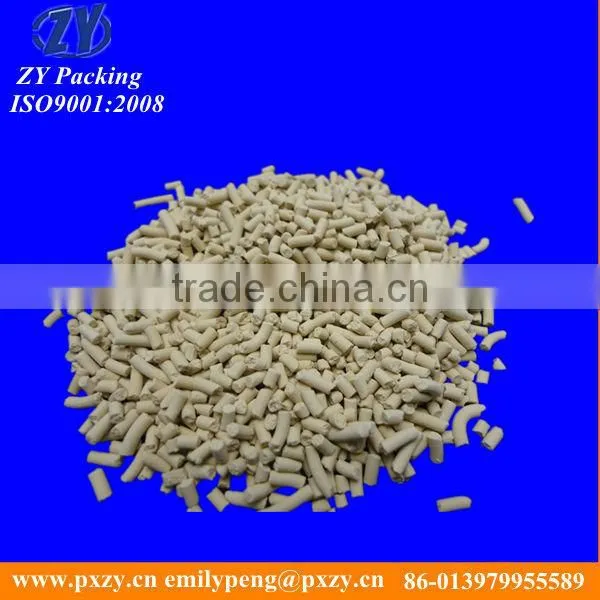

ZY 5A Molecular Sieves Sample Photo:

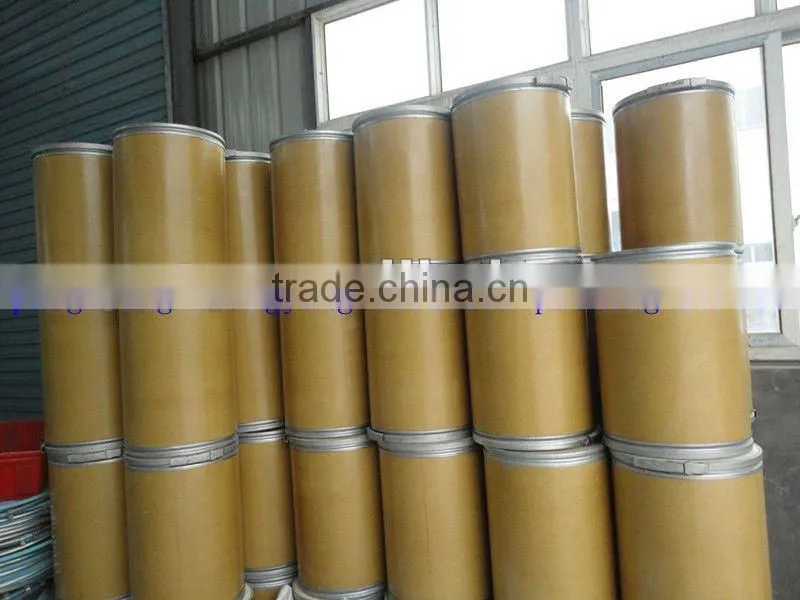

ZY Molecular Sieve Vacuum Package:
