factory metal tower packing,teller random packing,Carbon steel metal packing
- 1000 Cubic Meter / Cubic Meters per Month
- Shenzhen Shanghai and any port in China
- T/T L/C D/P D/A
Product Details
Place of Origin: | Jiangxi, China | Brand Name: | ZY | Model Number: | metal rosette001 |
Application: | Packing tower | Shape: | Rosette003 | Material: | Iron, 304,304L,316,316L,410 |
Dimensions: | 25in 47in 51in 59in 59in 73in 95in 145in | Chemical Composition: | Fe |
Product Description
Specifications
1)20 years professional manufacture2)Carbon steel metal packing
3)Ontime delivery
4)One-stop service
5)ISO9001:2008

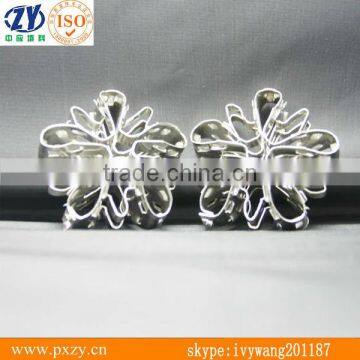

Metal Teller Rosette Ring
Materials Available:
Carbon steel, SS304, SS316, SS304L, SS316L
Metal Teller Rosette Ring Feature:
1)High free volume, large void space;
2)low pressure drop;
3)Top mass transfer performance
4)High floating point;
5)Excellent corrosion and heat resistance
Metal Teller Rosette Ring Application:
It is mainly used in washing towers, cooling towers, desulphurization towers, deaerator, drying towers and de-carbon towers,as well as facilities for sewage treatment.
Metal Teller Rosette Ring Technical Data:
Name | type | Dimension | Surface area | Void rate | Bulk quantity | Bulk density | Dry packing factor |
Φ | D×H×THK | α | ε% | n | γp | α/ε3 | |
mm | mm | m2/m3 | m3/m3 | pcs/ m3 | kg/m3 | m-1 | |
Teller Rosette | Φ100 | 108×45×1.2 | 128.6 | 97.3 | 1760 | 75.6 | 216.6 |
Φ75 | 80×35×1.0 | 117.8 | 97.3 | 4700 | 73.2 | 209.7 | |
Φ50 | 55×25×0.8 | 136.5 | 36.2 | 19180 | 105.5 | 302.3 |
