Gas purification, removal of water and carbon dioxide in air separation device; natural gas, gasification oil gas drying...Molecular Sieve 13X for general gas deep drying /removal water and CO2 / desulfurization
| Product Show |
1.Description of product
Performance features and uses:
Molecular Sieve 13X is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals. It will adsorb molecules with a kinetic diameter of less than 10 Angstrom (1.0 nm) and exclude those larger. It also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates. It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen..
Chemical Formula_/span>Na2O·AI2O3·2.45SIO2·6.0H2O.
SiO2 : Al2O3 ≈2.6-3.0.
Technical date:
Item |
Unit |
Technical date |
|||
Shape |
Pellet |
Sphere |
|||
Diameter |
mm |
1.5-1.7 |
3.0-3.3 |
1.0-1.6 |
3.0-5.0 |
Size ratio up to grade |
% |
≥98 |
≥98 |
≥96 |
≥96 |
Bulk density |
G/ml |
≥0.54 |
≥0.54 |
≥0.60 |
≥0.60 |
Wear ratio |
% |
≤0.20 |
≤0.25 |
≤0.20 |
≤0.20 |
Crushing strength |
N |
≥30/cm |
≥45/cm |
≥10/p |
≥60/p |
Static water adsorption |
% |
≥25 |
≥25 |
≥25 |
≥25 |
Carbon dioxide air flux |
NL/g |
≥14 |
≥14 |
≥14 |
≥14 |
Water content as shipped |
% |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
Application: Gas purification, removal of water and carbon dioxide in air separation device; natural gas, gasification oil gas drying and desulfurization; general gas deep drying.

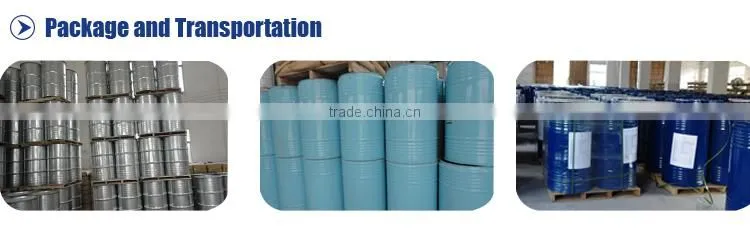

Package: 30kg / bag, aluminum foil bag vacuum packaging.
Regeneration: It can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes. To remove moisture from a 13X molecular sieve, a temperature of 180-350°C is required. The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.
Store: Room temperature: relative humidity no more than 90%; not directly exposed to the air; avoid water, acid, alkali.

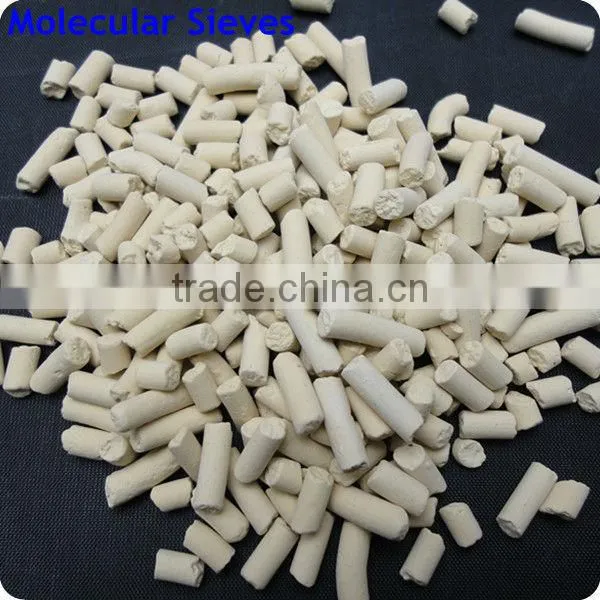

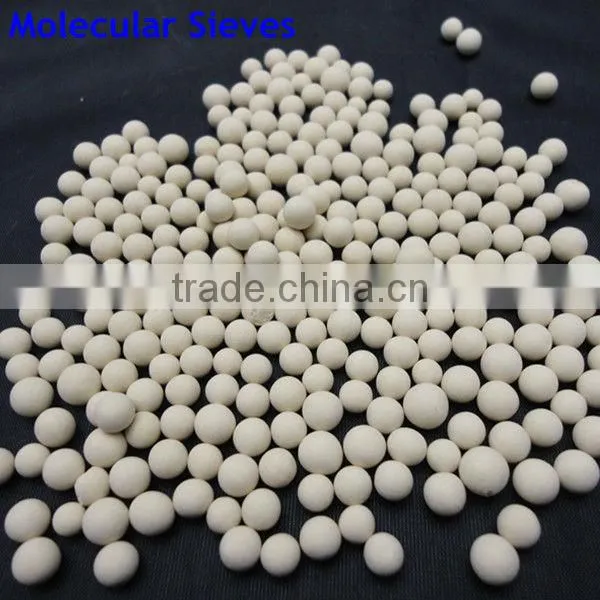

2. Pictures of the product

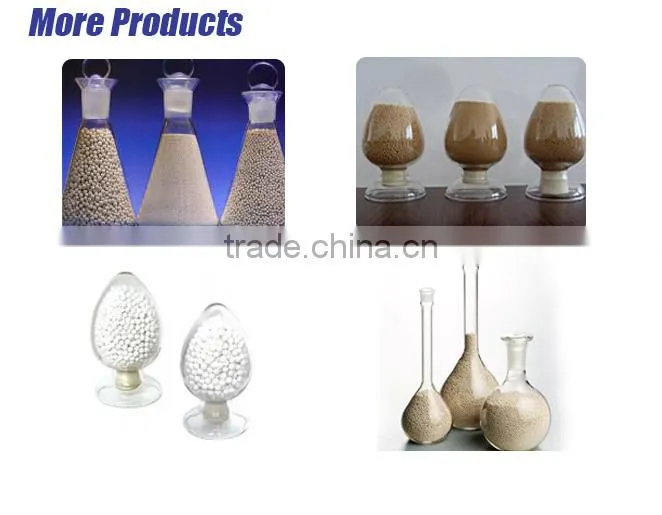

3. More Products for You to Choose
| Company Show |
1. About us
Pingxiang Zhongying Packing Co., Ltd., which is located in Pingxiang City, Jiangxi Province, the hometown of ceramics, is a manufacturer of petrochemical and environmental protection packing and catalyst, such as molecular sieves, activated aluminum, inert alumina ceramic ball, ceramic packing, plastic packing, metallic packing, honeycomb ceramics, catalyst bed support media, activated carbon, petrochemical additives, ceramic filter, water treatment filter etc.
Our factory is situated in Xiangdong Industrial Park in Pingxiang City,and it covers an area of 70000 square meters, with a construction area of 30000 square meters and fixed assets worth RMB17.5 million.For better development and international standards, our company has passed ISO9001-2000 quality system certification. Our product has been widely used in petroleum, chemical industry, metallurgy, electric power, environmental, pharmaceutical, aerospace, aviation and other industries. Our product sells well at home and abroad.
2. Why Choose us
1) Complete production line, quick delivery
2) Advanced equipments, good quality
3) Professional skills, all-related services
3. Certifications
4. Our Markets
| Main Markets | 20.00% North America |
| 20.00% South America | |
| 15.00% Eastern Europe | |
| 10.00% Southeast Asia | |
| 10.00% Africa | |
| 5.00% Oceania | |
| 5.00% Northern Europe | |
| 5.00% Southern Europe | |
| Total Annual Sales Volume | US$2.5 Million - US$5 Million |
| Export Percentage | 51% - 60% |
5. General Question
1.a. Are you Trading Company or Factory:
b. We have more than 20 experience year production in this line .
2.a. What's your production ability for one month?
b. We can product 1000 metric ton for one month .
3.a. What's your MOQ?
b. 1 metric ton is available .
4.a. What's your shipping port?
b. Shenzhen,Shanghai and any port in China
5.a. What's your Payment Terms?
b.L/C,D/A,D/P,T/T,Western Union
6. Contact
Try order is acceptable. Sample is available.
Welcome to inquire, we will feedback within 24 hours.
