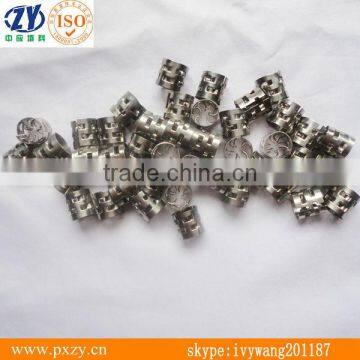

16mm 316L Pall Ring ,random Tower Packing,metal pall packing

Specifications

1)20 years professional manufacture
2)16mm 316L Pall Ring
3)4)One-stop service
5)ISO9001:2008



Metal Pall Ring Description:



Metal Pall Ring is a kind of tower packing.,In comparison with Rasching ring,the structure is improved. it is also widely used in the gas industry ,chemical industry ,rectifying tower and so on.





Metal Pall Ring Features/function:



1)High free volume, large void space;



2)low pressure drop;



3)Top mass transfer performance



4)High floating point;high separation efficiency.



5)Excellent corrosion and heat resistance



6)Easy to install or remove. Recyclable





Metal Pall Ring Application:



It's available for rectification towers, cokable systems, crude distillation unit, desulphurization system, gas liquid separator.And it is widely used in petrochemical industry, chemical industry and environmental protection, etc..



Metal Pall Ring Material:



carbon steel, stainless steel304 304l 410 316 316l or Aluminum alloy, etc.



 Metal Pall RingTechnical data



Model	Size mm	Number per volume N/m3	Bulk density Kg/m3	Surface area  M2/m3	Void volume %	Packing factor M-1
Dg16	16*16*0.4	214000	527	371	0.93	457
Dg25	25*25*0.6	56900	471	223	0.94	268
Dg38	38*38*0.8	15181	424	149	0.94	176
Dg50	50*50*1	6500	395	110	0.95	128
Dg76	76*76*1.5	1830	384	72	0.95	84







Our advantage:



1. 20 years Professional manufacturer.



2. Factory direct sales, Can offer you the best price and one-stop service.



3.ISO9001 certification available.



4.We offer free samples, with shipping and taxes paid by the buyer.Paypal payment way available.



5.Small order quantity acceptable.



  16mm 316L Pall Ring



16mm stainless Pall Ring







Workshop:



Package:





Certification:









Welcome to Inquire!
