Liangchi PVC Fills, Tower PVC Fills(750*800mm,1000*750mm)

Specifications

  Liagchi Cooling tower available size:

750*800mm, 750*400mm.750*1000mm, 750*1200mm,750*1600mm

Color:

Blue, Yellow

Package:

Palletize

Unit weight:

0.15Kg/pcs

Pitch of fills:20mm

thickness:0.25-0.35mm

Application: Square Counterflow Cooling Tower

Liangchi Cooling tower fills advantages are as follows:

1, heat performance is good, cooling efficiency

Packing for film type, raised fine corrugated make water surface more. Packing points five layers, placed between layer and layer are once again the process of hot water distribution.

2, good, ventilation resistance small hydrophilic

On a smooth surface coarse and in the plane of the packing, bibulous rate is good hydrophilic less than 0.015%, make more current form, and not thin film, make water and air splashed down more fully contact and make the water and the air flow surface. When the disturbance Packing assembly into the wind after a surface of the honeycomb diversion, has the good uniform wind effect and improve and stabilize the moisture vapor heat transfer intensity.

Into the 30 ° Angle the tilt to reduce water loss drift. At the end of the packing set on the impact of the design of separation water decanier, make water loss control in float within five over one hundred thousand.

3, installation is convenient, easy to clean, the transportation is convenient

The packing heat by bonding hanging, easy installation, easy cleaning, and success in solving the adhesive packing for fouling, respect the aspiration and deformation, and the deformation after more severe fouling, and difficult to clean. Packing flame retardant performance is good, the testing:  flame retardant oxygen index index more than 28.

4, big "honeycomb structure design has the role of flow",

has good uniformity cloth, improve and stabilize the wind the moisture vapor heat transfer intensity, into the wind end of 30 degrees tilt, effectively reduce water loss the drift. Precise positioning, facilitate with current combination spacing perpendicular to the surface to form large areas of flowing water film, contributed to the contact, bring their own large air of shutter into the shape in the packing make packing the distribution of water in the air than uniform and reasonable, unique efficient after water sensor and packing molding a body, effective will hot humid air drops back to the removal of the tower, and greatly reduce the water drift losses. Drifting water loss rate of less than 0.001%.

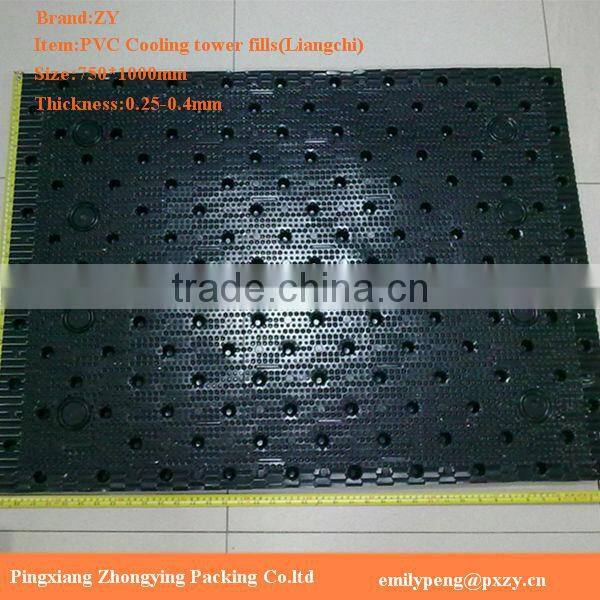

 Sample Photo:

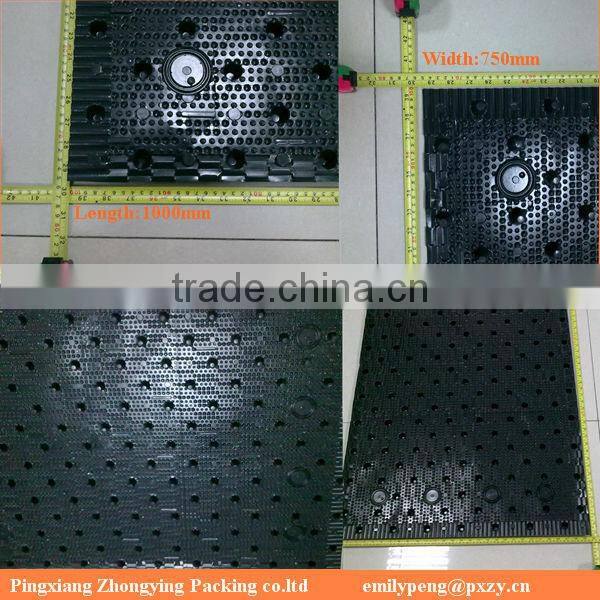

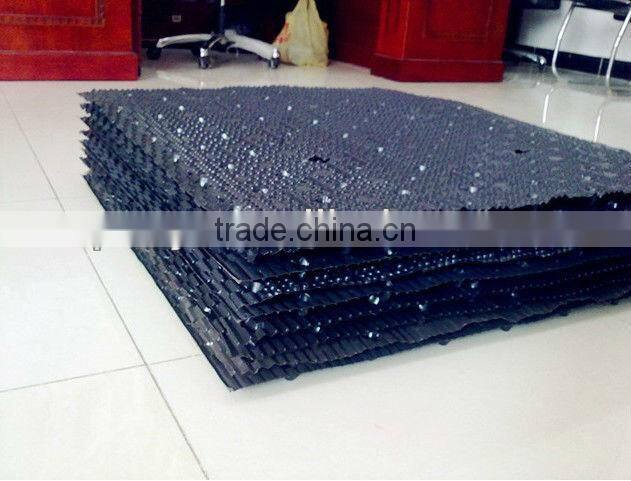

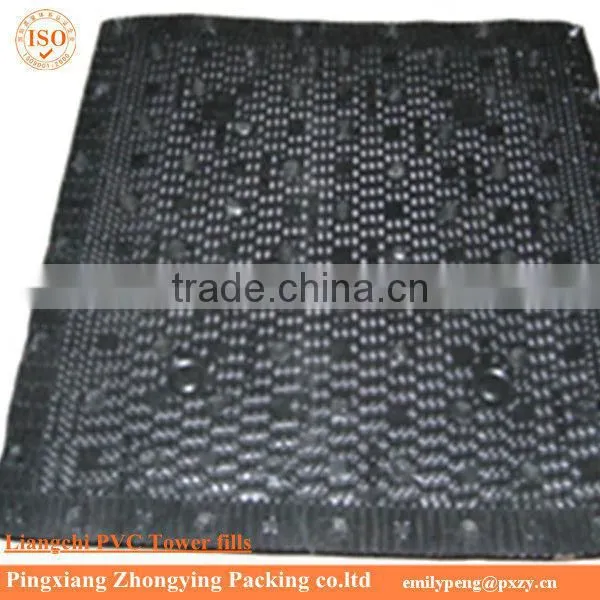

ZY Liangchi Fills Sample Photo:

Application:

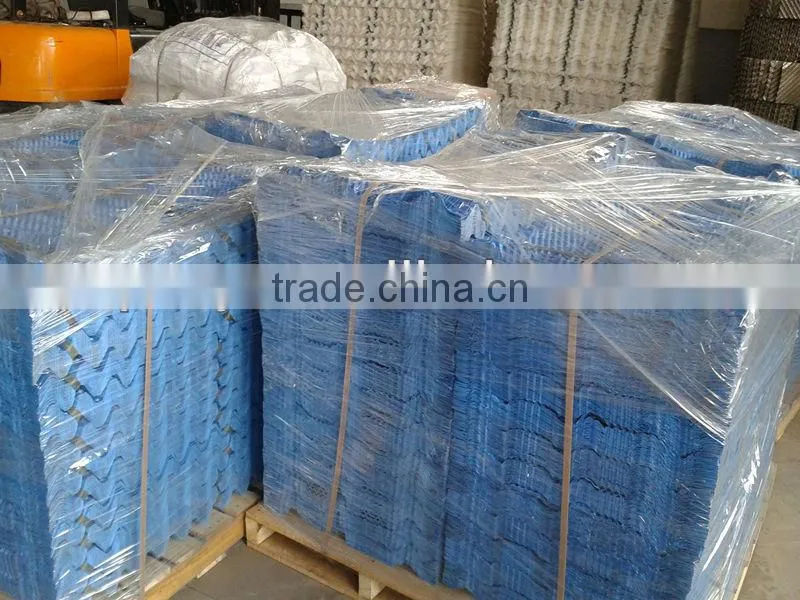

Package:

Certification:
