Help Center"S" Wave Corrugated Cooling Tower Fills Block
Related Products
-
2013 Hot Sale Black Round Cooling Tower FillsUS$ 1.41 - 2MOQ: 250 Kilograms -
Black Round Cooling Tower Fills Type With High QualityUS$ 1.41 - 2MOQ: 250 Kilograms
-
Green Round PVC Fills TypeUS$ 1.41 - 2MOQ: 250 Kilograms
-
Dark Green Round Shape Cooling Tower FillsUS$ 1.41 - 2MOQ: 250 Kilograms
-
PVC Fluted Fill Blocks Cooling TowerUS$ 0.39 - 1.12MOQ: 500 Pieces
Specifications
1. Advanced structural design, big love water area excellent cooling effective2.Enviromental and economical,
3.Virgin PVC

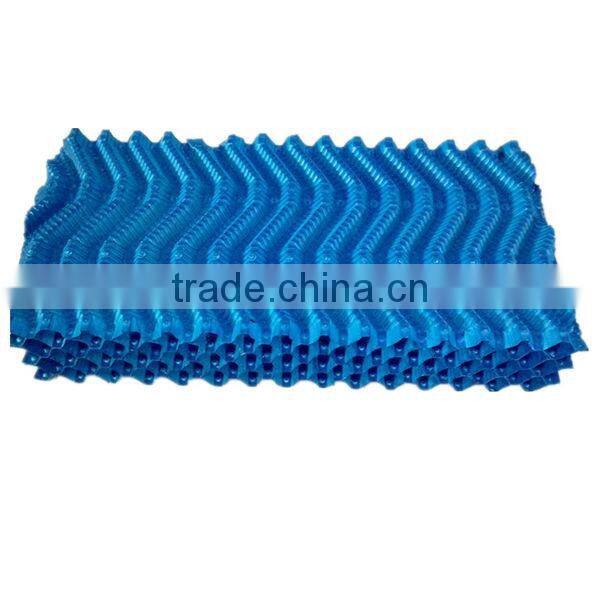

"S" Wave Corrugated Cooling tower fills Block
Description of Goods:
| Type: | Cooling tower fills |
| kind: | PVC Cooling tower fills |
| name: | "S" Wave Corrugated Cooling tower fills block |
| Materials: | Virgin PVC |
| Size: | 1000*500/1000mm*0.35-0.65mm |
| Package: | Film+Pallet |
| Delivery: | within 15 days |
| MOQ: | 50m3/500kgs |
| Payment: | T/T 50% deposit and 50% balance be paid against the Bill of lading. |
2.Product Photo:
3. Product Introductin
Cooling Tower Fills is one of the most important components for exchange of gas and water in cooling Tower.It is the major parts to improve the efficiency of cooling tower and make sure the economy and safe operation. With the development of the plastic industry, counter-current tower drench water plastic packing "S" shape ladder wave, obliquely wave, which has the heat dissipation ,good performance ,Ventilated small resistance, durable, based on the easy and other advantages, it is widely used in different types of large, medium, small, cooling tower.
4.Product Technical Data:
|
Length(mm) |
Height(mm) |
Film thickness(mm) |
|||
Size |
Tolerance |
Size |
Tolerance |
Size |
Tolerance |
|
"S" Wave |
1000 |
±10 |
500 250 |
±5 |
0.4 |
±0.05 |
2000 |
±10 |
500 250 |
±5 |
0.4 |
±0.05 |
|
Double Inclined |
1000 |
±10 |
500 250 |
±5 |
0.4 |
±0.05 |
Inclined Wave |
1000 |
±10 |
500 |
±5 |
0.4 |
±0.05 |
5.Product Heating Power and Resistance Character:
|
Fill Height |
Cooling No. (Volume Scattered Coefficient: Ka) |
Resistance Equotion:P/p1=9.81*A*Vcpm A.M expression |
"S" Wave |
1m |
=1.83y0.65 |
A=-0.0019q2+0.0685q+0.06543 |
Ka=4746g0.56q0.36 |
M=-0.0028q2-0.0170q+1.9480 |
||
Double Inclined |
1m |
=1.92y0.68 |
A=-0.0006q2+0.0306q+0.06376 |
Ka=4342g0.69q0.36 |
M=-0.0002q2-0.0026q+1.9029 |
||
Inclined Wave |
1m |
=1.85y0.64 |
A=-0.0001q2+0.189q+0.6374 |
Ka=4296g0.63q0.38 |
M=-0.0006q2-0.0122q+2.0178 |
Remark: P-Fill Resistance,Pa P1=Air density,kg/m3 q---Spray waterdensity,t/(m2*h) Vcp-Spray Fill Average Wind Speed m/s
g--Ventilation density kg/(m2*h g-gas water radio
Sample Photo:
Application:
Package Photo:
