Ceramic Cross Ring Random Packing Media
- Shanghai Shenzhen or any port in China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | zhongying | |
| Model Number | 50mm 80mm 100mm.120 150mm |
Product Description
Specifications
1. Big size, Big void space, High quality2.Enviromental material, Directly contact with the skin
3.Delivery fastly,stock in

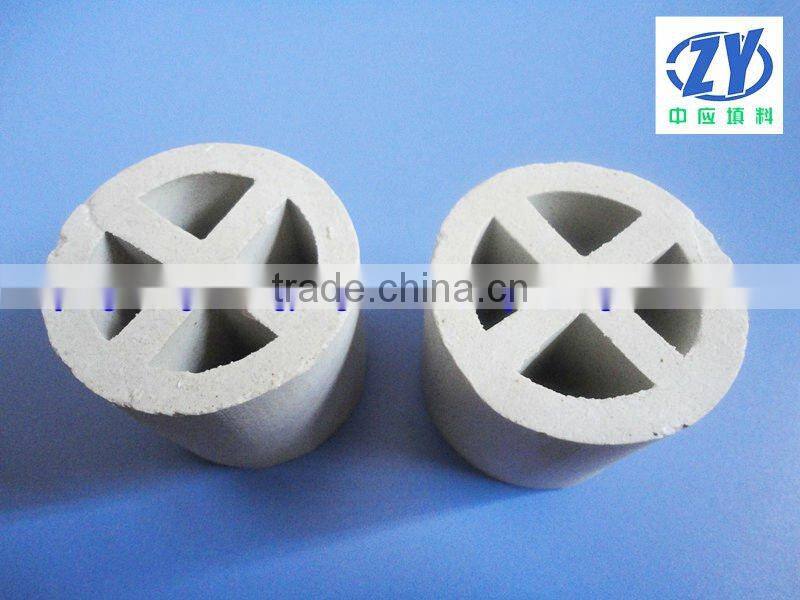

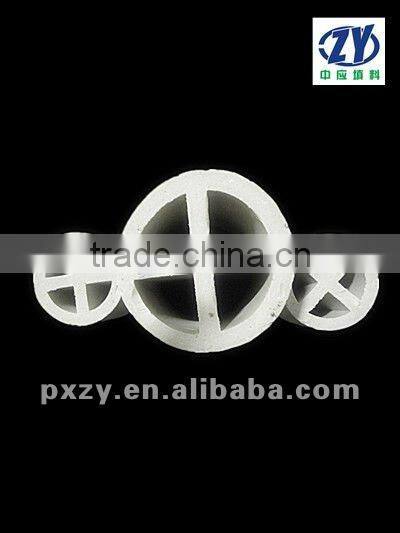

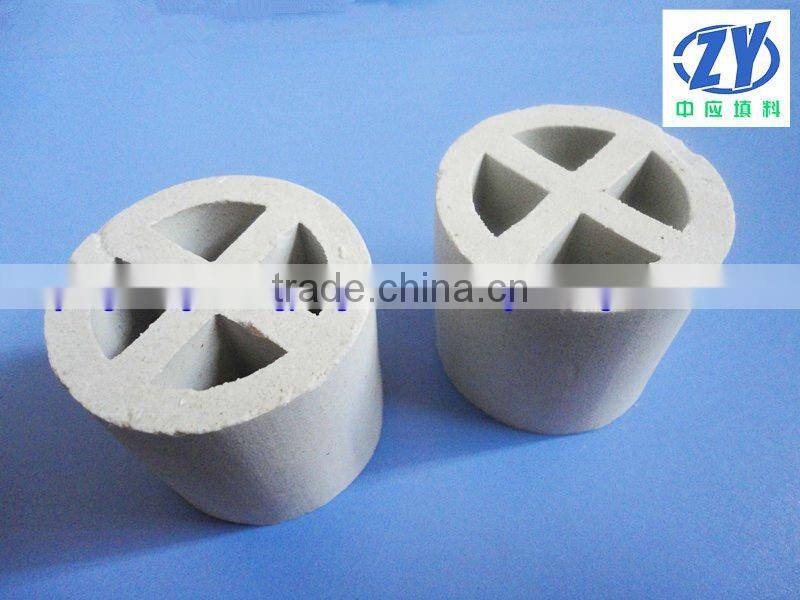

Sample photo:
Alumina Ceramic Cross Packing Media:
Features: as a support media ,as a filter
Ceramic Cross Packing Media available material:
high alumina ,common ceramic, and glazing ceramic
Alumina Ceramic Cross Packing Media Introduction:
The ceramic cross-partition ring is added baffle boards inside the rashing ring, increasing the form area and intensity of packing. It is usually used extensively for the supporting packing at the bottom of tower.
Chemical Data of Cross Packing:
Size | DImension | Weight(kg/m3) | Number(pcs/m3) | Surface(m2/m3) | Dry packing factor m-1 |
2”(50mm) | 50 x 40 x 50 x 5 | 600 | 6400 | 145 | 565 |
3”(80mm) | 80 x 64 x 80 x 5 | 820 | 1950 | 120 | 356 |
4”(100mm) | 100 x 80 x 100 x10 | 850 | 1000 | 110 | 252 |
5”(120mm) | 120 x 96 x 120 x 12 | 860 | 370 | 75 | 146 |
6”(150mm) | 150 x 120 x 150 x 15 | 980 | 295 | 60 | 101 |
SiO2 | Al2O3 | Fe2O3 | K2O+Na2O | Ca2O |
<5% | 89-92% | <1% | 2-4% | <1-2% |
If u have antoher Chemical Propertiy demand, we also can reproduce for u
Speical size also can produce accordinng to your demand
