Biomass Pellet Cooler
counter flow cooler
Used in wood pellet making line,cooling precess.
also can be used in animal feed pellet making line.

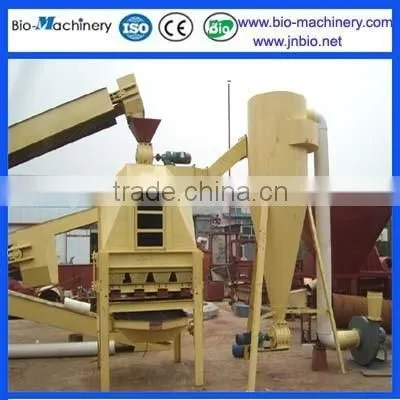

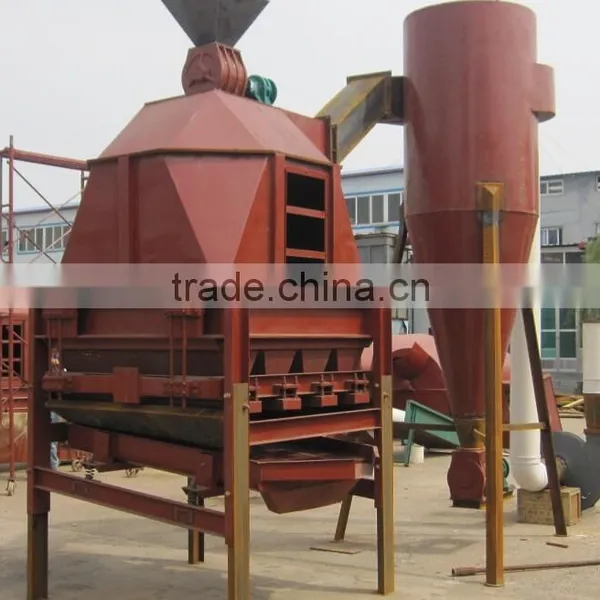

Wood pellet cooling machine /Biomass pellet cooler
1. SKLN series counter flow cooler is the latest cooling equipment that contains our many years’ manufacturing experiences and unites international advanced cooling technology, the machine is mainly used for cooling finished pellets with high temperature.
2. This machine has the special cooling theory ,the cool air and pellet move inversely. The pellets are cooled from bottom to the top gradually ,which avoid the split of pellet surface, the heart moisture and heat emanate uneasily during the cooling process and so on characteristic by using old type vertical cooler .
3. The cooler adopts vibration locking device, increasing the cooling efficiency, reducing the broking rate, rooting out the drawback that the cooler can not work after the pellets become cooler, at the same time, lowering the power consumption. The cooling efficiency is much better than other products at home, and also higher than the National Standard. The temperature of pellets after cooling is not +5℃ higher than room temperature. The reducing moisture rate is not lower than 3.8%. All these are good for producing high capacity feed pellets, lengthening pellets storage period and improving economic efficiency.
4. Our cooler has lots of advantages such as high capacity, good cooling efficiency, high level automatic, low noise and less maintenance. They are advanced substituted cooling equipment which is widely used abroad
Model |
SKLN1.2 |
SKLN1.5 |
SKLN2.5 |
SKLN4 |
SKLN6 |
SKLN8 |
SKLN10 |
|
Output(t/h) |
0.8-1.2T/h |
1.2-2/h |
2-4T/h |
4-6T/h |
5-8T/h |
8-12T/h |
15-20T/h |
|
Capacity (L) |
1.2 |
1.5 |
2.5 |
4 |
6 |
8 |
10 |
|
Cooling Time |
Not less than 10 minutes |
|||||||
Cooled Temp (℃) |
Room temperature + 3-5℃ |
|||||||
Power (kw) |
0.18 |
0.25 |
0.25 |
0.37 |
0.37 |
0.37 |
0.37×2 |
|
Machine size(mm) |
1570X1200X2470 |
1556X1616X2505 |
2100X1966X2870 |
2300X2150X3190 |
3315X2146X3722 |
3335X2636X3957 |
3685X2638X4080 |
|
Wood Pellet Cooling Machine /Biomass pellet cooler

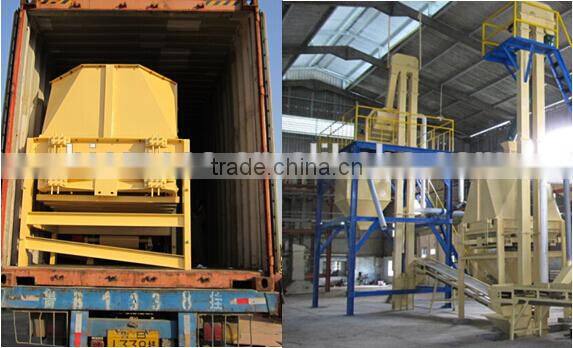

Packing in full container,show as below
Wood Pellet Cooling Machine/Biomass pellet cooler

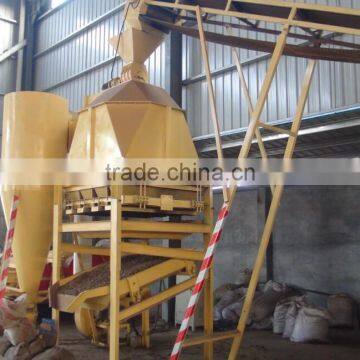

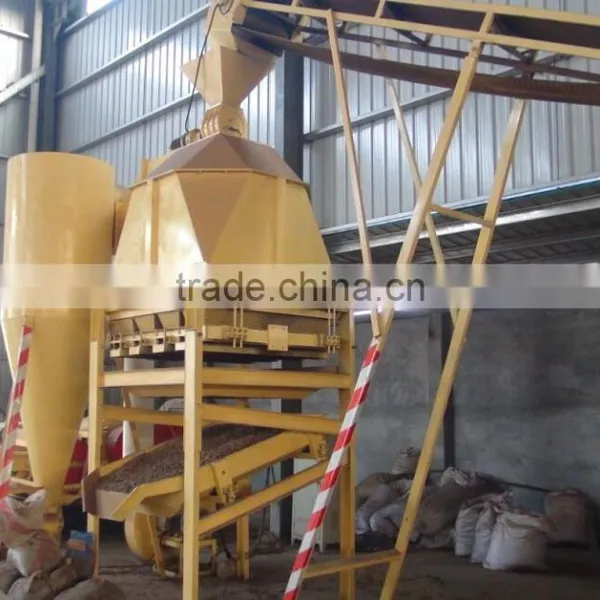

In order to select the fine pellets,we will design a mesh under the pellet cooling machine,
So that can get good pellets

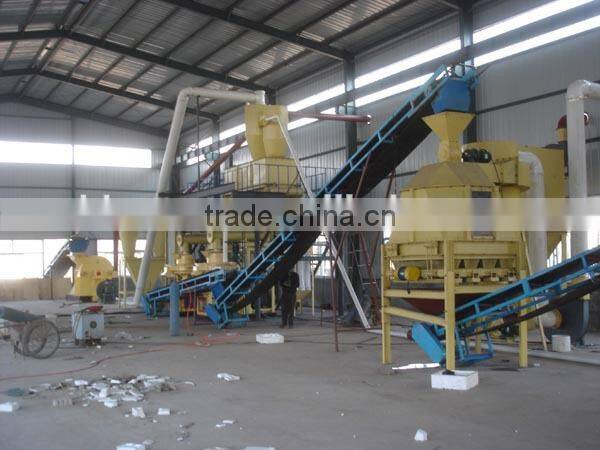

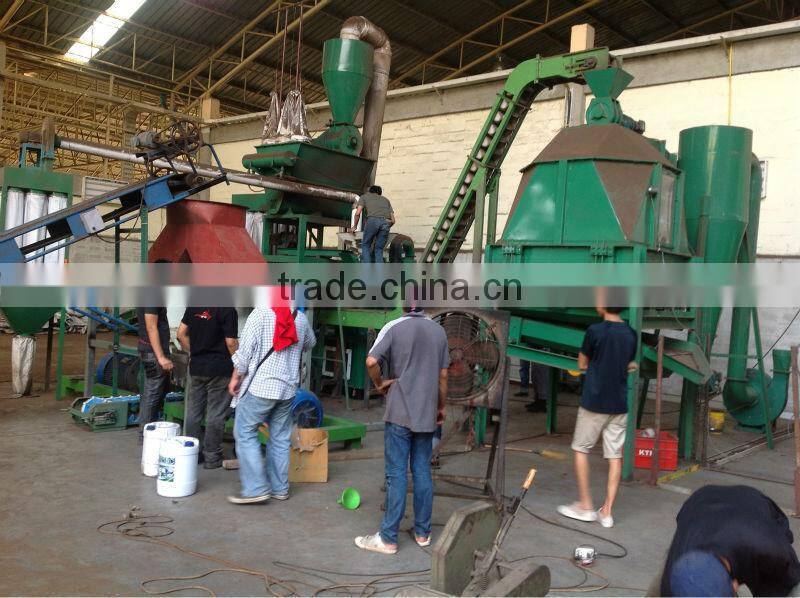

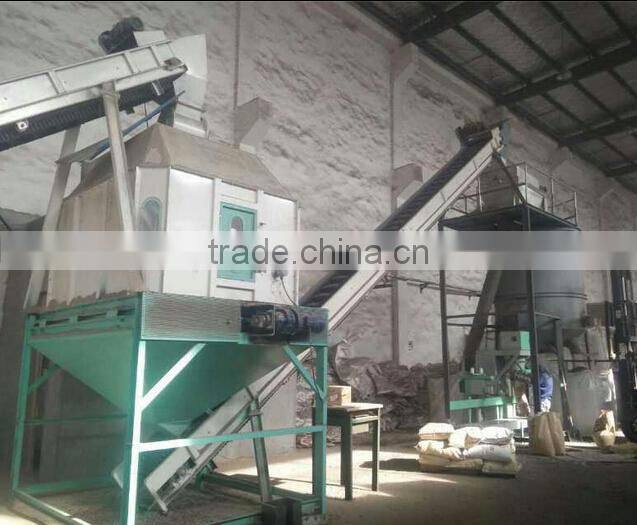

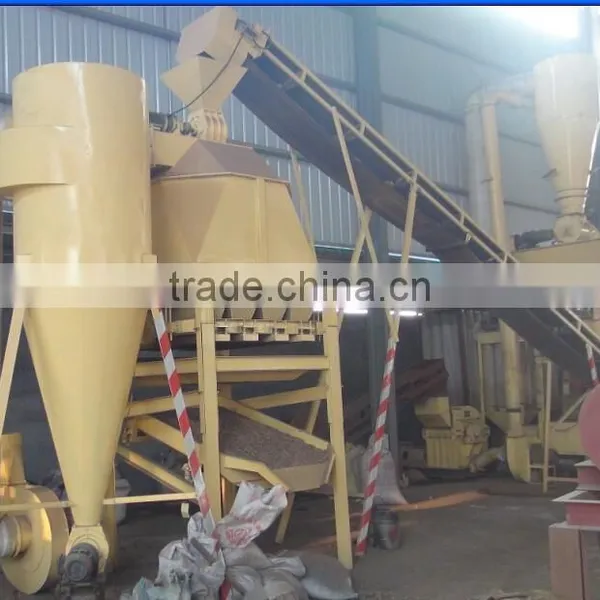

Biomass pellet cooler.animal feed pellet cooler installing details
Wood Pellet Cooling Machine/Biomass Pellet Cooler

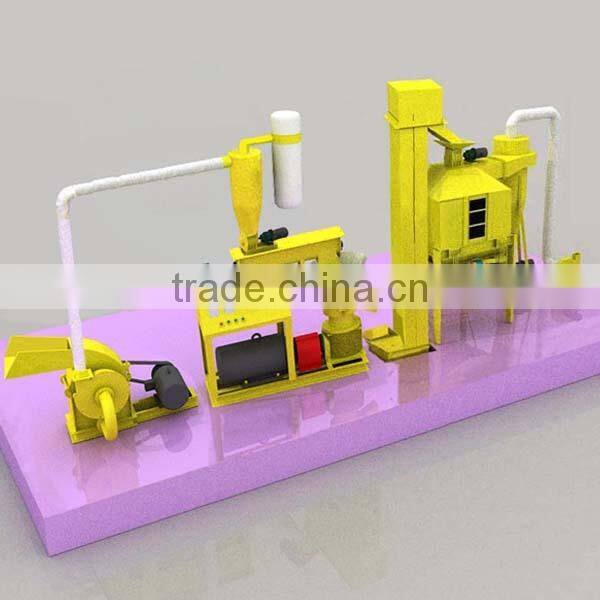

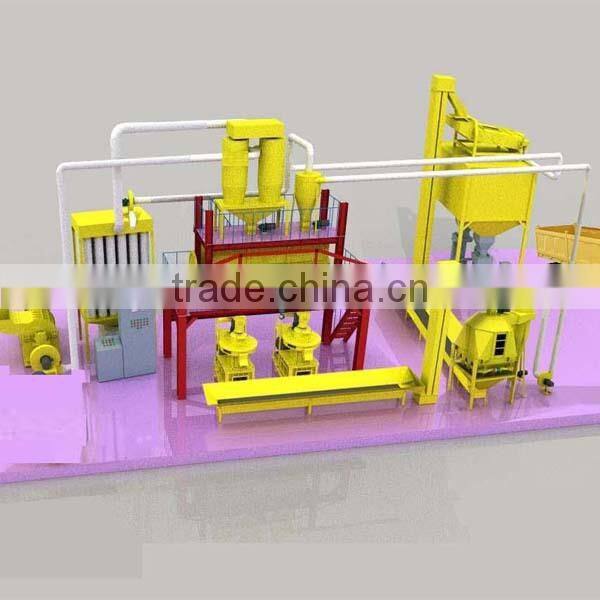

We also can supply Wood Chipper,wood hammer mill,wood pellet mill,pellet packing machine to you,Based
on your requirments to design the wood pellet complete set line
Wood Pellet Cooling Machine
1) Small pellet machine need wood pellet cooling machine?
Normally is you want to install packing machine,the pellet cooling machine need installed,because after the pellet machine,the pellets are so hot.if directly packing,the pellets will have more steam,so the pellets will become soft.100-300kg/h small cqapacity,we don't recommend the pellet cooling machine to you.
2)Wood pellet cooling machine complete set line contain?
Main cooler,air-lock,level meter,fan,cyclone,screener mesh for selection.
