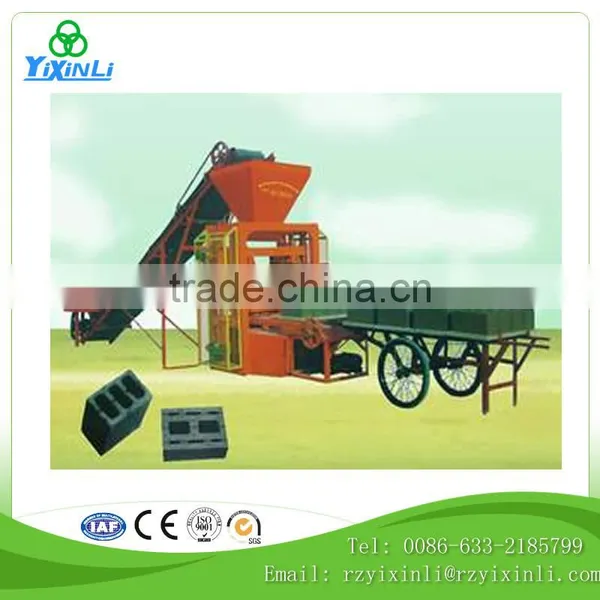

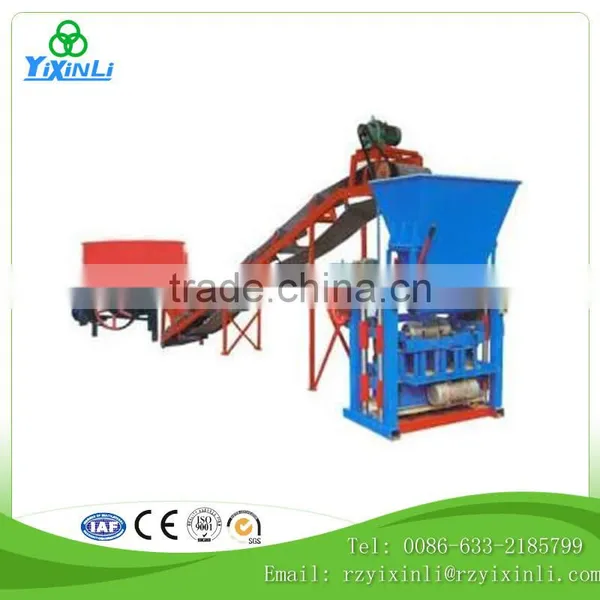

mobile concrete block brick making products machinery
1.Using electrical vibration to press block
2.Make various hollow block solid brick,paver brick by changing molds.
3.QT4-24 brick making machine seller does not need installation,it can be used directly by connecting with power.
4.Four person is required to operate the machine.one person feeds material.Two person operates block machine,two person transport blocks.
5.Low cost,QT4-24 brick making machine seller whole line is only 5700USD.

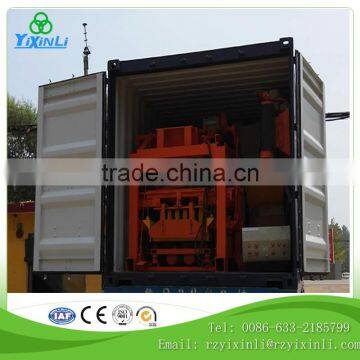

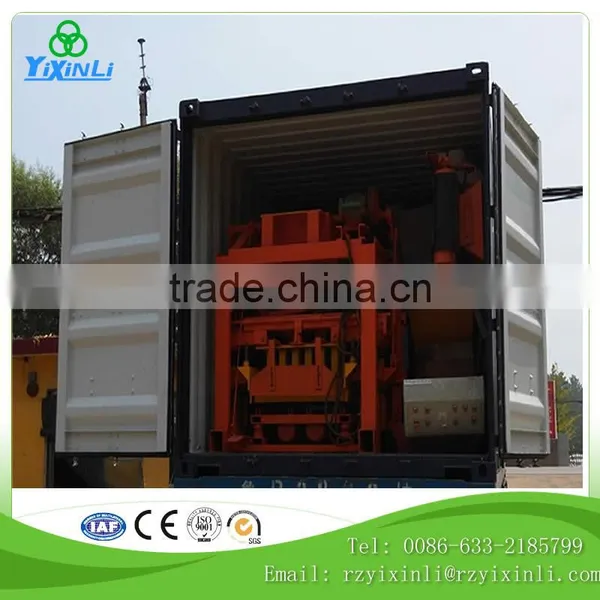

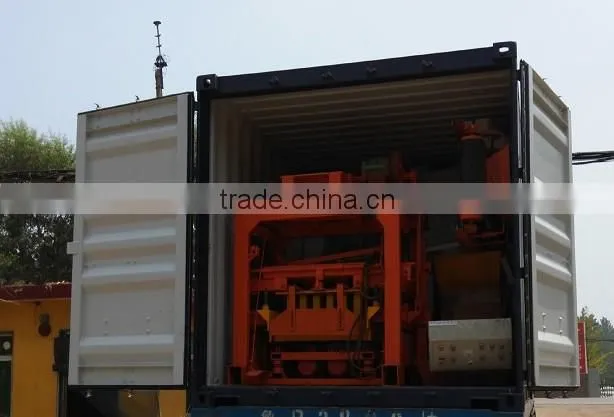

Shipped by container
Raw material
Cement:8-10%; Sand:30-40%;Stone dust:50-60%
Sand:60%;Fly ash:30%; Cement:8-10%; Gypsum:2%
3)Water consumption:3% of total raw material weight
Block curing
The blocks can be taken offer pallet after 18-24hrs(depend on local temperature)
Spray water on blocks in the first 3-5 days.No need spray water after 5 days
Then dry the block with 10-15 days.The block is finished
QT4-24 manual brick making machine in south africa main technical parameters
Dimension of host machine | 1850*1880*2240 mm | Host machine power | 13.4KW |
Voltage | as per local condition | Vibration force | 35.5KN |
Moulding period | 20-30S | Capacity | 22KVA |
The size of the pallet | 850×550×30mm | Mixer model | JD350 |
Weight of the machine | 3T |
|
|
2. QT4-24 manual brick making machine in south africa production capacity list
QT4-24 Production capacity list | |||
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
400X100X200 | 7 | 630-840 | 5040-6720 |
400X150X200 | 5 | 450-600 | 3600-4800 |
400X200X200 | 4 | 360-450 | 2880-3600 |
400X250X200 | 3 | 270-360 | 2160-2880 |

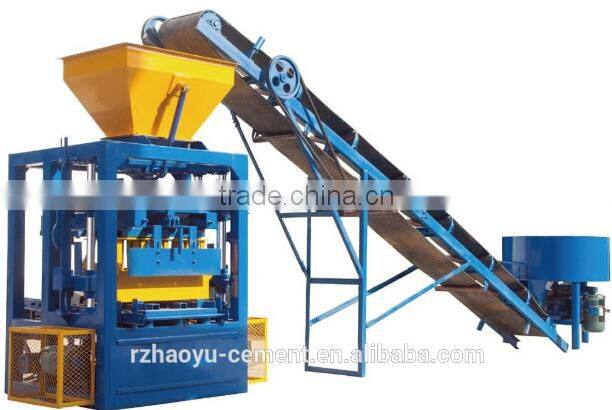

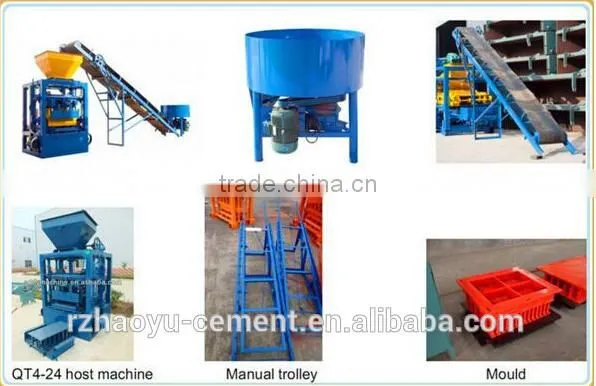

1)QT4-24 Host block machine one set
2)JD350 Concrete mixer one set
3)Belt conveyor one set
4)block mould one mould free
5)control unit one set
6)Two manual cars free
