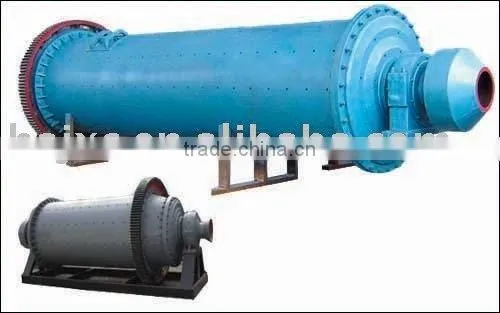

drum mill/ horizontal mill/rotary cylinder ball mill
- 10 Set / Sets per Month
- shanghai
- T/T
Product Details
Condition: | New | Type: | Other, Ball Mill, Mill | Place of Origin: | Jiangsu, China |
Brand Name: | right |
Product Description
Specifications
RGM series drum mill/ horizontal mill/rotary cylinder ball mill is widely used in the Grinding materials field of cement, phosphdrum mill/ horizontal mill/rotary cylinder ball mill
Ball mill is an efficient tool for grinding many materials into fine powder. The
ball mill is used to grind many kinds of mine and other materials, or to select
the mine. It is widely used in building material, chemical industry, etc. There
are two ways of grinding: the dry process and the wet process. It can be divided
into tabular type and flowing type according to different forms of discharging
material.
Application:
The ball mill is a key equipment for regrinding. It is widely used for the cement,
the silicate product, new type building material, fire-proof material, chemical
fertilizer, black and non-ferrous metal, glass, ceramics and etc. Our ball mill
can grind ore or other materials that can be grinded either by wet process or
by dry process.
Working principle:
This ball mill is horizontal type and tubular running device, has two warehouses.
This machine is grid type and its outside runs along gear. The material enters
spirally and evenly the first warehouse of the milling machine along the input material
hollow axis by input material device. In this warehouse, there is a ladder
scaleboard or ripple scaleboard, and different specification steel balls are
installed on the scaleboard, when the barrel body rotates and then produces centrifugal force, at this time , the steel ball is carried to some height and falls
to make the material grinding and striking. After grinded coarsely in the first
warehouse, the material then enters into the second warehouse for regrinding with
the steel ball and scaleboard. In the end, the powder is discharged by output
material board and the end products are completed.
Features and benefits:
This machine is made up of feeding part, discharging part, gyre part, transmission
part, (decelerator, small transmission gear, generator, electrical control) and
so on. The hollow axis adopts the cast steel and the lining can replace, the rotating
big gear processes in the way of casting rolling gear. The barrel body is
wearable well and bears wearable scaleboard. This machine run steadily and works
reliably.
For ball mill technical parameter or more details, please visit our website or contact
us directly.
Technical Data:
Specification(mm) | Production Capacity(t/h) | Effective Volume(t/h) | Power(kw) | Remarks. | Effective Size(mm) | ||
Ø900×3200 | 0.6-0.8 | 2 | 30 | steel liner | <25 | ||
Ø1200×4500 | 1.8-2.2 | 4.43 | 55 | steel liner | <25 | ||
Ø1500×5700 | 4.5-5.0 | 8.75 | 130 | steel liner | <25 | ||
Ø1830×6400 | 7.0-9.0 | 14.76 | 210 | steel liner dry | <25 | ||
Ø1830×6400 | 7.0-9.0 | 14.76 | 210 | rubber liner wet | <25 | ||
Ø1830×7000 | 7.0-12.5 | 16.44 | 245 | steel liner dry | <25 | ||
Ø2200×6500 | 14-15 | 21.3 | 380 | steel liner with 380V motor | <25 | ||
Ø2200×6500 | 14-15 | 21.3 | 380 | steel liner with 600V motor | <25 | ||
Ø2200×7000 | 15-16 | 23.1 | 380 | steel liner with 380 motor | <25 | ||
Ø2200×7000 | 15-16 | 23.1 | 380 | steel liner with 6000V motor | <25 | ||
Ø2200×7000 | 15-16 | 23.1 | 380 | ruber liner with 10000V motor | <25 | ||
Ø2400×8000 | 18-10/16-17 | 32.2 | 475 | steel liner with 6000V motor | <25 | ||
Ø2400×10000 | 18-22/17-19 | 40.3 | 630 | ZD80 with 10000V motor | <20 | ||
Ø2400×12000 | 25-27/20-23 | 46.5 | 800 | MBY630 with 10000V motor | <25 | ||
Ø2600×13000 | 30-32/26-28 | 60.5 | 1000 | MBY710 with 10000V motor | <25 | ||
Ø3000×9000 | 35-40/28-32 | 58.5 | 1000 | MBY710 with 10000V motor | <25 | ||
Ø3000×11000 | 40-44/33-35 | 71 | 1250 | MBY800 with 10000V motor | <20 | ||
Ø3000×12000 | 43-46/36-38 | 73.9 | 1400 | MBY800 with 10000V motor | <20 | ||
Ø3000×13000 | 45-48/38-40 | 76.8 | 1400 | MBT900 with 10000V motor | <20 | ||
Ø3200×13000 | 50-53/42-44 | 88.95 | 1600 | MBT1100 with 10000V motor | <20 | ||
Ø3800×13000 | 65-75 | 133.86 | 2000 | JS130-C-F1 with 10000V motor | <25 |
