Please feel free to contact us for more details about the mining ball mill, which is mainly used for mineral grinding.

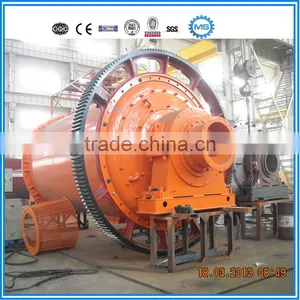

The crush ball mill introduction
the pregrinding mill is also called ball-crush mill is specially designed for raw material&clinker crushing in cement plant, it 's also used in mining, chemical , coal ceramics&metallurgy industries.
The ball-crush mill features:

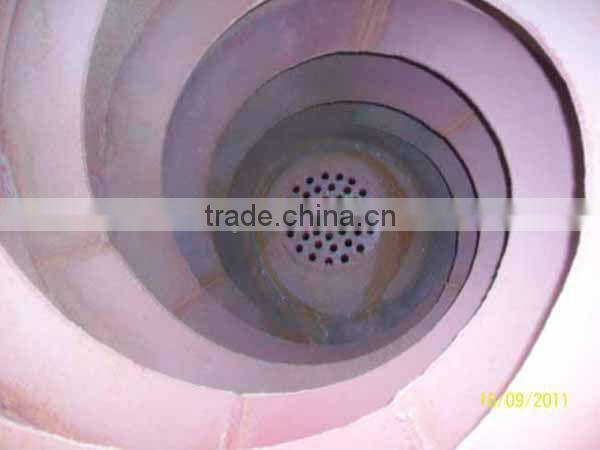

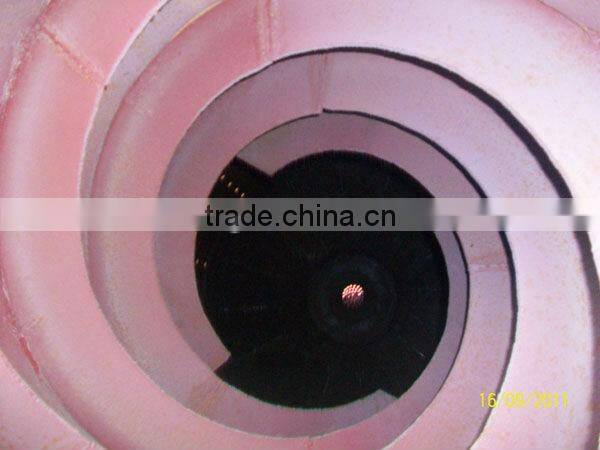

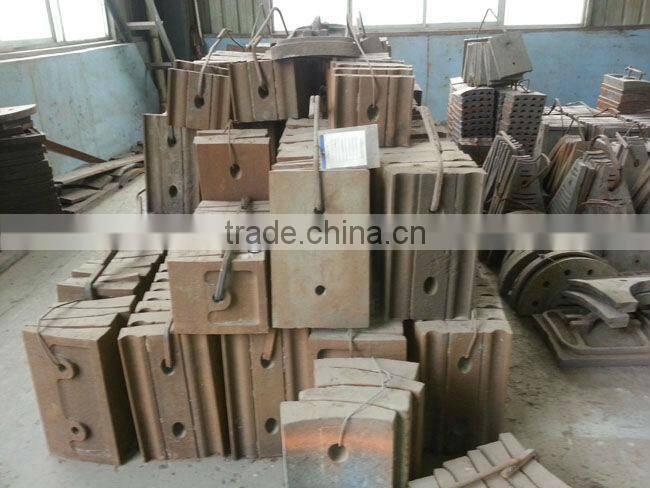

1) cricular groove stage liner is bolted on the shell inner side and big steel balls is used, therefore, lifting hegiht is big and crushing capacity is strong
2)materials are discharged through the grate plate at the end of shell, fine materials is seperated from the mill and rejected material are kept being grinded in the mill, product size could be adjusted through adjusting the grate gap
ball crush mill technical data
| specification | 3.2X4.1m | 3.5X4.1m | 3.8X4.1m | 4.2X4.1m | 4.2X5.0m |
| capacity(t/h) | 40-85 | 40-110 | 50-115 | 50-145 | 50-180 |
| Motor power(kw) | 570 | 630 | 800 | 1000 | 1250 |
| slow drive motor(kw) | 7.5 | 7.5 | 11 | 11 | |
| weight(T) | 100 | 125 | 130 | 145 | 158 |
...
