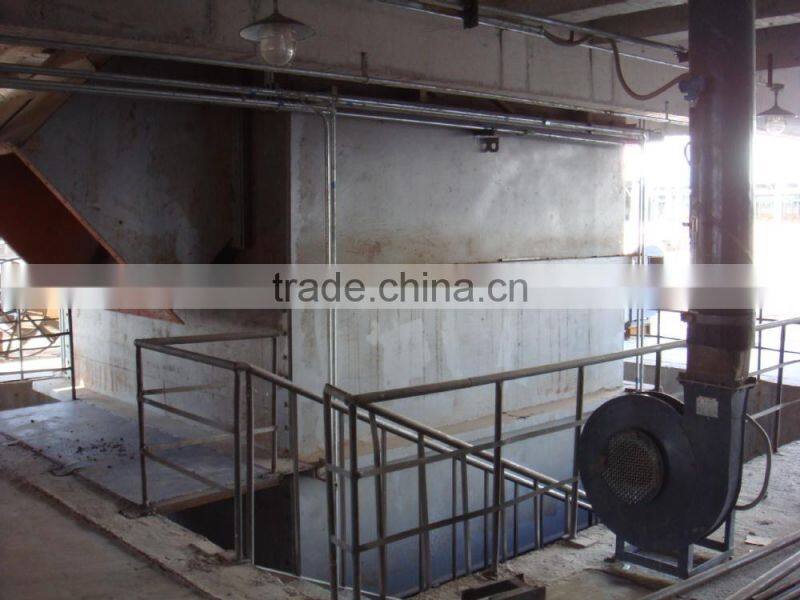

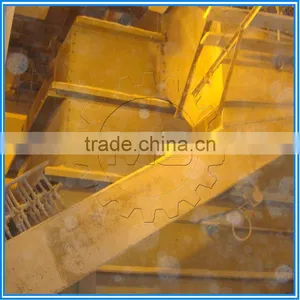

Vertical Cooler
Introduction of vertical cooler:
Vertical cooler is one of the activity of calcined lime equipment host, lime progressive generated after calcining rotary kiln into vertical cooler with refractory materials, the cross section of the cooler for the square, in which uniform distribution center cooling hood and chamber cooling cap, cap has a pipe connected to the outside of the fan, at the bottom of the cooler is equipped with the discharging mouth, each a motor vibration under the discharging mouth discharger, material accumulation within the cooler cover on the hood, and form a certain material layer thickness, cooling by external fan blowing wind, through the wind chamber into the hood, from hood appear after contact with high temperature materials, heat exchange, after air cooling material, under the action of motor vibration discharger, gradually get rid of cooler, is the material heated air, directly from the kiln head cover to rotary kiln, as a secondary air calcination. Vertical cooler is one of the activity of calcined lime equipment host, lime progressive generated after calcining rotary kiln into vertical cooler with refractory materials, the cross section of the cooler for the square, in which uniform distribution center cooling hood and chamber cooling cap, cap has a pipe connected to the outside of the fan, at the bottom of the cooler is equipped with the discharging mouth, each a motor vibration under the discharging mouth discharger, material accumulation within the cooler cover on the hood, and form a certain material layer thickness, cooling by external fan blowing wind, through the wind chamber into the hood, from hood appear after contact with high temperature materials, heat exchange, after air cooling material, under the action of motor vibration discharger, gradually get rid of cooler, is the material heated air, directly from the kiln head cover to rotary kiln, as a secondary air calcination.

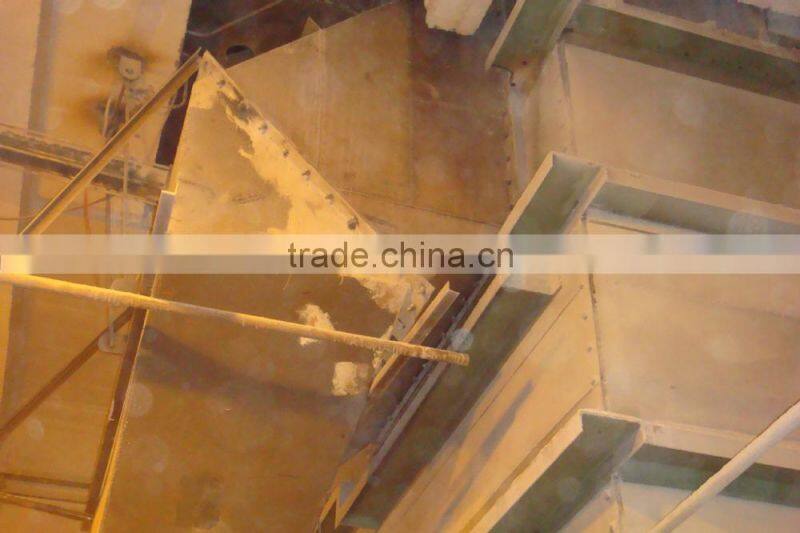

Vertical cooler system main structure
1, kiln hood: kiln hood at the upper part of the body, cooler and cooler to form a whole. In the kiln head cover high into the rotary kiln with shook his head at the end of the sealing device, equipped with scales, and kiln shell devices for the ring sleeve of shook his head sealing device. By the powder of the kiln head occasionally leaks out from kiln head seal shell bottom two discharge tube directly discharged into the cooler body.
2, the main gas cooler wait and aniseed clear out device: the cooler body cross section is square, composed of steel plate welding, steel plate covered with a layer of refractory, cooler has center cooling cap and chamber cooling hood. Article has tilted in the cooler body upper gas wait and aniseed, clear out connection to prevent wait in the rotary kiln aniseed or foreign bodies fall into the cooler, wait and aniseed and foreign body keep clear of in time. Clear out controlled by electrohydraulic push rod, convenient and flexible and open.
3, the lower cooling air chamber and vibration discharging device: the lower cooling air chamber in the bottom of the cooler body, with conical, external to wind around the room, the wind chamber through a pipe connected to the fan. The lower part of the cooling air chamber equipped with vibration discharging machine, connected to the discharge tapered bucket. Unloading machine vibration control cone hopper discharge capacity, to control the material of the cooler body internal layer thickness. 4, support device, supporting device for a frame structure, supporting the entire vertical cooler, connected to the bottom of the supporting device through the anchor bolts and foundation.
Vertical cooler process:
1, vertical cooler is one of the hosts of active lime.
2, after calcining rotary kiln of active lime in order into vertical cooler with refractory materials.
3, the cross section of the cooler for the square, in which uniform distribution center as cold cap and cold chamber cap, cap have a pipe connected to external fan.
4, at the bottom of the cooler is equipped with the discharging mouth, each a motor vibration under the discharging mouth discharger.
5, material accumulation within the cooler cover on the hood, and form a certain material layer thickness, cooling by external fan blowing wind, through the wind chamber into the cap.
6, from the hood with high temperature material after slipping out and complete the heat exchange, after air cooling material, in machine vibration under the action of discharger gradually eliminate the cooler, the material heated air, directly from the kiln head cover to rotary kiln, as a secondary air in the combustion
Vertical kiln technical specification:
| Model | Capacity (t/d) | Power kw | Pusher qty | Materials of pusher |
| JR-2-6 | 200 | 18.5 | 6 | refractory steel |
| JR-3-8 | 300 | 18.5 | 8 | |
| JR-4-8 | 400 | 22 | 8 | |
| JR-5-12 | 500 | 25 | 12 | |
| JR-6-12 | 600 | 25 | 12 | |
| JR-8-18 | 800 | 34 | 18 | |
| JR-10-22 | 1000 | 45 | 22 |
...
