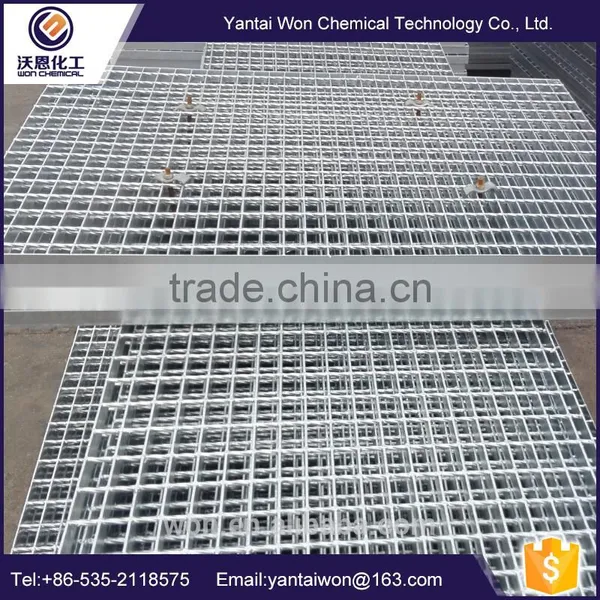

Help CenterGalvanized Steel Grating /Bar Grating
Related Products
Steel grating used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp,
dock, trench cover, drainage pit cover, maintenance platform,pedestrian/crowded pedestrian,
factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and
heavy equipment area, office buildings, apartments, train stations, department stores,hospitals,
amusement parks,etc
No |
Item |
Description |
1 |
Bearing bar |
25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
2 |
Bearing bar pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
3 |
Cross bar pitch |
38,50,76,100,101.6mm |
4 |
Material |
Q235,A36,SS304 |
5 |
Surface treatment |
Black, hot dipped galvanized, paint |
6 |
Thickness |
Thickness≥3mm, depth ≥19mm |
7 |
Standard |
China: YB/T 4001.1-2007 |
USA: ANSI/NAAMM(MBG531-93) | ||
UK: BS4592-1995 | ||
Australia: AS1657-1985 |
Packaging Detail:pallets or costomers request
Delivery Detail:25days
1. samples are avialable, small quantity can be free.
2.we can produce according to customers's special requirements.
3.we will serve you heart and soul around the colock.
As a large-scale modern manufacturer specialized in bonding steel bar gratings,steel structure products,hot-galvanizing and complete sets of mechanical and electronic equipment in China,Yantai Won Chemical Technology Co.,Ltd imported the advanced production equipment and technology from Japan ,with possessing advanced product design system.It can manufacture steel bar gratings of various materials and specifications from ordinary and stainless steels.With successful validation of ISO9001 and ISO14001,Its exquisite machining process and reliable after-sales service ensure the most perfect service for customers.Our products have been exported to Japan,South Korea,Australia,America and European countries etc.
