Help CenterMade In China Hot Dip Galvanized Steel Grating
Related Products

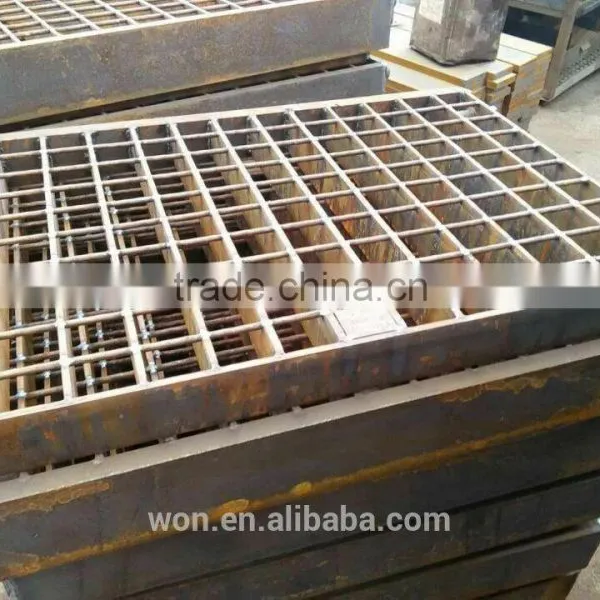

Steel Grating is made by Carbon or mild steel of certain sizes through the processing of slit cutting, serration-making, press welding, inspecting before galvanization, galvanizing, checking before packing, etc.
Steel grating is designed scientifically and equisitely, is very strong and safe to support floors and walkways. It can be used for ceiling, interior and exterior decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.
No |
Item |
Description |
1 |
Bearing bar |
25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
2 |
Bearing bar pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
3 |
Cross bar pitch |
38,50,76,100,101.6mm |
4 |
Material |
Q235,A36,SS304 |
5 |
Surface treatment |
Black, hot dipped galvanized, paint |
6 |
Thickness |
Thickness≥3mm, depth ≥19mm |
7 |
Standard |
China: YB/T 4001.1-2007 |
USA: ANSI/NAAMM(MBG531-93) | ||
UK: BS4592-1995 | ||
Australia: AS1657-1985 |
steel grating application
Steel grating used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit
cover, maintenance platform,
pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment
and heavy equipment area, office buildings,
apartments, train stations, department stores, hospitals,amusement parks,etc
Packaging Detail:pallets or costomers request
Delivery Detail:25days
1. samples are avialable, small quantity can be free.
2.we can produce according to customers's special requirements.
3.we will serve you heart and soul around the colock.
Yantai Won Chemical Technology Co.,Ltd imported from Japan the advanced production equipment and technology,and possessing advanced product design system in China.It can manufacture steel bar gratings of various materials and specifications from ordinary and stainless steels.With successful validation of ISO9001 and ISO14001,Its exquisite machining process and reliable after-sales service ensure the most perfect service for customers.Its products have been exported to Japan,South Korea,Australia,America and European countries.
