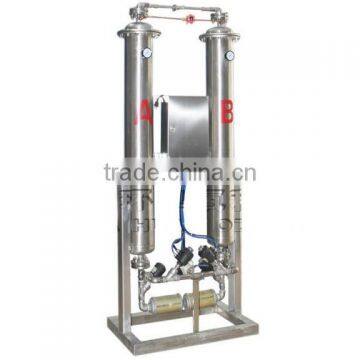

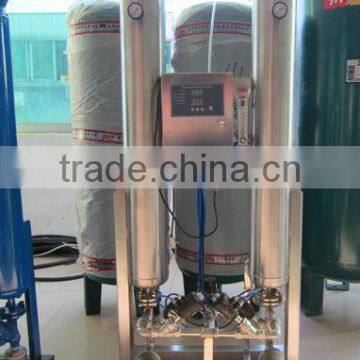

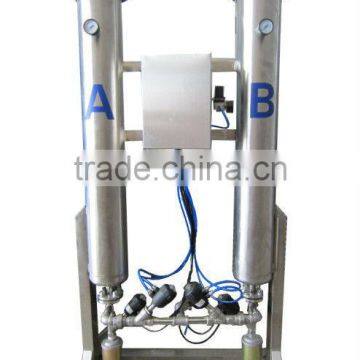

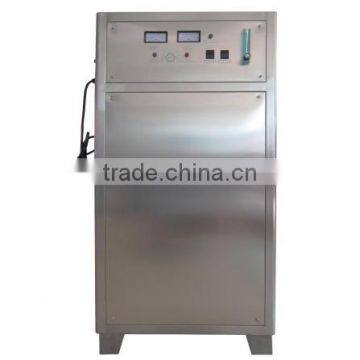

Help CenterIndustrial Psa Oxygen Generator 10lpm 20lpm 30lpm 40lpm
Related Products
-
Chinese High Purity 98% Oxygen Generation Plant for SaleUS$ 2,200 - 2,800MOQ: 1 Unit -
High Purity Oxygen Concentrator, Oxygen Generator for Welding With High QualityNegotiableMOQ: 1 Unit
-
High Oxygen Purity Oxygen Generator Machine, Electric Oxygen ConcentratorUS$ 500 - 10,000MOQ: 1 Set
-
High Purity Oxygen Generator, Oxygen Concentrator, Oxygen Producing MachineUS$ 500 - 10,000MOQ: 1 Set
-
Oxygen Generator for Aquaculture Equipment,oxygen Concentrator,oxygen Maker MachineUS$ 1,000 - 1,000MOQ: 1 Unit
Product description:
Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material. It operates at near-ambient temperatures and differs
significantly from cryogenic distillation techniques of gas separation.
Specific adsorptive materials (e.g., zeolites, activated carbon,molecular sieves, etc.) are used as a trap, preferentially adsorbing the target gas species at high pressure. The process then swings to low
pressure to desorb the adsorbed material.
PSA generators provide a cost-efficient source of oxygen. They are safer,less expensive, and more convenient as an alternative to tanks of cryogenic oxygen or cylinders and can be used in various industries including agricultural, pharmaceutical production, water treatment and
glass manufacture.
Product specification:
Features:
Industrial oxygen generator is used for aquaculture or feeding oxygen to ozone machine etc.
1. Used with import oxygen molecular sieve

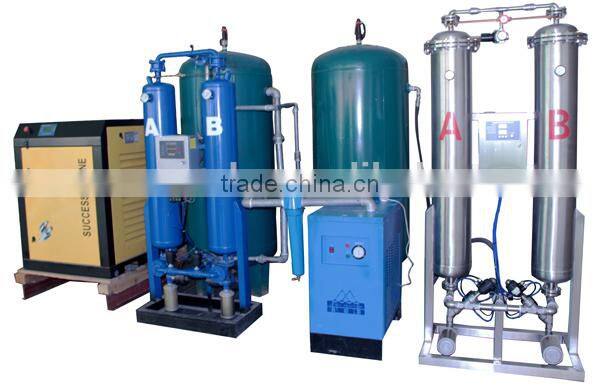

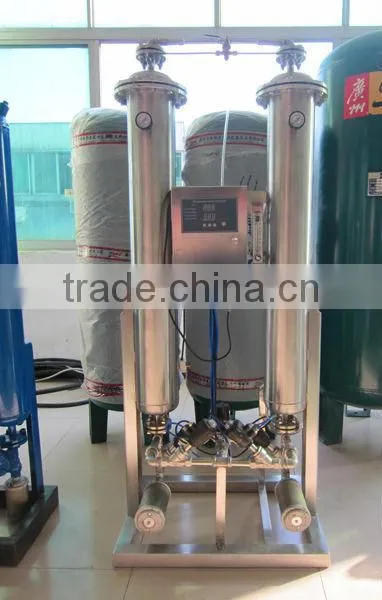

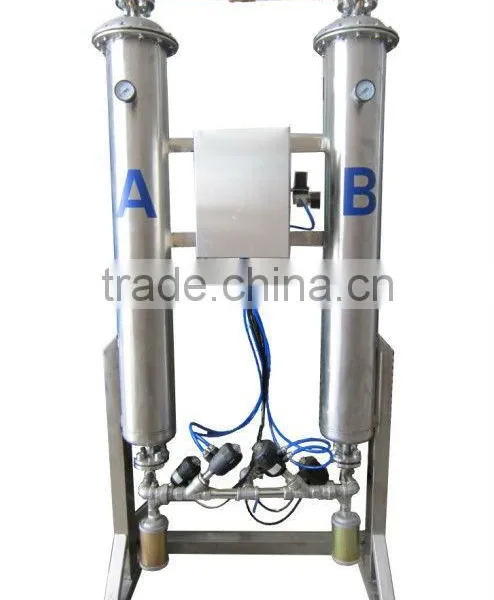

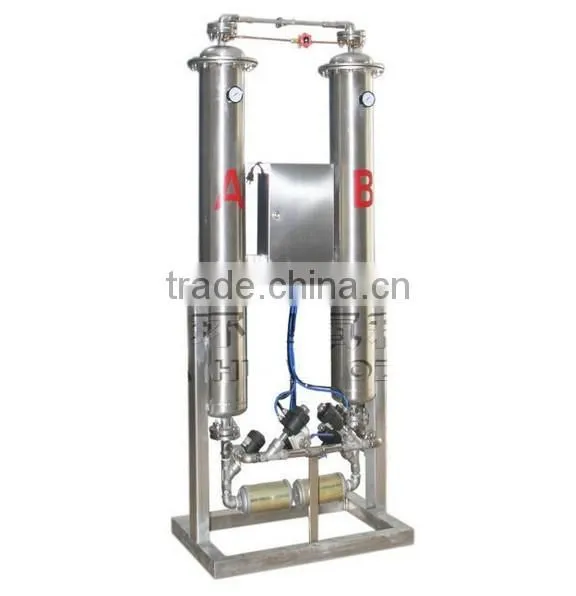

2. With refrigerant dryer and PSA oxygen generation unit, ultra-filters,inner air compressor, etc.
3. Under humidity is above 85%-90%, Refrigerated dryer is necessary to dry the hot compressed air which pumps into oxygen bed, to protect oxygen life time.
4. Control: Ammeter, Working indicator, Power indicator, On/Off, Oxygen flow meter, Voltmeter, Oxygen outlet, Fuse, Power input
More models

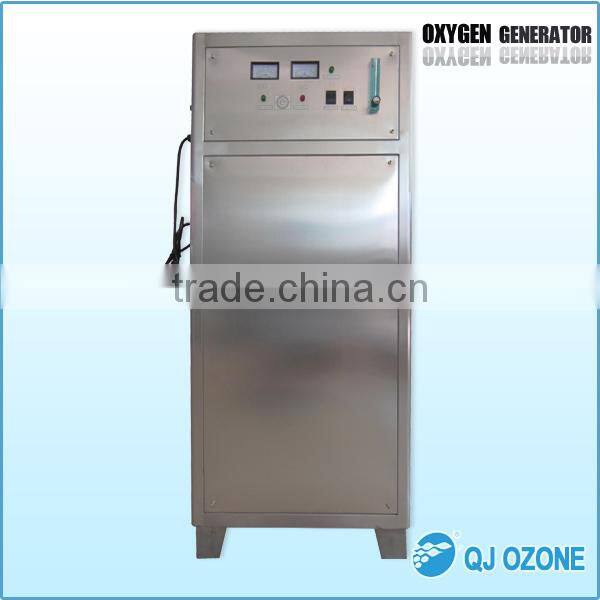

20l psa oxygen generator

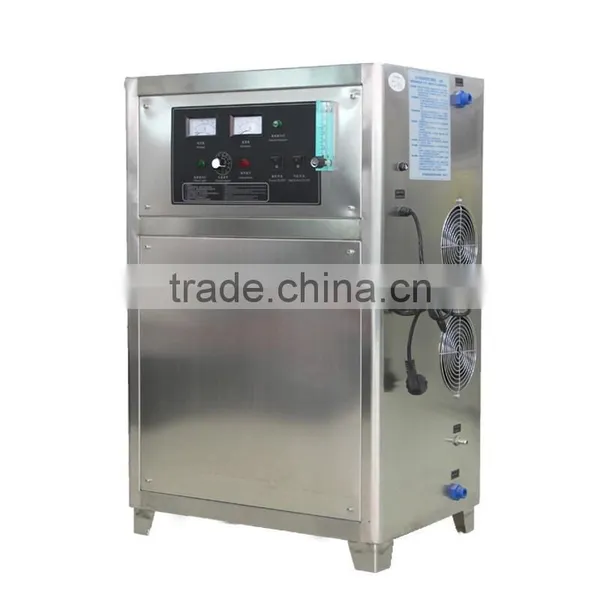

30l 50l psa oxygen generator system

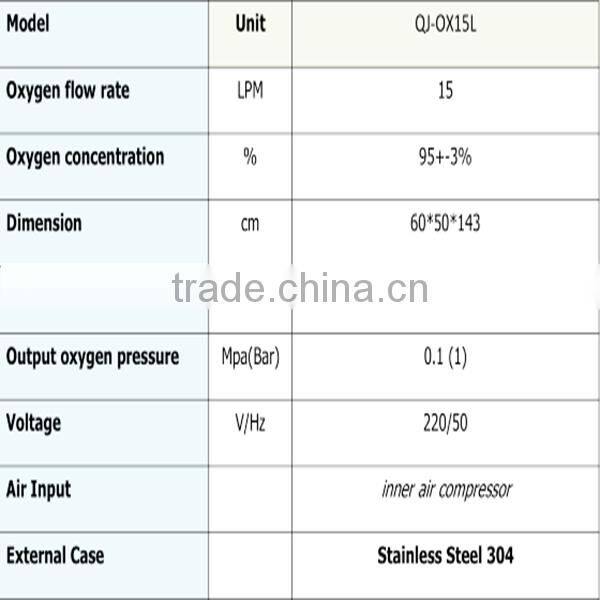

| Item/Model | Unit | QJ-OX3L | QJ-OX5L | QJ-OX10L | QJ-OX15L | QJ-OX50L |
| Oxygen Output | L/Min | 3 | 5 | 10 | 15 | 50 |
| Size | cm | 40*30*71 | 40*30*76 | 55*40*113 | 55*40*124 | 82*40*175 |
| Power Supply | V/Hz | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 |
Concentration |
% | 90+-3 | 90+-3 | 90+-3 | 90+-3 | 90+-3 |
| Weight | Kg | 35 | 38 | 48 | 48 | 50 |
Outlet pressure |
Mpa | 0.2 | 0.2 | 0.3 | 0.3 | 0.6~0.7 |
Requirement of air condition
| Temperature | -5~40°c |
| Humidity | 60-80% |
| Air with Dust Content | ≤20mg/m3 |
| Air with H2S,SO2 | ≤5PPM |
| Air with CO2 | ≤250PPM |
| Air with C2H2 | ≤0.5PPM |
| Air with CmHm | ≤20ppm |
| Air with Acidic Gas | No more Pungent Smell and Corrosive Smell |
| Vantilation | Draftiness |

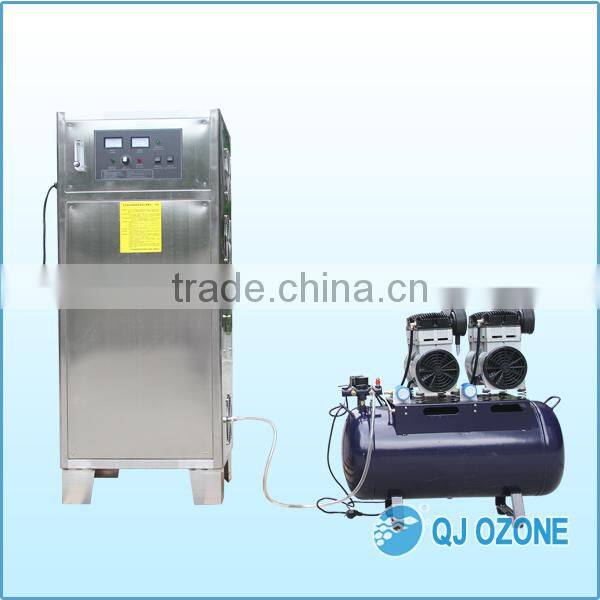

We can manufacture ozone genetator varied from 5grams to 2kg/hr ozone with oxygen feeding.also we can supply 500mg/hr to 2kg/hr ozone generator with air feeding, 3LPM to 300LPM PSA oxygen generator/concentrator,car air purifier with ozonizer and ionizer.
Guangzhou Quanju Ozone Tech Co. has been lined in small and medium size ozone generator manufacturer for over 10years,with high quality and resonable price for our dear customers.
Quanju ozone generators have been exported to many countries:
Chile,UAE,Korean,Malaysia,Hongkong,India, Indonesia, Australia, Brazil, Israel, Ghana, Italy, Turkey, Iran, England, Canada, Nigeria,USA, etc.
Packing:wooden box
Shipping:by air /by sea/by express
Contact: marz @
Tel/Wechat/whatsapp:13126427579
Skype: ozonemade-marz
