fish farming oxygen producer,oxygen generating machine,industrial oxygen concentrator
Product description:
Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material. It operates at near-ambient temperatures and differs
significantly from cryogenic distillation techniques of gas separation.
Specific adsorptive materials (e.g., zeolites, activated carbon,molecular sieves, etc.) are used as a trap, preferentially adsorbing the target gas species at high pressure. The process then swings to low
pressure to desorb the adsorbed material.
PSA generators provide a cost-efficient source of oxygen. They are safer,less expensive, and more convenient as an alternative to tanks of cryogenic oxygen or cylinders and can be used in various industries including agricultural, pharmaceutical production, water treatment and
glass manufacture.
Product specification:
Features:

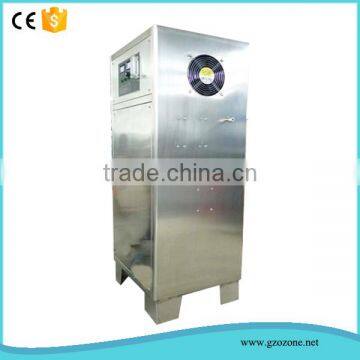

Industrial oxygen generator is used for aquaculture or feeding oxygen to
ozone machine etc.
1. Used with import oxygen molecular sieve

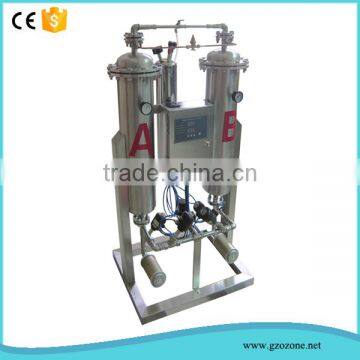

2. With refrigerant dryer and PSA oxygen generation unit, ultra
filters,inner air compressor, etc.
3. Under humidity is above 85%-90%, Refrigerated dryer is necessary to
dry the hot compressed air which pumps into oxygen bed, to protect
oxygen life time.
4. Control: Ammeter, Working indicator, Power indicator, On/Off, Oxygen
flow meter, Voltmeter, Oxygen outlet, Fuse, Power input
More models
20l psa oxygen generator
30l 50l psa oxygen generator system
| Item/Model | Unit | QJ-OX3L | QJ-OX5L | QJ-OX10L | QJ-OX15L | QJ-OX50L |
| Oxygen Output | L/Min | 3 | 5 | 10 | 15 | 50 |
| Size | cm | 40*30*71 | 40*30*76 | 55*40*113 | 55*40*124 | 82*40*175 |
| Power Supply | V/Hz | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 |
Concentration |
% | 90+-3 | 90+-3 | 90+-3 | 90+-3 | 90+-3 |
| Weight | Kg | 35 | 38 | 48 | 48 | 50 |
Outlet pressure |
Mpa | 0.2 | 0.2 | 0.3 | 0.3 | 0.6~0.7 |
Requirement of air condition
| Temperature | -5~40°c |
| Humidity | 60-80% |
| Air with Dust Content | ≤20mg/m3 |
| Air with H2S,SO2 | ≤5PPM |
| Air with CO2 | ≤250PPM |
| Air with C2H2 | ≤0.5PPM |
| Air with CmHm | ≤20ppm |
| Air with Acidic Gas | No more Pungent Smell and Corrosive Smell |
| Vantilation | Draftiness |
We can manufacture ozone genetator varied from 5grams to 2kg/hr ozone with oxygen feeding.also we can supply 500mg/hr to 2kg/hr ozone generator with air feeding, 3LPM to 300LPM PSA oxygen generator/concentrator,car air purifier with ozonizer and ionizer.
Guangzhou Quanju Ozone Tech Co. has been lined in small and medium size ozone generator manufacturer for over 10years,with high quality and resonable price for our dear customers.
Quanju ozone generators have been exported to many countries:
Chile,UAE,Korean,Malaysia,Hongkong,India, Indonesia, Australia, Brazil, Israel, Ghana, Italy, Turkey, Iran, England, Canada, Nigeria,USA, etc.
Packing:wooden box
Shipping:by air /by sea/by express
