Specifications
screw conveyor helical blade1.Popular in Aisa, Middle East
2.Easy transporation & maintenance
3.High quality
4.CE
screw conveyor helical blade
The introduction of LSY screw conveyor helical blade :
It is a compact structure, cross-sectional area is small, light weight, good sealing performance, transmission efficiency, technology and flexible layout, loading, folding, mobile convenience, safe operation.
As a specialised version of the modular TU Screw Conveyor System, LSY Screw Conveyors are manufactured in carbon steel with a suitable surface finishing and powder coating.
They are made up from a tubular trough that is equipped with at least one inlet and outlet spout, a welded flange at each tube end, helicoid screw flighting welded on a centre pipe with a coupling bush at each end, two end bearing assemblies complete with self-adjusting shaft sealing unit (one of the bearing assemblies incorporated in the drive unit), a number of intermediate hanger bearings depending on the overall length of the screw conveyor.
Furthermore, LSY Screw Conveyors are equipped with a gear motor that suits the application. LSY Screw Conveyors are of the medium-heavy-duty type.
The application of the LSY screw conveyor helical blade
Applies to transport all kinds of powder, tablets, small block of bulk materials such as clay powder, coal, cement, sand, grains, small lump, pebble, and cast-iron chips and so on. Not suitable for conveying sticky, easy caking, perishable materials.
The product is particularly suitable for the concrete mixing station from the cement silo to the mixer or from the cement silo to the batching of bulk cement transport between machines. Conveying height of 6 meters, 8 meter
The advantage of the LSY screw conveyor helical blade
1. Adopt high-quality steel pipe with good integral rigidity
2. Adopt double-pitch paddles, which decrease the compressed degree of material when being transported
3. Adopt high-quality reducer with heavy-duty design, large torque and low noise.
4. Adopt universal ball joint, which facilitates installation, adjustment and steering.
5. Adopt high-quality middle-hoisting bearing and tail bearing
6. Sufficient spare parts with complete specification
7. Large stock for common diameter of 168.219.273.323 and 407, dimension angle can be customized according to your requirement .
8. Adopt standard parts and components, which makes it is convenient for transportion
9. Adopt once-forming spiral double pitch paddles, which will never block the material
Options & Accessories
Different types of inlet and outlet spouts
Additional inspection hatches
External supports
Drive unit at outlet end
Selection of gear ratios (different feed rates)
The main technical parameter of the LSY screw conveyor helical blade
Model |
Length |
Speed |
Diameter |
Angle |
Capacity |
Model |
Power |
|
LSY 106-2.5 |
2.5m |
112 r/min |
φ180mm |
≤20° |
25 t/h |
Y100L2-4 |
3 kw |
|
LSY 160-4.5 |
4.5m |
112 r/min |
φ180mm |
≤20° |
25 t/h |
Y112M-4 |
4 kw |
|
LSY 200-6 |
6m |
100 r/min |
φ219mm |
≤45° |
35 t/h |
Y132S-4 |
5.5 kw |
|
LSY 200-8 (9) |
8 (9)m |
100 r/min |
φ219mm |
≤45° |
35 t/h |
Y132M-4 |
7.5 kw |
|
LSY 250-8 (9) |
8 (9)m |
90 r/min |
φ273mm |
≤45° |
45 t/h |
Y160L-4 |
15 kw |
|
LSY 300-9 (12.15) |
9 (12.15) m |
80 r/min |
φ325mm |
≤45° |
75 t/h |
Y180L-4 |
18.5 kw |

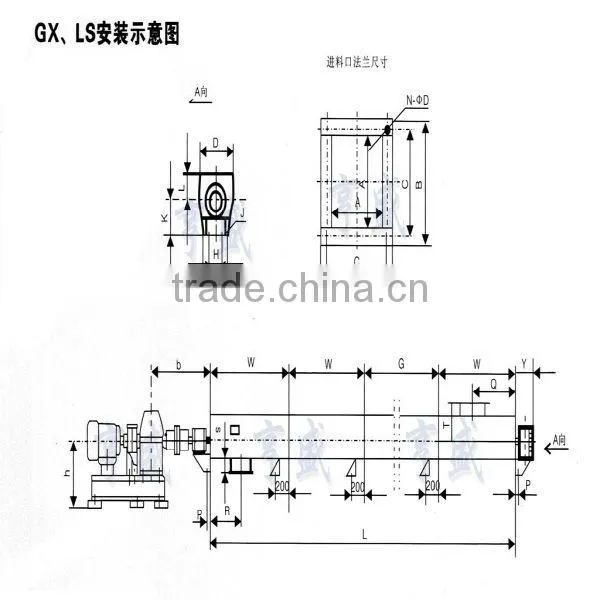

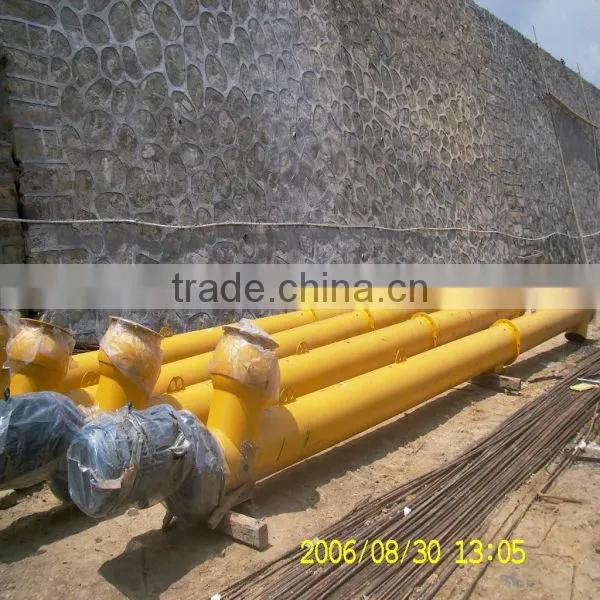

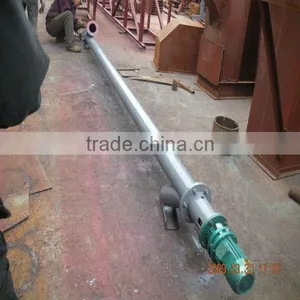

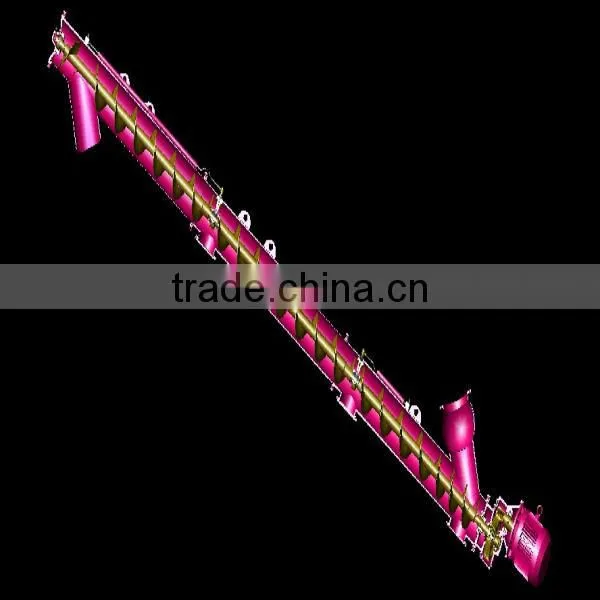

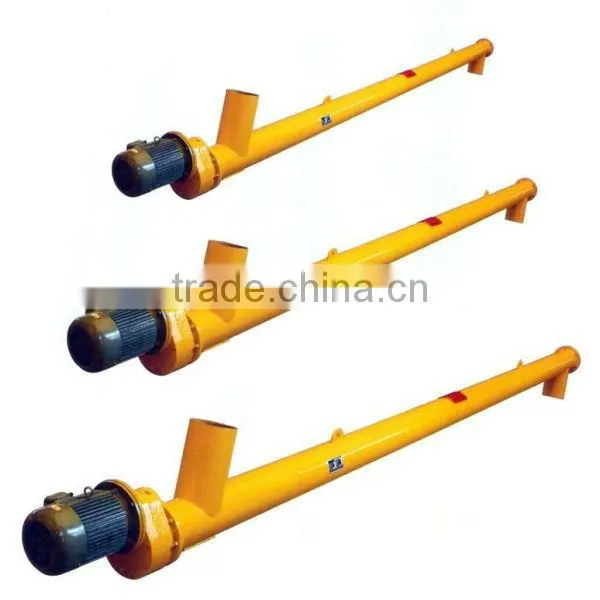

The Pictures of the LSY screw conveyor helical blade
