Help CenterMini Mobile Batching Plant YHZS60m3 Indian Price
Related Products
-
Newly YHZS60m3 Mobile Cement PlantUS$ 60,000 - 80,000MOQ: 1 Set -
YHZS60m3 Mobile Concrete Batching Plant Installed in CzechUS$ 60,000 - 80,000MOQ: 1 Set
-
Low Cost Mobile YHZD25m3 Concrete Machine With Small Concrete MixerUS$ 4,000 - 90,000MOQ: 1 Set
-
2013 Bona YHZS25m3 Mobile Concrete Mixing Plant/concrete Batch TruckUS$ 40,000 - 90,000MOQ: 1 Set
-
Bona YHZS25m3 Mobile Plant for Sale in UaeUS$ 49,500 - 53,000MOQ: 1 Set
Specifications
mini mobile batching plant1.Mixing capacity:60 m3/h
2.Mixing engine: double shaft 1000
3.PLD:1600

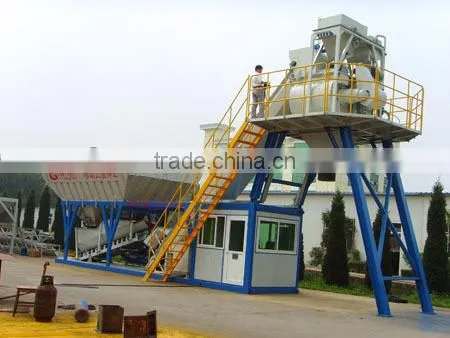

1.mini mobile batching plant picture
2. mini mobile batching plant features
YHZS series mini mobile batching is bran-new and tandem mobile type, which owned great unique configuration, That tandem unit centralize many tasks of collecting material, weighing, mixing, delivering and etc, human- computer interface is simple and clear, work is stable, whole mobile is perfectly. It is best model used in road, bridge, port, water and electricity and jects.
1.Simple structure, large maintaining space, maintenance is convenient.
2.The promotion system multiple protection is stable reliable with high efficiency.
3.Space Occupied is small, installation and relocation are easy.
4.Using automatic industrial control system. The management function is powerful and reliable.
5.Major electrical components are used internationally well known brands.
6.Particular suitable for small and middle sized of concrete construction needs Schematics of Rapid Installation Concrete Mixing Station.
3.mini mobile batching plant main parameter
Model |
YHZS60 mini mobile batching |
Capacity |
60m3/h |
Max. dragging speed: |
40km/h |
Discharging height |
3800mm |
After-sale service |
Erection & commissioning, operator training |
Warranty |
12 months after erection |
|
|
Concrete mixer Model & Quantity |
YJS1000 Concrete Mixer, 1 unit |
Discharging volume |
1000L |
Charging volume |
1500L |
Mixing cycle |
60s |
Max. mixing size |
80/60mm |
|
|
Aggregate batching machine Model & Quantity |
PLD2400, 1 unit |
Storage bins quantity |
2 or 4 sorts |
Aggregate scale hopper |
2400L |
Aggregate feeding to mixer by |
Special Belt conveyor |
Measurement precision |
3750kg,±2% |
|
|
Weighing system Principle & Quantity |
Force sensor, 1 set |
Water weighing precision |
360kg,±1% |
Cement weighing precision |
720kg,±1% |
Additive weighing precision |
36kg,±1% |
|
|
Control system Type & Quantity |
Computer auto-control, 1 set |
Control panel board |
Buttons, lights, meters, etc |
PLC brand |
SIEMENS/SCHNEIDER |
Control panel board |
Buttons, lights, meters, etc |
Electric components |
Relays, contactors, etc |
Control cabin Size & Quantity |
≈4m2, 1 unit |
Air conditioner |
1 unit, Optional parts |
Printer brand |
OKI/PANASONIC/EPSON |
Computer with control software |
1 unit |
Industrial monitor system |
Optional parts |
Uninterrupted Power Supply (U.P.S) |
1 unit |
|
|
High-pressure air system Quantity |
1 set |
Air compressor |
0.6MPa |
Oil-water separator |
1 unit |
Solenoid valve |
1 set |
|
|
Documentation |
1 set |
Spare Parts |
1 set |
Operation Guide |
1 unit |
Maintenance Guide |
1 unit |
Electrical Diagram |
1 unit |
|
|
Cement storage and feeding system |
Optional parts |
Screw conveyor diameter |
219/273mm |
Cement silo capacity |
50t/60t/80t/100t |
|
|
Dragging chassis |
1 set |
Drag steering |
1 unit |
Back axle & shock absorption |
1 set |
Back tyres |
1 se |
Adjustable framework |
1 set |
4.mini mobile batching plant certification

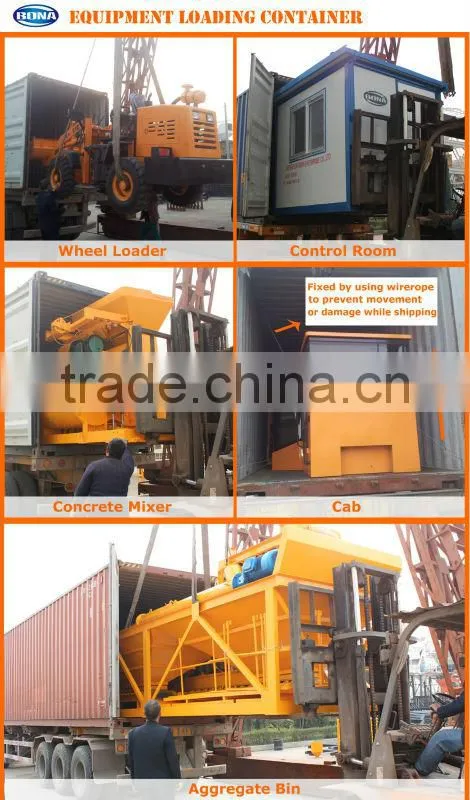

5. mini mobile batching plant packing
6.Our factory
7.Customers visit
8.Other products

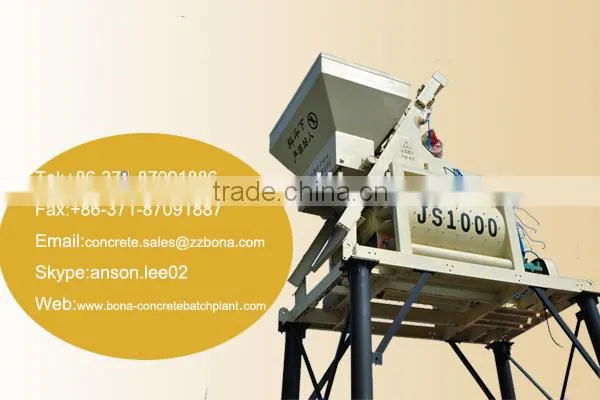

9.Contact information
....
