Low Cost Mobile YHZD25m3 Concrete Machine With Small Concrete Mixer
Specifications
mobile concrete machine:
1.Mixing capacity:25 m3/h
2.Mixing engine: single shaft JD500
3.ISO9001 CE
Mobile Concrete Mixing Plant:
Characters of YHZS Series of mobile concrete machine:
YHZS series mobile concrete machine is bran-new and tandem mobile type, which owned great unique configuration,
That tandem unit centralize many tasks of collecting material, weighing, mixing, delivering and etc, human- computer
interface is simple and clear, work is stable, whole mobile is perfectly. It is best model used in road, bridge, port, water and
electricity and jects.
1.Simple structure, large maintaining space, maintenance is convenient.
2.The promotion system multiple protection is stable reliable with high efficiency.
3.Space Occupied is small, installation and relocation are easy.
4.Using automatic industrial control system. The management function is powerful and reliable.
5.Major electrical components are used internationally well known brands.

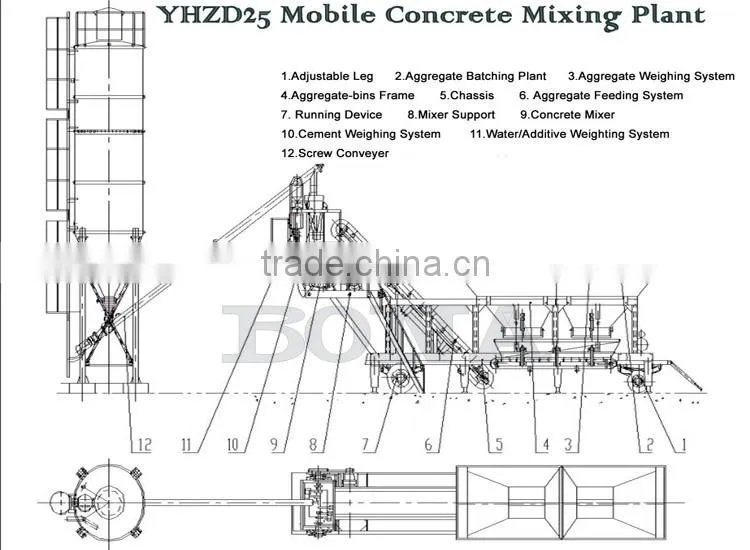

6.Particular suitable for small and middle sized of concrete construction needs Schematics of Rapid Installation Concrete Mixing Station.
After-Sale Service:
1. Erection and Commissioning;
2. Operator Training;
3. Spare Parts Supply.
Mobile concrete machine parameter:
1.MIXING SYSTEM
Single shaft concrete mixer: JD500
Volume: 800L
Capacity: 500L
Mixing speed: 24r/min
Mixing blade: 8 pcs
Mixer motor: 18.5 kw
Weight: 4700kg
2.AGGREGATE SYSTEM
2.1 Aggregate Batcher PLD800-4
Volume: 4×3m3=12 m3
Sort of aggregate: 4
Power: 6.6 kw
Sand vibrator: 0.37kw
2.2.Aggregate Belt Conveyor 1 unit:
Width: 650 mm
Length: 13800 mm
Speed: 1.6 m/s
Motor: 5.5 kw
3.WEIGHING SYSTEM:
3.1 Aggregate weighing 1 unit
Weighing Capacity: 1.6 m3
Precision: ±2%
3.2 Cement weighing 1 unit
Weighing Capacity: 0.4 m3
Precision: ±1%
3.3 Water Weighing 1 unit
Weighing Capacity: 0.2 m3
Precision: ±1%
3.4 Additive Weighing 1 unit
Weighing Capacity: 0.02 m3
Precision: ±1%
4. AIR SYSTEM
Air Compressor: 1 unit
Power: 5.5 kw
Pressure: 0.67 Mpa
Air flow: 0.7 m3/min
5.CONTROL SYSTEM:
PLC command and Control operation.
Main electrical components: Schneider/LG
17’’ colorful computer
and Auto Control is freely changeable.
6.Cement Screw Conveyer: 1 unit
Diameter: Φ219mm
Length: 8m
How to contact us?
If you are interested in our products., please contact us!!!!
