Help Center2013 Bona YHZS25m3 Mobile Concrete Mixing Plant/concrete Batch Truck
Related Products
-
Bona YHZS25m3 Mobile Plant for Sale in UaeUS$ 49,500 - 53,000MOQ: 1 Set -
Bona Newly YHZS60m3 Mobile Concrete Batching Plant in PhilippineUS$ 60,000 - 80,000MOQ: 1 Set
-
Used Concrete Batching Plant for Sale in uk With PartsUS$ 9,000 - 30,000MOQ: 1 Set
-
Used Cement Batch Plant for SaleUS$ 19,999 - 95,000MOQ: 1 Unit
-
Floating Concrete Batching Plant for Sale AustraliaUS$ 5,999 - 30,000MOQ: 1 Set
Specifications
concrete batch truck1.Mixing capacity:25 m3/h
2.Mixing engine: single shaft JD500
3.PLD:800
concrete batch truck

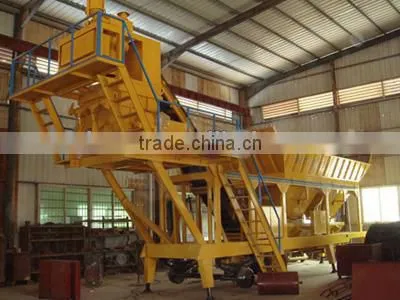

YHZS25m3 mobile concrete batch truck:
1.Mixing capacity:25 m3/h
2.Mixing engine: single shaft JD500
3.ISO9001 CE
Mobile Concrete Mixer:
Characters of YHZS Series of mobile concrete batch truck:
YHZS series mobile concrete batch truck is bran-new and tandem mobile type, which owned great unique configuration, That tandem unit centralize many tasks of collecting material, weighing, mixing, delivering and etc, human- computer interface is simple and clear, work is stable, whole mobile is perfectly. It is best model used in road, bridge, port, water and electricity and jects.
1.Simple structure, large maintaining space, maintenance is convenient.
2.The promotion system multiple protection is stable reliable with high efficiency.
3.Space Occupied is small, installation and relocation are easy.
4.Using automatic industrial control system. The management function is powerful and reliable.
5.Major electrical components are used internationally well known brands.
6.Particular suitable for small and middle sized of concrete construction needs Schematics of Rapid Installation Concrete Mixing Station.
After-Sale Service
1. Erection and Commissioning;
2. Operator Training;
3. Spare Parts Supply.
Mobile concrete batch truck parameter:
YHZS(D) Series of Mobile concrete batch truck Main Technical Specifications | ||||
Model |
YHZD25 |
YHZS50 |
HZS75 |
|
Production (m3/h) |
25 |
50 |
75 |
|
Mixer |
Type |
JD500 |
JSJ1000 |
JSJ1500 |
Power (kW) |
1×18.5 |
2×18.5 |
2×30 |
|
Output (m3) |
0.5 |
1 |
1.5 |
|
Grain Size (mm) |
≤60 |
≤60 |
≤80 |
|
Batcher |
Hopper Capacity(m3) |
4 |
6 |
6 |
Hopper Quantity |
4 |
4 |
4 |
|
Conveyor Capacity (t/h) |
200 |
400 |
400 |
|
|
Weighing Scope Accuracy |
Aggergate(kg) |
1000±2% |
2000±2% |
3000±2% |
Cement (kg) |
300±1% |
600±1% |
800±1% |
|
Water (kg) |
200±1% |
300±1% |
400±1% |
|
Admixture (kg) |
20±1% |
20±1% |
20±1% |
|
Trailed speedkm/h |
15 |
15 |
15 |
|
Wheeldistance(outside)mm |
2800 |
3400 |
3400 |
|
Turning radiusmm |
11 |
15 |
15 |
|
Total weightkg |
20000 |
25000 |
32000 |
|
Power(kW) |
35 |
65 |
90 |
|
Discharge Height (m) |
2.8 |
2.8 |
2.8 |
|

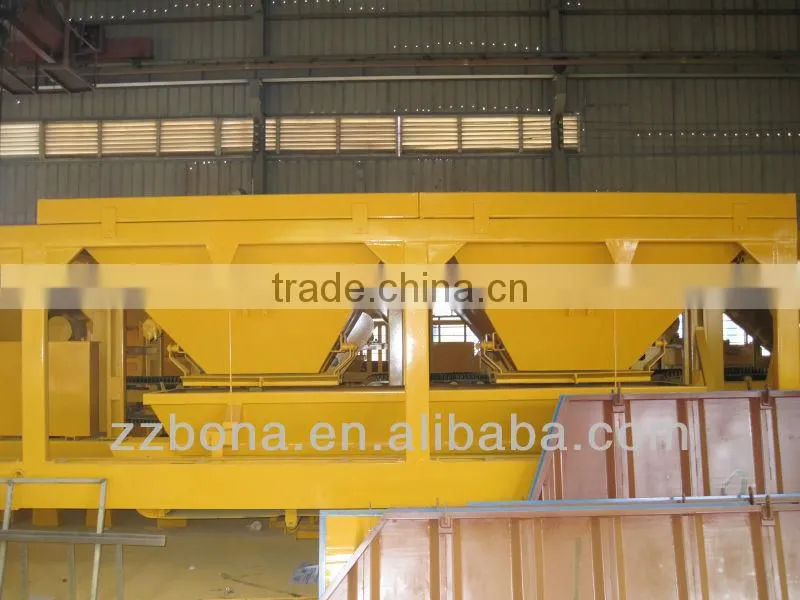

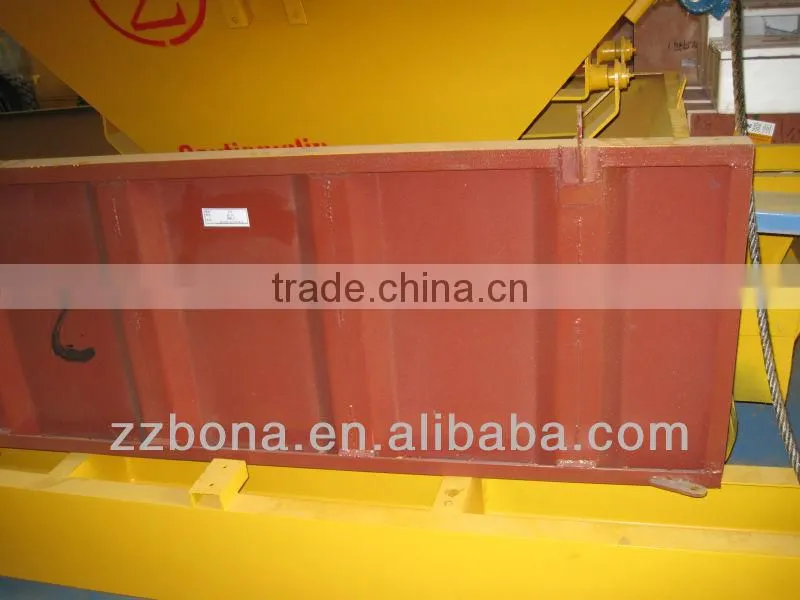

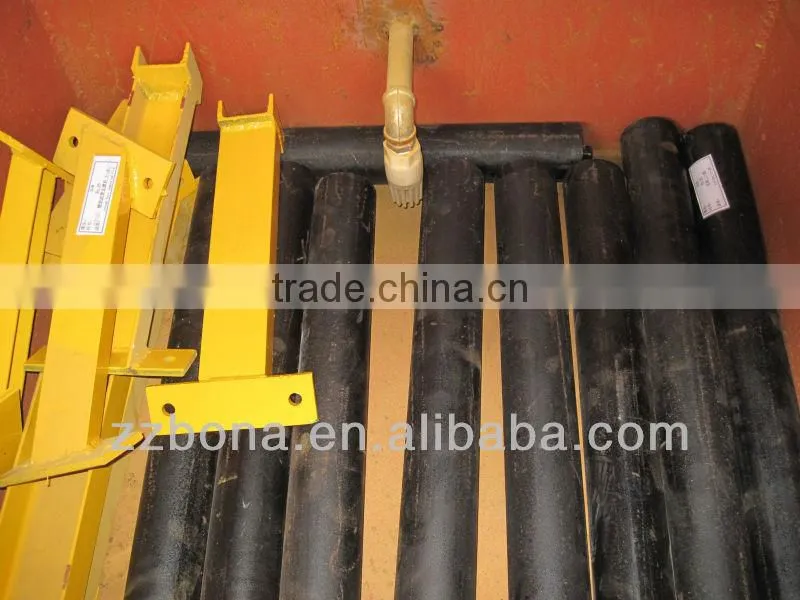

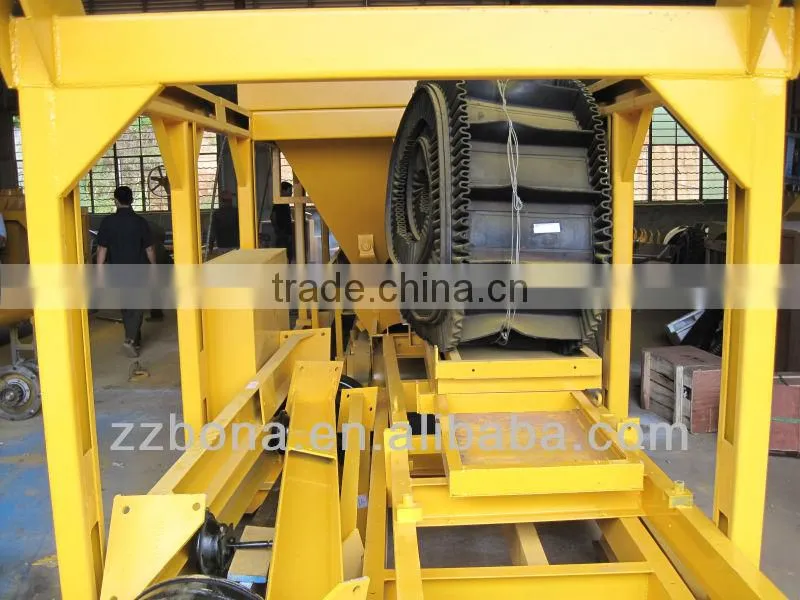

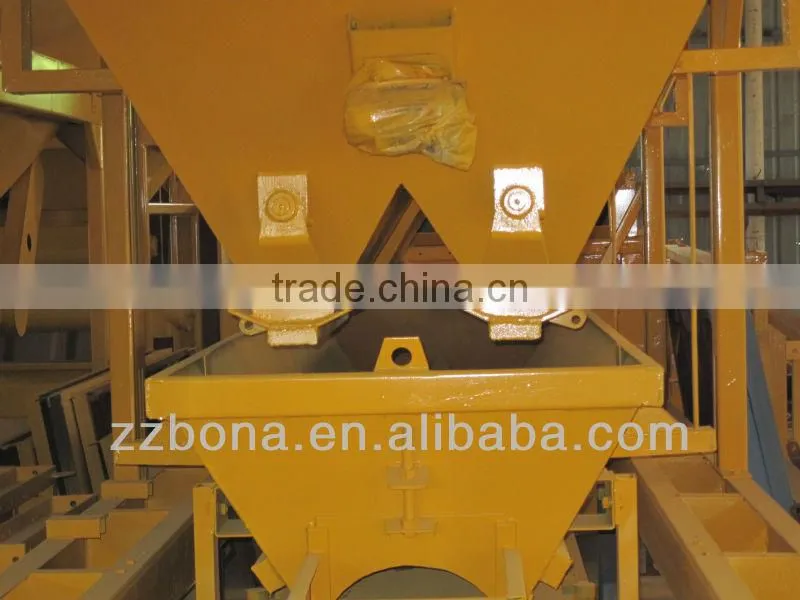

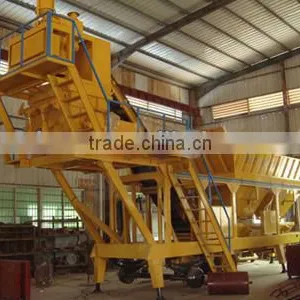

YHZS25m3 mobile concrete batch truck for your reference.

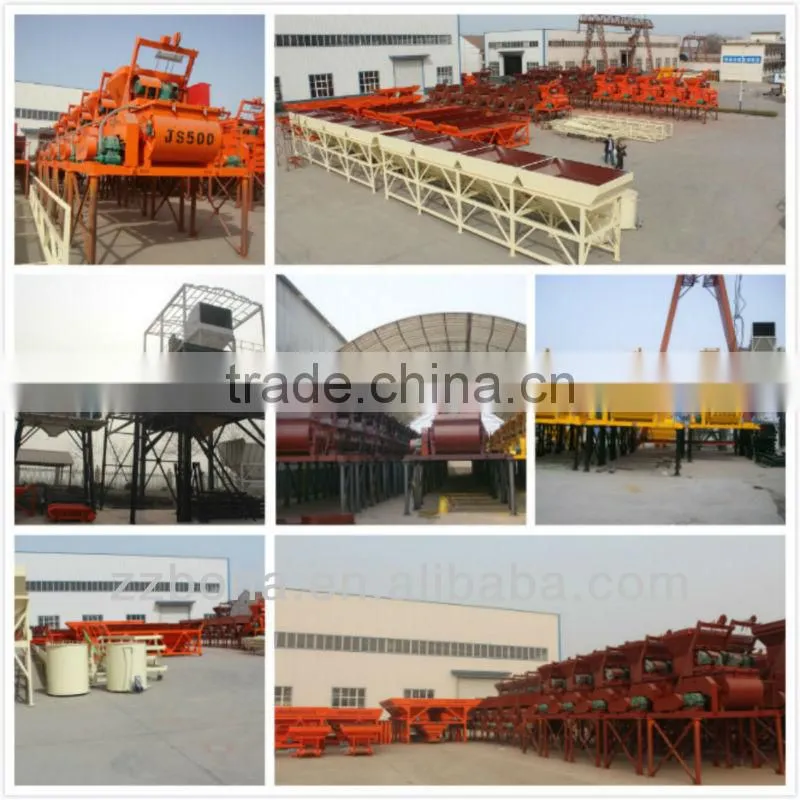

Bona factory
Bona overseas customer visitation
....
