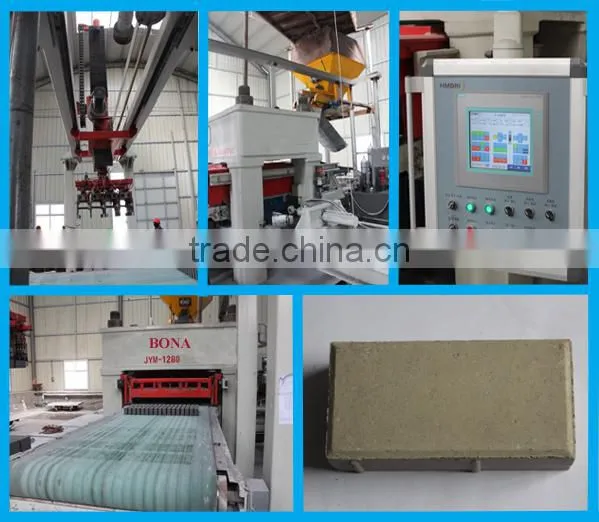

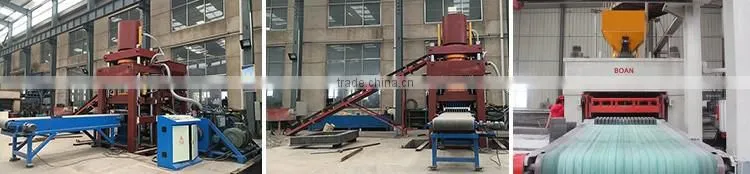

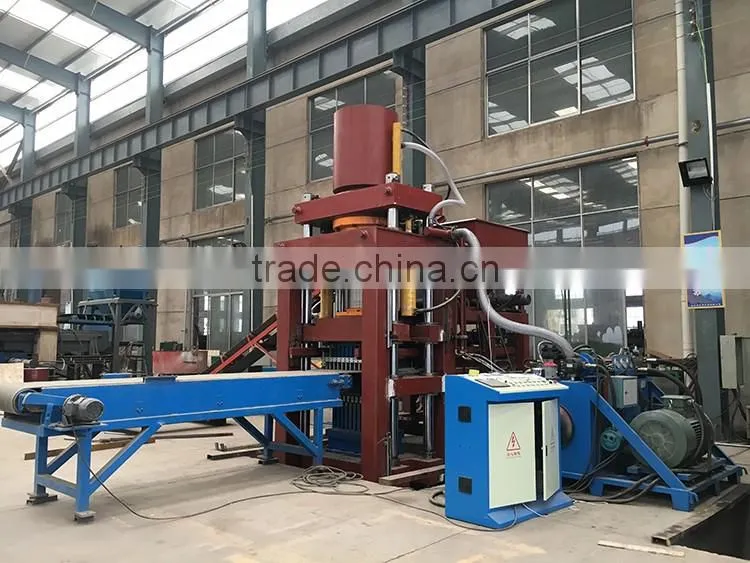

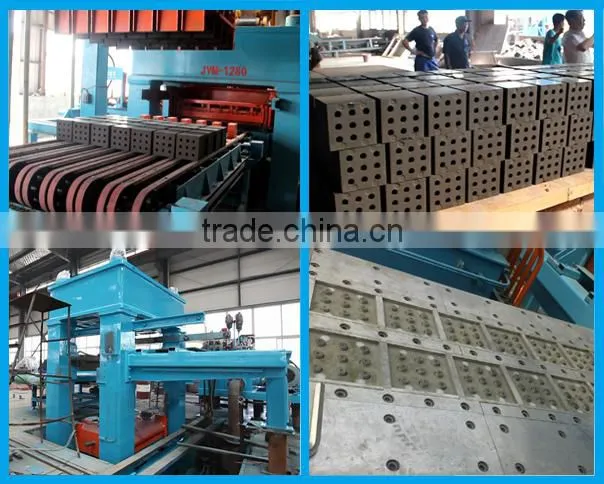

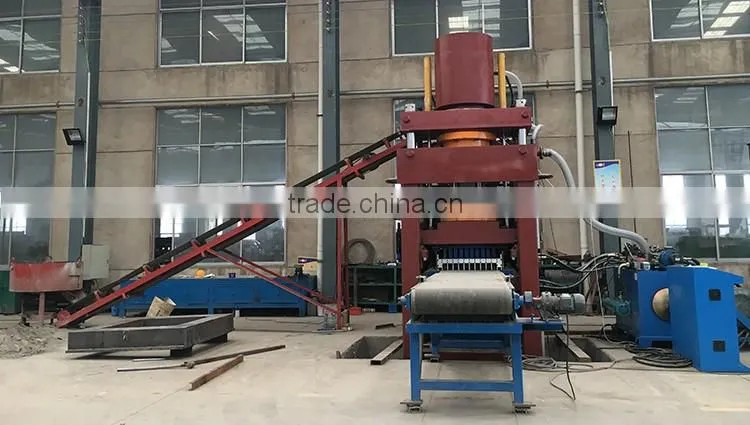

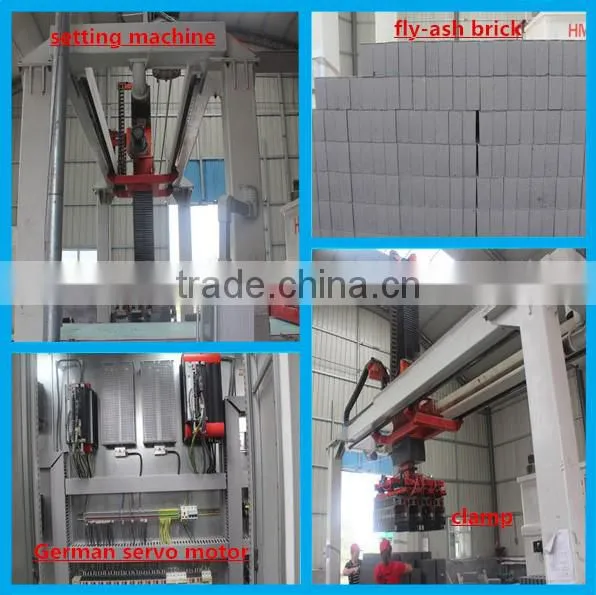

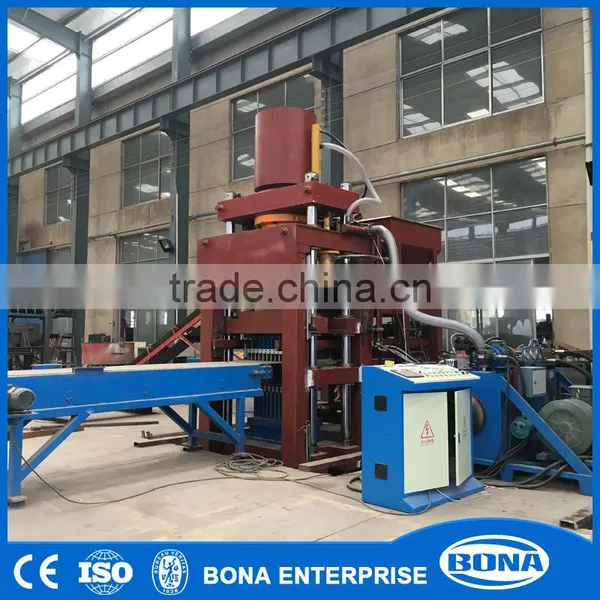

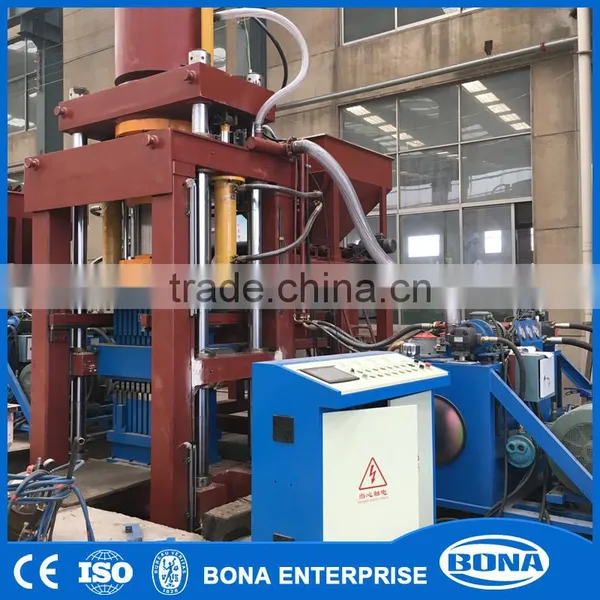

Environment protection economic construction concrete brick making machine
JYM series construction concrete brick making machine is a new type hydraulic and autoclaved brick making machine we newly push which adopts international advanced brick making technology,under domestic brick making operate level and specific condition of different materials.It has advanced forming process, control principle and control mode. Upgraded and optimized points,such as structural layout, pressure, molding blocks, feeding height, exhaust way and so on, lead multi-stage pressure add and multiple exhaust working way.

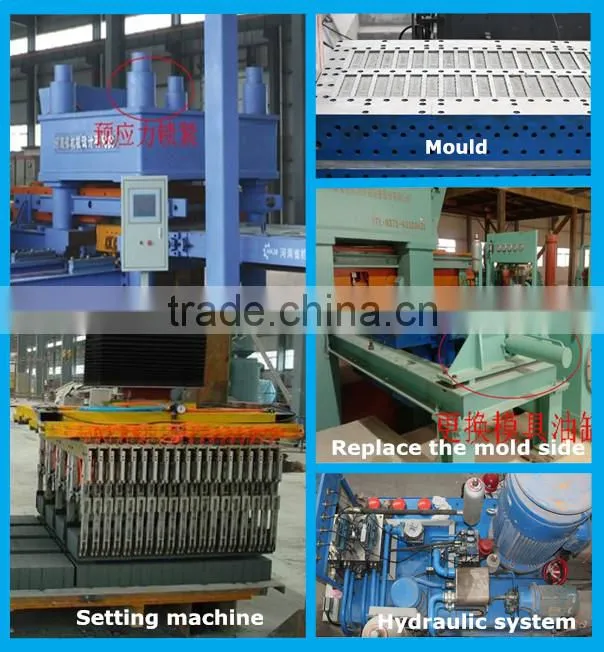

Main features of construction concrete brick making machine
1.This block making machine has three-beam and four column model and electronic control system
control cabinet;
2.The hydraulic system components are imported from abroad like proportional valve and electric control
variable pump;
3.The hydraulic pump station of this block machine adopts compact layout and modular valve block and
main oil pump adopts Germany rexroth electronically controlled variable pump.
4. The Electric control operating system of the brick making machine offers closed-loop control for the
whole production process and electronic components adopt German Siemens S7-300 digital controller;
5.The digital linear displacement sensor are installed in the suppression of oil cylinder and adopts
compound fabric form which is a patented technology of our company;
6.The pressing machine adopts lateral mold changing structure;
7.The host of this brick machine adopts inverted pressing way (from down to up pressure) and the feeding
car handle realizes multifunctional.
Main technical parameter of construction concrete brick making machine:
No. |
equipment/parameter |
Model/parameter |
|
Automatic hydraulic brick making machine |
JYM-600 |
1 |
Max pressure(KN) |
6500 |
2 |
Max filling height(mm) |
≤420 |
3 |
Molding cycle(s) |
13-18 |
4 |
Exhaust times |
3 |
5 |
Finished products specification |
Standard brick:240×115×53 Hollow brick:240×115×90 Hollow block:390×190×190 |
6 |
Mold brick quantity per time(piece) |
26 |
7 |
Mold row |
2 |
8 |
Productivity(piece/hour) |
≥6240 |
9 |
Yield(%) |
100 |
10 |
Mold change time(h) |
1 |
11 |
Total power(kw) |
84.5 |
12 |
Overall size(L×W×H)mm |
3765x2040x5130 |
Model:QTJ4-26 Model:QTJ4-35 Model:QTJ4-45 Model:QT3-20
Capacity:3000-4000pcs/day Capacity:2200-2700pcs/day Capacity:2000-3000pcs/day Capacity: 4000-7200pcs/day
Click here see more Click here see more Click here see more Click here see more
Model:QT4-15 Model:QT4-20 Model:QT5-15 Model:QT6-15
Capacity:7200-9600pcs/day Capacity:5800pcs/day Capacity: 9000-12000pcs/day Capacity:8600-10800pcs/day
Click here see more Click here see more Click here see more Click here see more
Model:JYM600 Model:JYM800 Model:JYM1280
Capacity:43200/day Capacity:67200pcs/day Capacity: 91200pcs/day
Click here see more Click here see more Click here see more
Package terms: Easily damaged construction concrete brick making machine part use sturdy wooden case and cartons packing.
Other parts are in nude, 20GP, 40 HQ standard exporting package, or according to the buyer's request.
Delivery time: 10-15 workdays (in stock); 25-35 workdays (out of stock).
Means of transportation:
1. By sea, Main port: QINGDAO,TIANJIN,SHANGHAI,NINGBO,QUANZHOU,GUANGZHOU,SHENZHEN
2. By rail, Inland port: At mohe port, Fuyuan port, Suifenhe port, Alataw Pass, Pingxiang port.
Our products are exported to America, Australia, Africa and South Asia, mainly to Mongolia, Uzbekistan,
Kazakhstan, Congo, Nigeria, Singapore, Ghana, Russia, Chile, Philippines, Kenya, Armenia, Algeria Libya,etc.
What's more, they have received praise with good quality and excellent after-sale service.
Our services:
1, Design the program of building plant for customers.
2, Provide related drawing of program.
3, On site installation and debugging, and training operators and maintainer of equipment.
4, Free training for workers in our factory.
Our company
Established in 2005, Zhengzhou Bona Enterprise Co., Ltd. is one of the major construction and engineering
machinery manufacturer and exporter in Henan, Our main products are autoclave lightweight fly ash block machine,
concrete batching plants, concrete mixer machineries, tower cranes, road rollers, wheel loaders, forklifts, farm tractors, etc.
We come from the largest manufacturing base of construction machines in Zhengzhou, China, and we've built
firm relationships with our suppliers of materials & components. Thus we can reduce the cost of our products
and ensure the benefits of our customers.
As an ISO9001:2000 certified company, we insist on "innovating, perfect, quality and services", and earn a good
reputation in the worldwide market. Read More...
You are welcome to contact me,if you have any idea about our products.
Note: go our homepage,find more construction concrete brick making machine!!!
