Wholesale factory price construction equipment small hot asphalt mixing plant
LB series asphalt mixing plant includes 12 systems: Cold aggregate batching system; Heating and Drying
System; Lifting System;Screening System; Weighing System; Mixing System; Dust Filter System; Powder Supply System;
Asphalt Supply System, Finished Products Storage System; Air Circuit System and Electrical Control System.

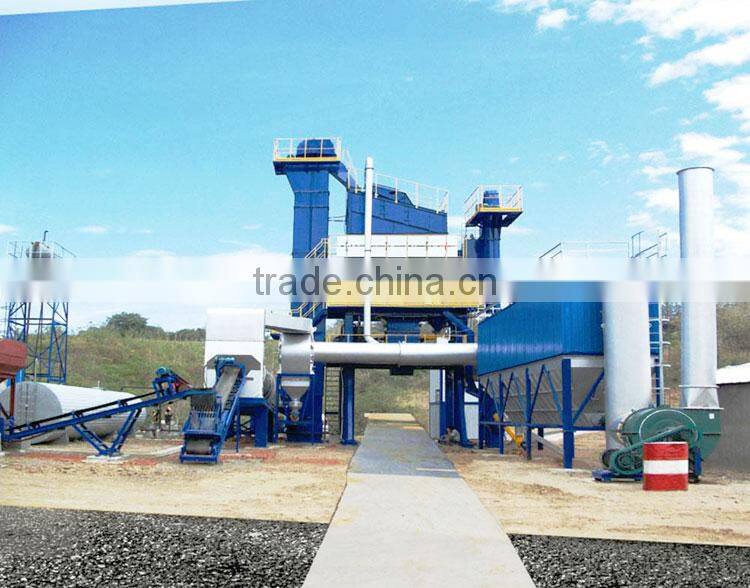

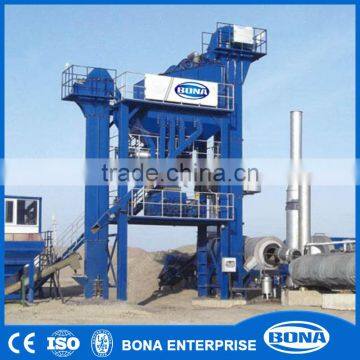

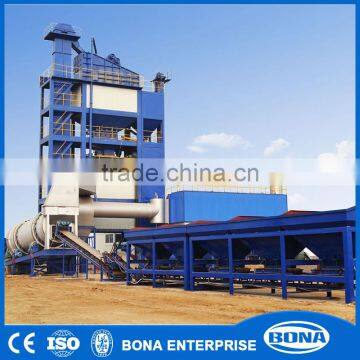

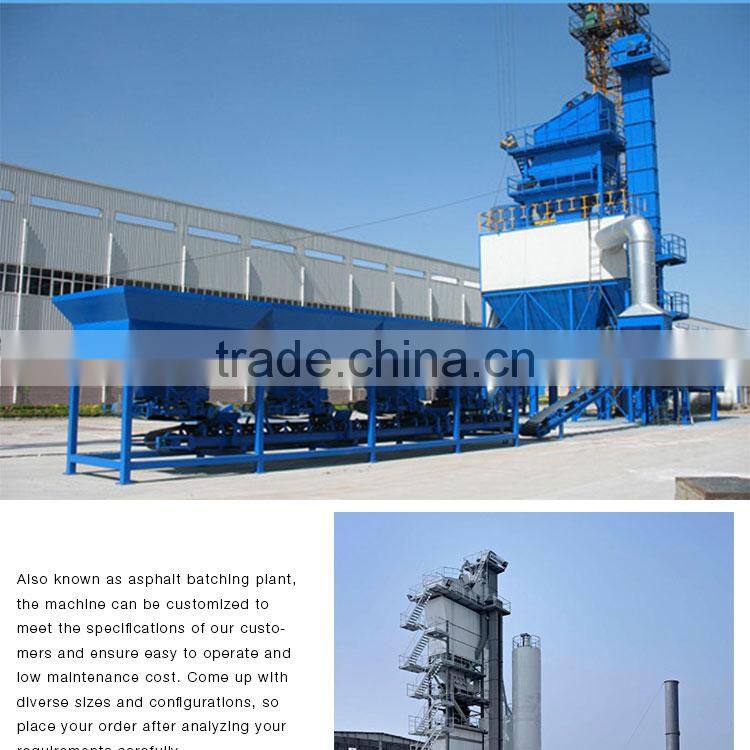

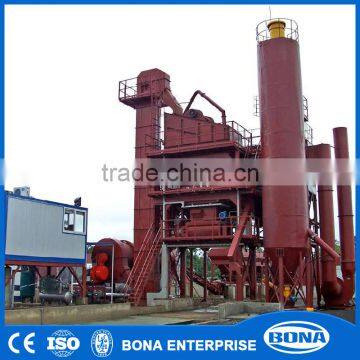

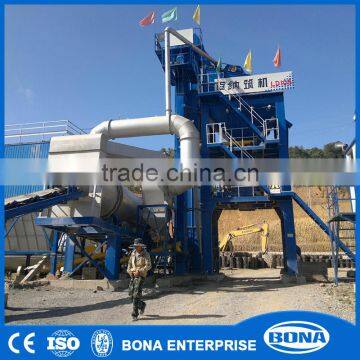

LB1500 asphalt mixing plant is a middle-type stationary batch asphalt mixing plant, widely used in road construction,
like expressway or highway build and maintenance.
Senior engineers to ensure quality and durability.
- User-friendly control
- Low manpower involvement
- Fast and easy installation and start up
- Durable and reliable
- Low maintenance cost
- Excellent fuel efficiency
| LB Asphalt Mixing Plant Technical Specification | |||||||
| Model | LB750 | LB1000 | LB1200 | LB1500 | LB2000 | LB2500 | LB3000 |
| Rated capacity(t/h) | 45-60 | 60-90 | 90-105 | 110-125 | 140-175 | 180-200 | 200-240 |
| Mixer capacity(kg) | 800 | 1100 | 1250 | 1600 | 2200 | 2500 | 3000 |
| Cold hopper(m3) | 4*6.5 | 4*6.5 | 4*6.5 | 4*8 | 5*8 | 5*8 | 5*10 |
| Drying drum(Diameter*Length) | 1.2*5.2 | 1.5*6.6 | 1.8*8.0 | 1.8*8.0 | 2.2*9.0 | 2.6*9.5 | 2.6*9.5 |
| Bag filtering area(m2) | 230 | 420 | 420 | 450 | 560 | 620 | 917 |
| Vibrating screen | 4 | 4 | 4 | 4 | 5 | 5 | 5 |
| Bitumen heating boiler(*104Kcal/h) | 15 | 30 | 30 | 40 | 50 | 50 | 75 |
| Bitumen tank Capacity(L) | 1*30,000 | 1*40,000 | 1*40,000 | 2*40,000 | 3*40,000 | 3*40,000 | 5*40,000 |
| Hot mixture storage silo(ton) | 15 | 30 | 30 | 30 | 30 | 70 | 80 |
| Control system | PLC+ colorized touching screen/computer | ||||||
| 1 | The cold material ration system | 5 | Measuring system | 9 | Asphalt feeding system |
| 2 | Dry heating system | 6 | Mixing system | 10 | gas path system |
| 3 | Hoisting system | 7 | Dust pelletizing system | 11 | electrical control system |
| 4 | Screening system | 8 | Filler feeding system |
The optimal design of lifting blades repeatedly (patent no. 200520031574.1), and a new aluminum foil coated insulating layer, effectively reduce the heat losses in drying drum, save fuel consumption, improve the thermal efficiency Drying cylinder combustion zone adopts wear-resisting, heat-resisting material, long service life |
Chain bucket elevator with spring tensioner automatically, smooth running. High strength and durable screen mesh; segmented mesh layout, 270°C screen opening that is convenient to replace new mesh. Complete seal of whole body, with negative pressure design inside to avoid dust emission. |
hot aggregate use rough and accurate weighing, combined with automatic impulse compensation program, which will guarantee high weighing accuracy. Advanced computer automatic compensation function, which will ensure much more accurate weighing control system. |
|
modular and integrated design make plant transportation and installation convenient, set with enough space for maintenance and safety device, running under the micro negative pressure circumstance will prevent filler floating. Full circulating and three dimensional mixing, uniform and efficient; equipped with safety devices; mixing paddle and liner board are made of wear-resistant cast alloy with long service life. |
multi-stage dust collection, different size of filler will be collected and recycle which will improve the utilization of small hot asphalt mixing plant Parts. Bag house filter adopted DUPONT NOMEX filter bags, waterproof and oil-filter; high pressure compressed air impulse blowing system that will be much more efficient to clean dust, which will meet the environmental emission standards. |
container control room will be convenient for transport, double layer design for heat reservation and wide vision, annexed ergonomics user-friendly make the operator work easily in complex producing site. Optional: Automatic/Semi-automatic/Manual mode; easy to be understood and learned for operator. Optional: PC or Color touching screen; equipped with functions of production formula and production data storing. |
container type asphalt plant details show:
Package terms: Easily damaged part use sturdy wooden case and cartons packing.
Other parts are in nude, 20GP, 40 HQ standard exporting package, or according to the buyer's request.
Delivery time: 10-15 workdays (in stock); 25-35 workdays (out of stock).
Means of transportation:
1. By sea, Main port: Qingdao,Tianjin,Shanghai,Dalian,Quanzhou,Guangzhou,Shenzhen port.
2. By rail, Inland port: At mohe port, Fuyuan port, Suifenhe port, Alataw Pass, Pingxiang port.
1. Provide Turn-Key Solutions, especially technical consultation service,
2. Provide Installation, debug, and provide complete technical training.
3. Guarantee: 15 months in common using condition (except damageable and artificial destruction)
4. Repair: 1) We provide technical guidance all life.
2) Within the guarantee period, we will offer spare parts free of charge
If spare part is broken and the problems caused by our quality. we will repair in free of charge.

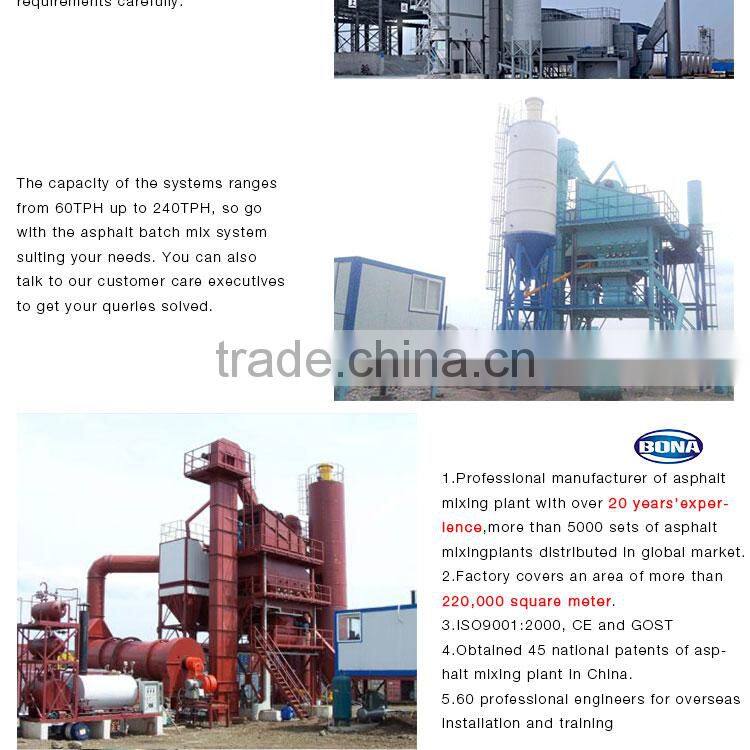

1.Professional manufacturer of asphalt mixing plant with over 20 years’experience,more than 5000 sets of Asphalt Mixer Spare Parts in global market.
2.Factory covers an area of more than 220,000 square meter.
3.ISO9001:2000, CE and GOST
4.Obtained 45 national patents of asphalt mixing plant in China.
5.60 professional engineers for overseas installation and training
6.Customized small hot asphalt mixing plant for sale is welcome
