China supplier factory price wood pellet mill for rice husk sawdust with high output
China supplier factory price wood pellet mill for rice husk sawdust with high output :
MZLH series is a kind of biomass pellet machine. MZLH series biomass pellet machine can process various of raw materials such as corn straws, wheat straws, rice straws, peanut shells, corn cob, cotton stalks, soybean straws, weeds, napier grass, sawdust and grain husks. After they are crushed, compressed and shaped, we get final finished pellets. As a replacement of firewood, raw coal, fuel oil and liquefied gass, it is widely used for heating, life stoves, water boiler, industrial boiler and biomass power plants.
Features and Advantages
a. Main transmission of the machine adopts the high precision gear transmission. The ring die uses the quick release clamp type which improves about 20% efficiency compared with that of belt driven.
b. The whole machine uses the high quality imported bearing and oil seal, making the transmission efficient, stable and low noise.
c. Internationally advanced level compensatory type snake shape spring coupler characterizes with novel and compact structure, safety and low malfunction.
d. The specifically made feeding structure makes the raw materials get into the machine in an even and reliable way. It is designed especially for the pelletizing of the light materials with the proportion of 0.3-0.6g/cm3.
e. The whole machine equips with overload protection device which fully take into the consideration of the protection to the main machine in the process of making pellets.
f. The rotating speed of the feed auger can be adjusted which can be suitable for all kinds of capacity requirements.
g. Alloy steel ring die is manufactured by adopting internationally advanced equipment and technology. Its has long service life, the finished pellets are smooth with better quality.
h. This machine is equipped with die hoisting device. Users can change the die easily.
Technical Parameters
Type |
Main Power |
Feeder Motor |
Forced Feeding Motor |
Ring Die Diameter |
Production Capacity |
Noise |
Dimension |
MZLH420 |
90kw |
2.2kw |
0.75kw |
420mm |
1-1.5t/h 6-8mm |
≤80dB (A) |
2.9*1.3*2.3m |
MZLH508-1 |
110kw |
2.2kw |
1.5kw |
508mm |
1.2-1.5t/h 6-8mm |
≤80dB (A) |
3.05*1.35*2.45m |
MZLH508-2 |
132 |
2.2kw |
1.5kw |
508mm |
1.4-1.8t/h 6-8mm |
≤80dB (A) |
3.05*1.35*2.45m |
MZLH508-3 |
160 |
2.2kw |
1.5kw |
508mm |
1.5-2t/h 6-8mm |
≤80dB (A) |
3.05*1.35*2.45m |

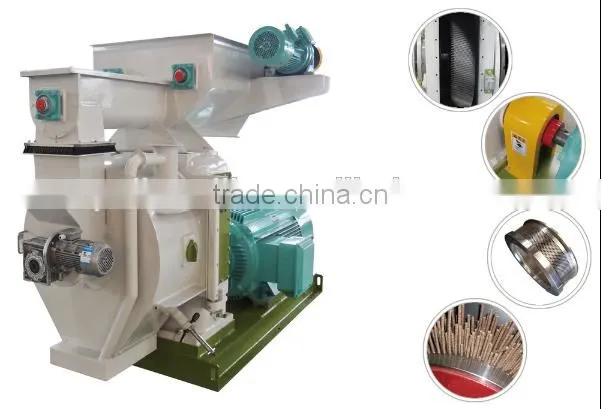

Details of Biomass Ring Die Pellet Mill
Product Application
Biofuel pellets are usually used for civil heating and living energy, pellet stove, pellet boiler, power plant, bath center and biomass industrial boiler.
Related productions
Except MZLH series grass pellet machine, there are other grass pellet machines to choose.
Raw materials:
Raw materials include wood sawdust, wood shavings, wood chips, wood logs, straw, hard wood, rice husk, sunflower husk, peanut shell, branch, trunk, bark and other wood waste; a variety of crop stalk; rubber; cement, ash and other chemical materials.
Sample of wood pellets
Production line
MZLH series pellet machine palys an important role in wood pellet production line. They are usually working together with hammer mills, mixers and some auxiliary equipments in wood pellet production line.
Products Certification

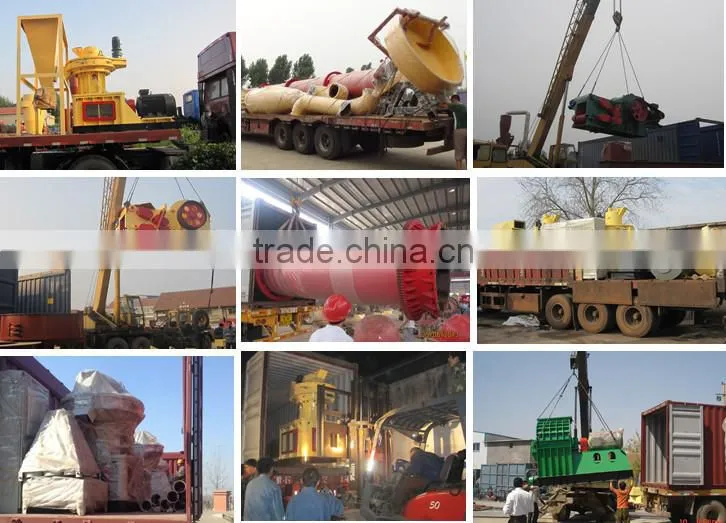

China supplier factory price wood pellet mill for rice husk sawdust with high output is inner packed by stretch film, outer packed by venner case. This will keed the machines in good condition when shipping.
Shandong Double Crane Machinery Manufacture Co., Ltd. was established in 2009 and is located in Leling city, Shandong Province. We are dedicated to the development and production of feed equipment, biomass energy equipment and organic fertilizer equipment. We have more than 150 skillful employees, there are about 30 of them are design engineers. We had many patents in the industry and our products are popular with customers in many countries. With rapid development, we have passed CE, SGS and ISO9001 certifications and won many honorary titles. To know more about what we can do for you, contact us anytime. We are looking forward to establishing a good and long-term business relationship with you.
Trade show
Our Customer
Factory
1.Technical support online service provided.
2.Technical files service provided,
3.On-site training service provided.
4.Spare parts replacement and repair service provided.
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 10 years of experience in this industry and be able to offer you the best price.
2. Q: How can I get to your company?
A: You can get a flight to Jinan Airport. We are just about 1hours away from Jinan Airport.
3. Q: How long is your warranty period?
A: One Year (Calculated from the equipment arrives the customer’s side.).
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Have you sold your products to Europe?
A: Yes, We have designed and installed more than 1000 turnkey pellet lines. Many of our customers are from Europe, including Latvia, France, Greece, Romania, Lithuania, etc.
1. Which kinds of machines could you want?
2. What are you going to use this machine for?
3. What's the voltage and output of machines do you prefer?
Any product interests you or you would like to know more details, please feel free to contact me!
