New direct driven rice husk pellet making machine for farm equipment
MZLH series is a kind of rice husk pellet machine. MZLH series rice husk pellet machine can process various of raw materials such as corn straws, wheat straws, rice straws, peanut shells, corn cob, cotton stalks, soybean straws, weeds, napier grass, sawdust and grain husks. After they are crushed, compressed and shaped, we get final finished pellets. As a replacement of firewood, raw coal, fuel oil and liquefied gass, it is widely used for heating, life stoves, water boiler, industrial boiler and biomass power plants.

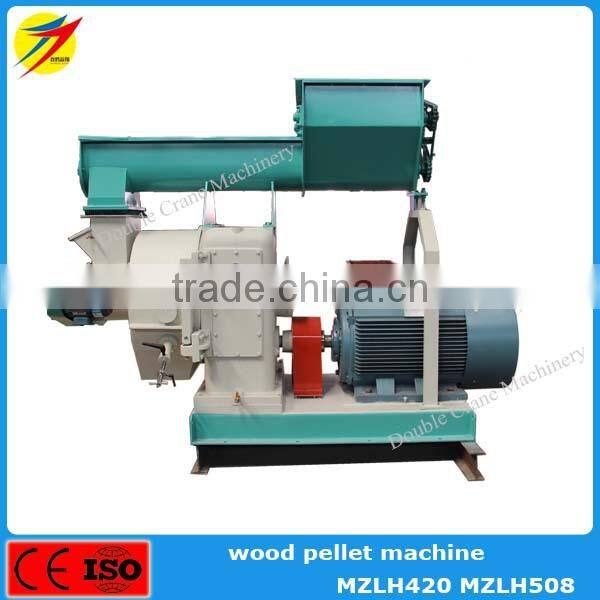

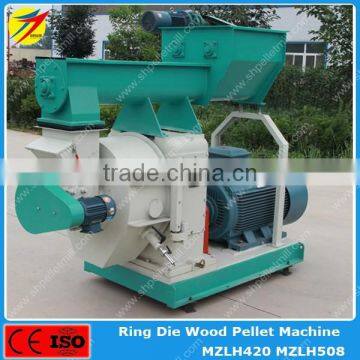

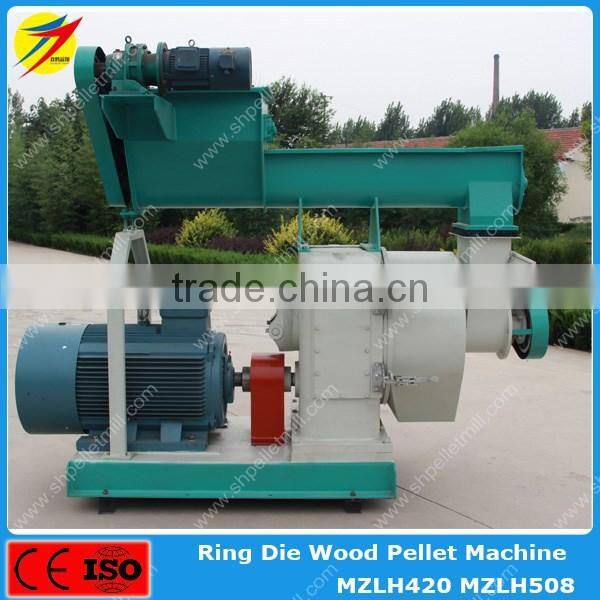

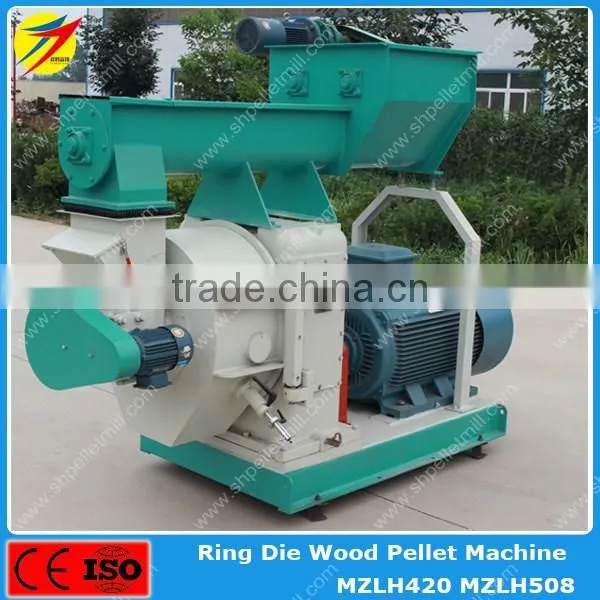

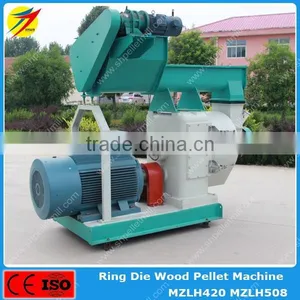

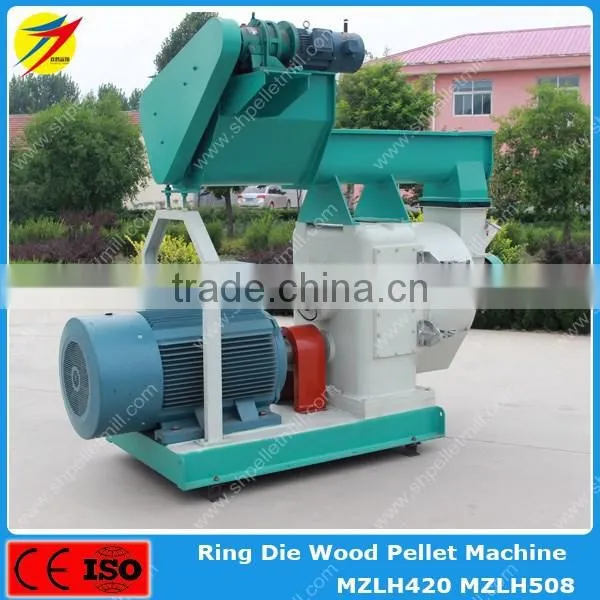

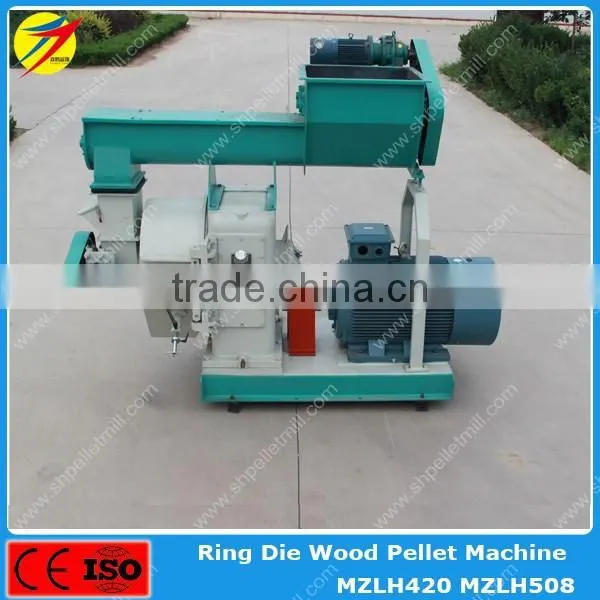

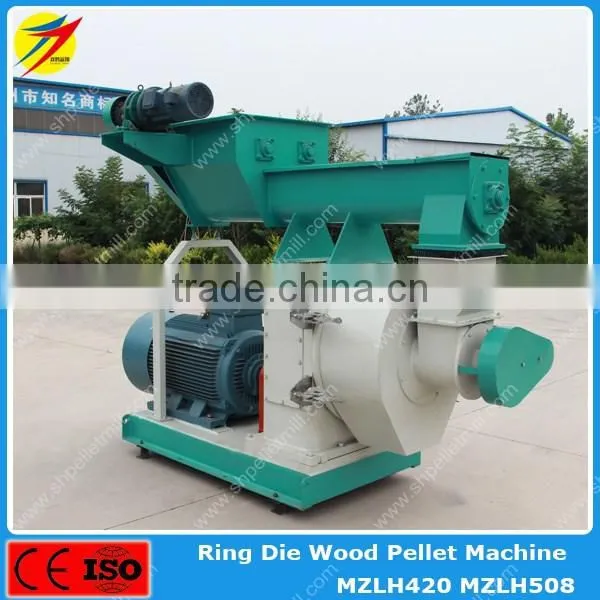

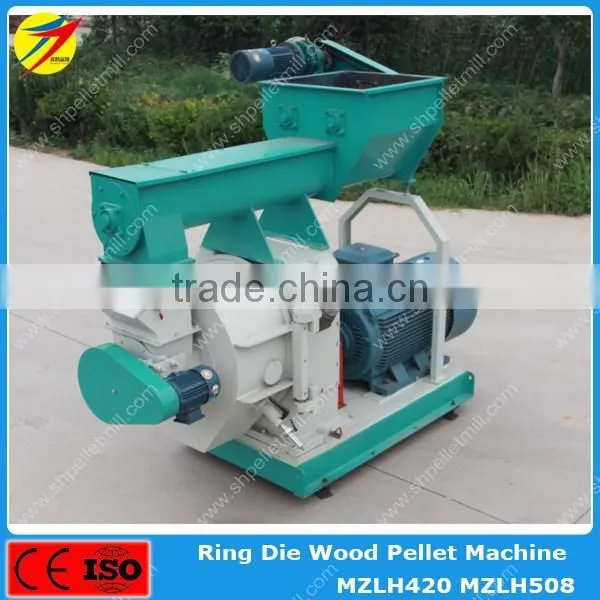

MZLH series rice husk pellet making machine
1. Features & Advantages
a. Main transmission of the machine adopts the high precision gear transmission. The ring die uses the quick release clamp type which improves about 20% efficiency compared with that of belt driven.
b. The whole machine uses the high quality imported bearing and oil seal, making the transmission efficient, stable and low noise.
c. Internationally advanced level compensatory type snake shape spring coupler characterizes with novel and compact structure, safety and low malfunction.
d. The specifically made feeding structure makes the raw materials get into the machine in an even and reliable way. It is designed especially for the pelletizing of the light materials with the proportion of 0.3-0.6g/cm3.
e. The whole machine equips with overload protection device which fully take into the consideration of the protection to the main machine in the process of making pellets.
f. The rotating speed of the feed auger can be adjusted which can be suitable for all kinds of capacity requirements.
g. Alloy steel ring die is manufactured by adopting internationally advanced equipment and technology. Its has long service life, the finished pellets are smooth with better quality.
h. This machine is equipped with die hoisting device. Users can change the die easily.
2. Technical Parameters
Type |
Main Power |
Feeder Motor |
Forced Feeding Motor |
Ring Die Diameter |
Production Capacity |
Noise |
Dimension |
MZLH420 |
90kw |
2.2kw |
0.75kw |
420mm |
1-1.5t/h 6-8mm |
≤80dB (A) |
2.9*1.3*2.3m |
MZLH508-1 |
110kw |
2.2kw |
1.5kw |
508mm |
1.2-1.5t/h 6-8mm |
≤80dB (A) |
3.05*1.35*2.45m |
MZLH508-2 |
132 |
2.2kw |
1.5kw |
508mm |
1.4-1.8t/h 6-8mm |
≤80dB (A) |
3.05*1.35*2.45m |
MZLH508-3 |
160 |
2.2kw |
1.5kw |
508mm |
1.5-2t/h 6-8mm |
≤80dB (A) |
3.05*1.35*2.45m |
3. Product Application

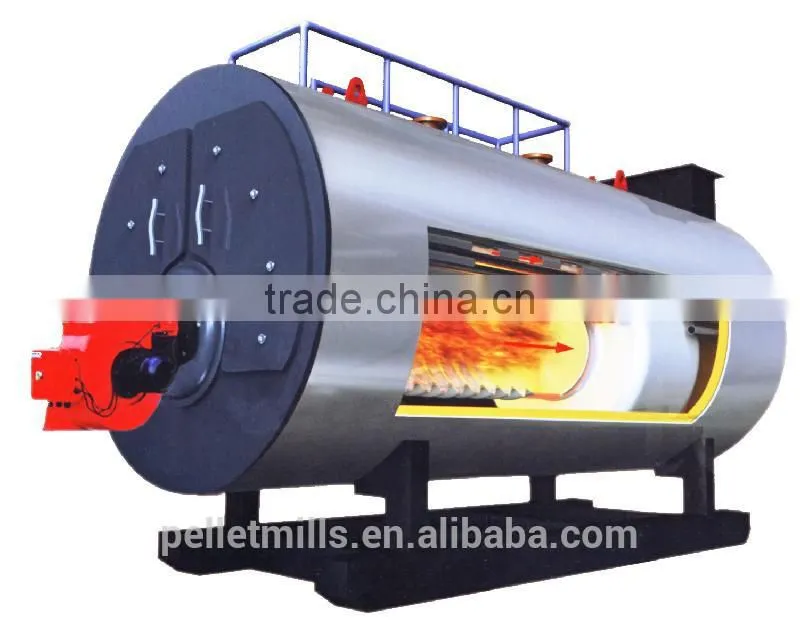

Biofuel pellets are usually used for civil heating and living energy, pellet stove, pellet boiler, power plant, bath center and biomass industrial boiler.
4. Raw Materials
Raw materials include wood sawdust, wood shavings, wood chips, wood logs, straw, hard wood, rice husk, sunflower husk, peanut shell, branch, trunk, bark and other wood waste; a variety of crop stalk; rubber; cement, ash and other chemical materials.
5. Finished pellets show
6. Related productions
Except MZLH series rice husk pellet making machine, there are other pellet machines to choose.
MZLH series pellet machines palys an important role in pellet production line. They are usually working together with hammer mills, mixers and some auxiliary equipments in pellet production line.
Pellet mills, hammer mills and mixers produced by Shandong Double Crane Machinery Manufacturer Co., Ltd. are mostly certified by CE, ISO and SGS.
Double Crane are able to choose a more adapted packing ways for you such as wooden case and iron case. Pls kindly tell us your idea, we will immediately design a better project with reasonable shipping charges and reliable packing to suit to your requirements.
a. Technical support online service provided.
b. Technical files service provided.
c. On-site training service provided.
d. Spare parts replacement and repair service provided.
Shandong Double Crane Mchinery Manufacturer Co., Ltd. was established in 2005. And the factory is located in Leling city, Shandong province and occupies over 60,000 square meters. There are more than 150 workers, 30 mechanical designers and experts and 3 sales team.
Adhering to the concept of green, eco-friendly environment and humanisum, by learning domestic and foreigh advancedd technology, we are dedicated to R&D, production and sale of feed machines, biomass energy machines nd organic fertilizer machines. Among them, hammer mills and feed pellet machine are both certified by SGS, CE and ISO 9001. Upon to now, our products have been already exported into more than 30 countries and regions in the world. They have been enjoyed a high reputation by clients with high quality, reliable service and nice performance.
Our factory and business are rapidly expanding in 2015. We sincerely hope to establish a new cooperative relationship with clients in the world. If you are such a client and interested in feed machines, pls don't hesitate and contact us soon.
Welcome to visit our website: .
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 10 years of experience in this industry and be able to offer you the best price.
2. Q: How can I get to your company?
A: You can get a flight to Jinan Airport. We are just about 1 hours away from Jinan Airport.
3. Q: How long is your warranty period?
A: One Year (Calculated from the equipment arrives the customer’s side.).
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Have you sold your products to Europe?
A: Yes, We have designed and installed more than 1000 turnkey pellet lines. Many of our customers are from Europe, including Latvia, France, Greece, Romania, Lithuania, etc.
