Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves

Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves thumbnail-1
Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves photo-1
US$ 1 - 1,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Stop
Pressure:
Other, Medium Pressure, 10Kgf
Contact Supplier Request Quote Chat Now
Chongqing B.M. Import & Export Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Stop
Pressure Other, Medium Pressure, 10Kgf
Power Manual
Material Other, Casting, Cast steel
Temperature of Media Normal Temperature
Media Other, fresh water, sea water,air ,crude, oil.
Port Size JIS F7319
Place of Origin Chongqing, China
Model Number JIS F7319
Brand Name BM
Application Other, Maritime, Industry, etc

Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves

Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves

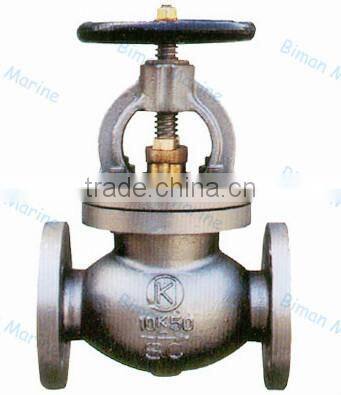

Marine Cast Steel Globe Valve



The stem axis and the seat sealing surface is vertical, and it is a very reliable valve to cut off and control.

1. Globe valve's structure is more simple than gate valve's, and it is more convenient in manufacturing and maintenance.

2. Sealing surface is not easy to wear and scratch, and it has a good sealing surface and long service life.

3. When opening and closing, disc's route is small, so the height of globe valve is lower than gate valve, but the length of structure is longer than gate valve's.



  • Manufacturing standards: API, ANSI, BS, DIN, JIS
  • Size range: from 1/2 inch to 24 inches (DN15mm - DN600mm)
  • Pressure: from ANSI class 150 to 2500 (PN1.6 - 42MPa)
  • Applicable temperature: -196 - 593 deg. C
  • Connection: flanged, butt-welded
  • Body materials: carbon steel, alloy steel, stainless steel WCB, LCB, WC1, WC6, WC9, C5, C12, CF3, CF3M, CF8, CF8M, MONEL, etc.

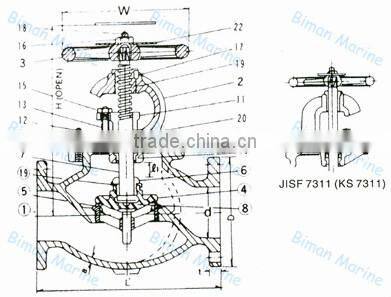

Specifications about Marine Cast Steel Globe Valve/ Cast Steel Globe Valve



MARINE CAST STEEL GLOBE VALVES

d (mm)

50

65

80

100

125

150

200

250

300

L1 (mm)

220

270

300

350

420

490

570

740

840

a (mm)

8

9

9

11

12

13

15

16

17

H (mm)

270

300

310

355

415

470

565

645

735

W (mm)

160

200

200

250

280

315

355

400

450

€ 1 (mm)

17

22

27

33

42

50

67

83

100

Weight (kg)

17.9

26

29.8

44.7

70.3

96.4

159

257

370



Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves



Marine Cast Steel Globe Valve/ Cast Steel Globe Valve

Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe ValvesMarine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves

Other Related Valves:



Valves:  Butterfly Valve ; Globe Valve ;  Gate Valve ; Check Valve ; Angle Valve



Water Pump: Centrifugal Pump; Vortex Pump ; Jet Pump ; Bilge Pump



Sewage Pump: Submersible Sewage Pump;  Sewage Crushing Pump



Fire Pump: Portable Fire Pump; Fixed Fire Pump ; Diesel Emergency Fire Pump



Oil Pump: Gear Oil Pump; Hot Oil Pump; Self-priming centrifugal oil pump



 Other Biman Valves

Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves

Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves

Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves

Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves



Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves

Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves



Marine API, ANSI, BS, DIN, JIS Standart Cast Steel Globe Valves

Why Choose BM



A. Excellent service before purchasing
B.M know what the best cost-effective products are. According to clients’ circumstances, we will offer most suitable products for them.

B. Guaranteed quality
Most products which B.M offered are with high quality and also provide warranty to security benefits.

C. Rich experience and Customized Products
B.M has enormous resources of various marine equipment. All of our products are customized.
We can offer products according to your detail equipment and drawings.



FAQ



How to order Valves from Biman?



  1. Please tell us the Size, Pressure and Quantity and other request you need.
  2. If you have the certificate requirements, please let me know.
  3. We'll make quotation for you. After your confirmation, PI will send to you.
  4. We'll arrange the order for you after receiving your payment
  5. After the goods finished, we send the goods to you and tell you the tracking number.
