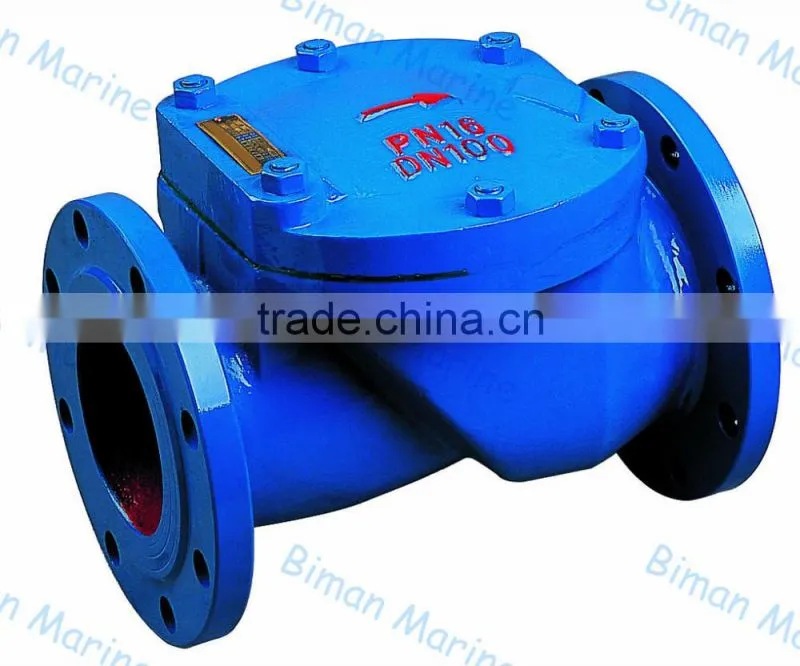

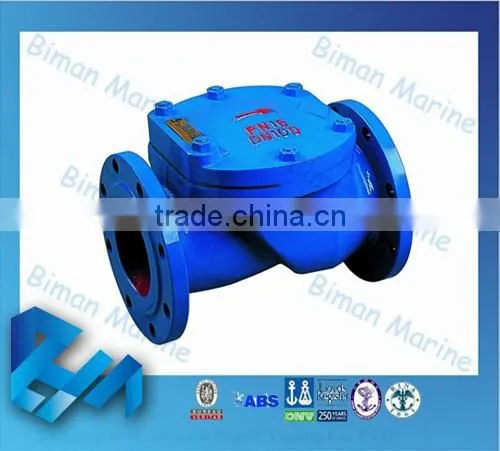

Marine PN16/ DN100 Swing Check Valve
Ductile Iron Swing Check Valve/ Marine PN16/ DN100 Swing Check Valve :
1. Connection Form: Flanged type
2. Design Standard: API594, ASME B16.34, API 6D, JISB2074-JISB2084, BS1868 ,MSS SP-67, MSS SP-163, API609, EN593, GB/T 12235,EN12334, GB/T13932,BS EN 1092-2, BS EN 12334, BS EN 1074-3
3. Face to Face Dimension: ASME B16.10, API 6D, JISB2002, DIN3202, EN558, API609, ISO5752, BS5155, API594, GB/T 12221, EN588
4. Flange Drilling: ANSI B16.1, BS4504, JIS B2212/2213, BS 10 , ASME B16.5, API605, MSS SP-44,GB/T 9113, ISO7005-2, EN1092, DIN2501
5. Test: API598, API 6D, JISB2003, BS 6755, GB/T 13927, EN12266
6. Coating: Fusion-bonded epoxy 200-250 microns inside and outside. Or coating as customers' requirement.
7. Our Certificate: ISO9001:2000, ISO 14000, TS, CE, COC

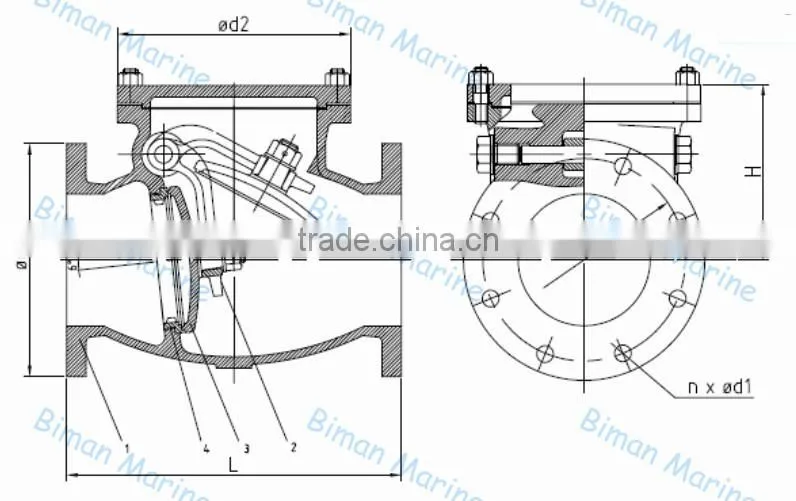

Material for Check Valve:
Item |
Part Name |
Materials |
1 |
Body |
DI, A216WCB, SS316, SS304, SS316L, CF8C, Carbon Steel, Duplex Steel, ALLOY,WCB, WC6, WC9, CF8, CF8M, CF3, CF3M |
2 |
Stem |
2cCr13, SS304, SS316 |
3 |
Gasket |
Stainless Steel, 2Cr13, NBR, STL |
4 |
Disc |
A216 WCB, Stainless Steel, WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, EPDM, NBR, EPDM |
5 |
O-Ring |
NBR, EPDM |
6 |
Bonnet |
Ductile Iron QT450-10, ASTM-A-536, GGG500-7 |
Specifications about Marine Ductile Iron Swing Check Valve Flap Check Valve
SIZE (DN) |
FACE TO FACE |
FLANGE (mm) |
HEIGHT |
||
mm |
mm |
DIA |
PCD |
BOLT HOLE |
mm |
15 |
60 |
90 |
70 |
4-15 |
76 |
20 |
70 |
100 |
75 |
4-15 |
93 |
25 |
80 |
125 |
90 |
1-19 |
104 |
32 |
100 |
135 |
100 |
4-19 |
130 |
40 |
100 |
140 |
105 |
4-19 |
130 |
50 |
120 |
155 |
120 |
4-19 |
175 |
65 |
140 |
175 |
140 |
4-19 |
183 |
80 |
160 |
185 |
150 |
8-19 |
215 |
100 |
175 |
210 |
175 |
8-19 |
260 |
Marine Ductile Iron PN6/ DN100 Swing Check Valve / Marine PN16/ DN100 Swing Check Valve
Other Related Valves:
Valves: Butterfly Valve ; Globe Valve ; Gate Valve ; Check Valve ; Angle Valve
Water Pump: Centrifugal Pump; Vortex Pump ; Jet Pump ; Bilge Pump
Sewage Pump: Submersible Sewage Pump; Sewage Crushing Pump
Fire Pump: Portable Fire Pump; Fixed Fire Pump ; Diesel Emergency Fire Pump
Oil Pump: Gear Oil Pump; Hot Oil Pump; Self-priming centrifugal oil pump
Other Biman Valves
Why Choose BM
A. Excellent service before purchasing
B.M know what the best cost-effective products are. According to clients’ circumstances, we will offer most suitable products for them.
B. Guaranteed quality
Most products which B.M offered are with high quality and also provide warranty to security benefits.
C. Rich experience and Customized Products
B.M has enormous resources of various marine equipment. All of our products are customized.
We can offer products according to your detail equipment and drawings.
FAQ
How to order Valves from Biman?
- Please tell us the Size, Pressure and Quantity and other request you need.
- If you have the certificate requirements, please let me know.
- We'll make quotation for you. After your confirmation, PI will send to you.
- We'll arrange the order for you after receiving your payment
- After the goods finished, we send the goods to you and tell you the tracking number.
